Preperation before surgery
18 M320 Ref. 10734261 / Version 03 M320 Ref. 10734261 / Version 03 19

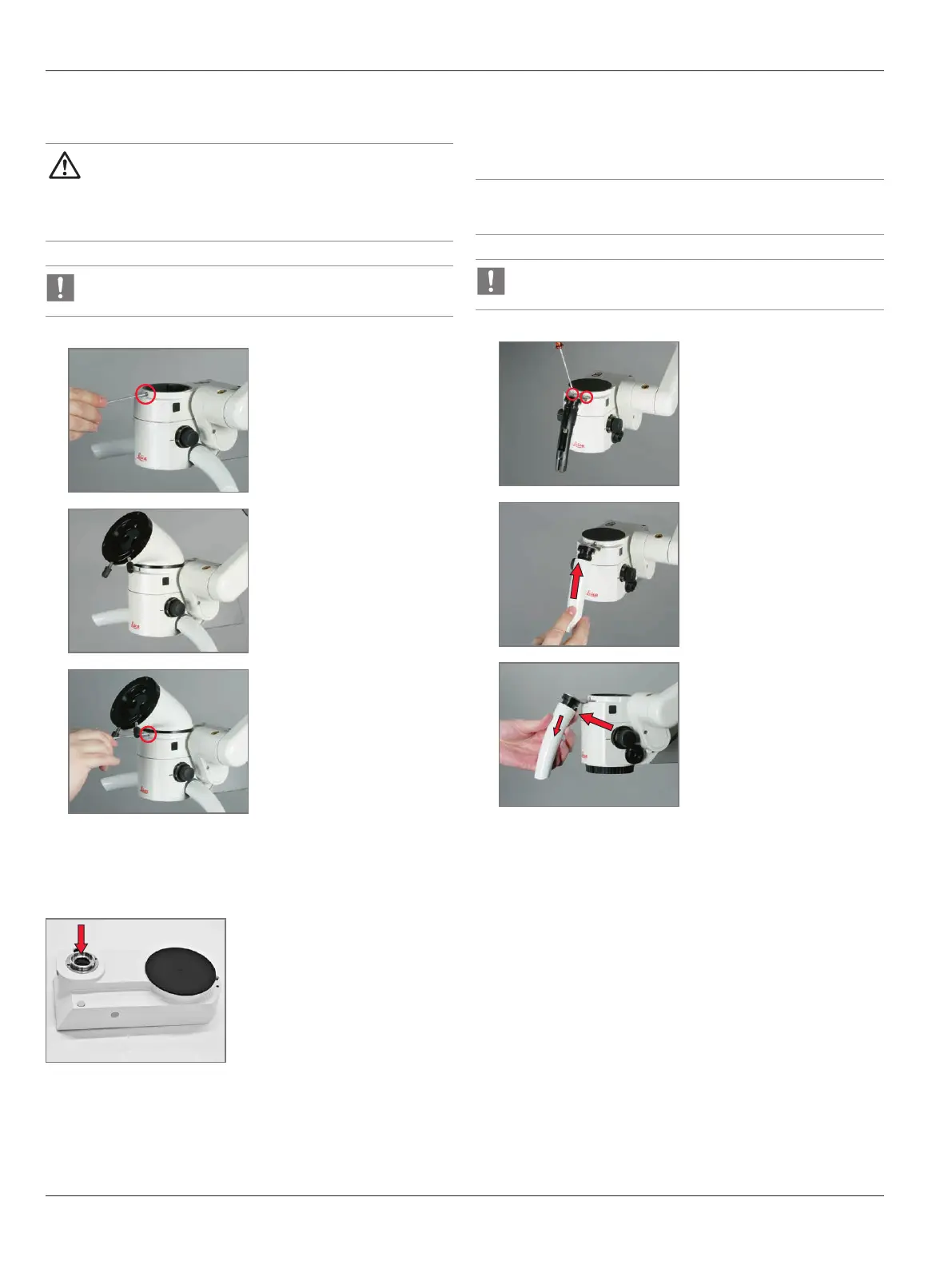

7.2 Installing the accessories
CAUTION
Risk of injury from downward movement of the swing arm!
X
Before installing accessories, tighten the articulation
brakes, see 7.1, "Transportation"
Installing the accessories, for example, ErgonOptic Dent.
Install any other accessories in a similar manner.
1
X
Unscrew the clamping
screw.
2
X
Push the accessory into the
dovetail interface.
3
X
Tighten the clamping screw.
7.3 Documentation output
C-mount port for commercially
available video camera
7.4 Handles
7.4.1 Installing and removing the front handle
NOTE
Install the front handle before the rest of the accessories
Gray handle sleeves are steam- or gas-sterilizable.
White handle sleeves can be disinfected.
1
X
Screw on the handle sleeve
holder.
2
X
Insert until the handle
sleeve clicks into place.
3
X
Push the knob and release
the handle sleeve.
