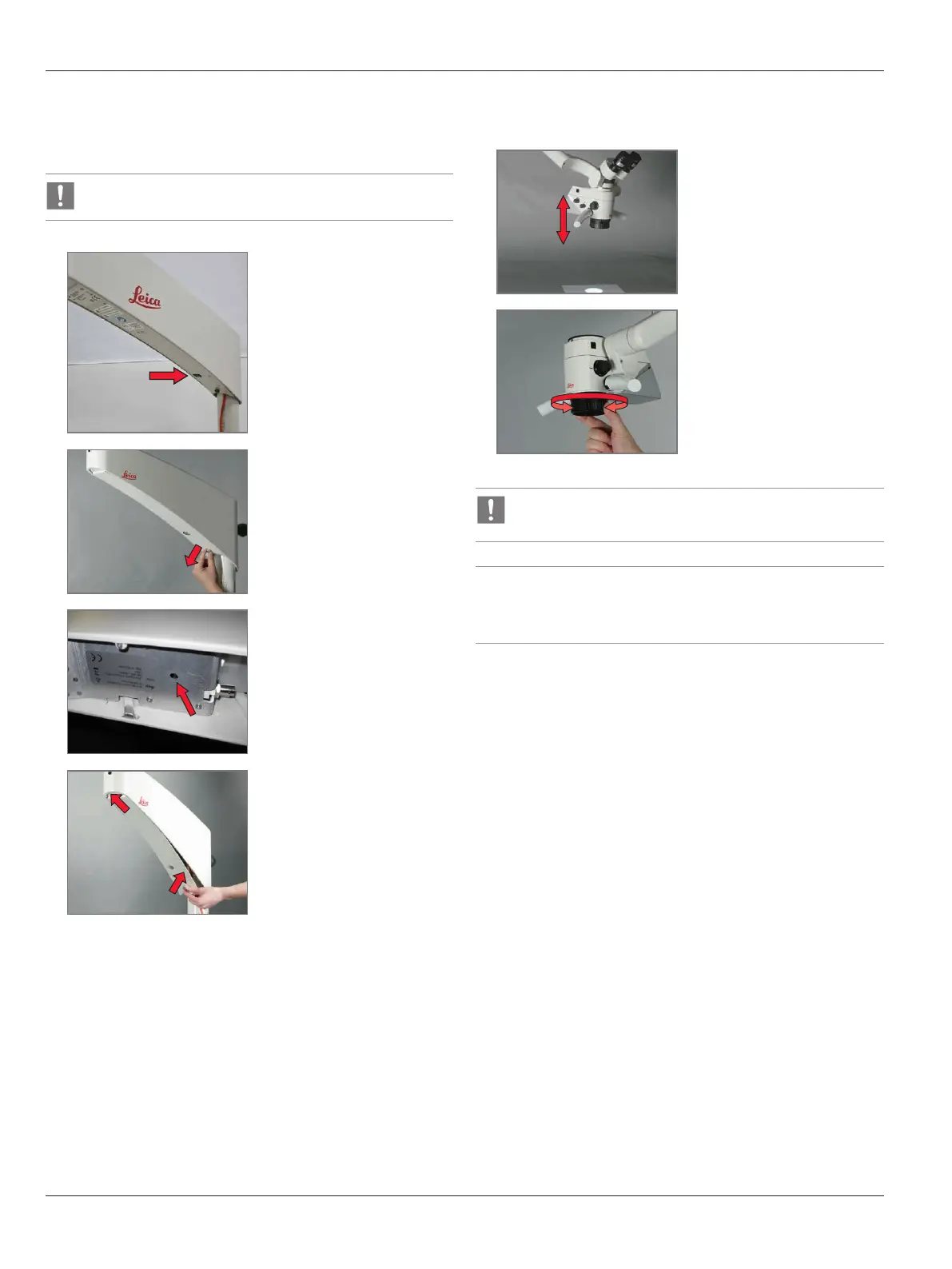

8.2 Adjusting the design LED
illuminator
There are five different dimming levels.
1
X
Switch on the main switch.
2
X
Remove cover of horizontal
arm.
3
X
Using a ball-point pen or
similar object, press the
switch until the desired
dimming level is reached.
4
X
Screw in the cover of the
horizontal arm and tighten
it.
8.3 Adjusting the working distance
1
X
Coarse focus by raising and
lowering the microscope.
2
X
Fine focus via optional fine
focusing objective.
X
If the fine focus objective fails, adjust the focus
manually by moving the optics carrier up and down.
NOTE
Manual emergency functions are available for focus.
X
Brakes could be overcome with muscle power.
