6. Assembling the Microscope
1
2

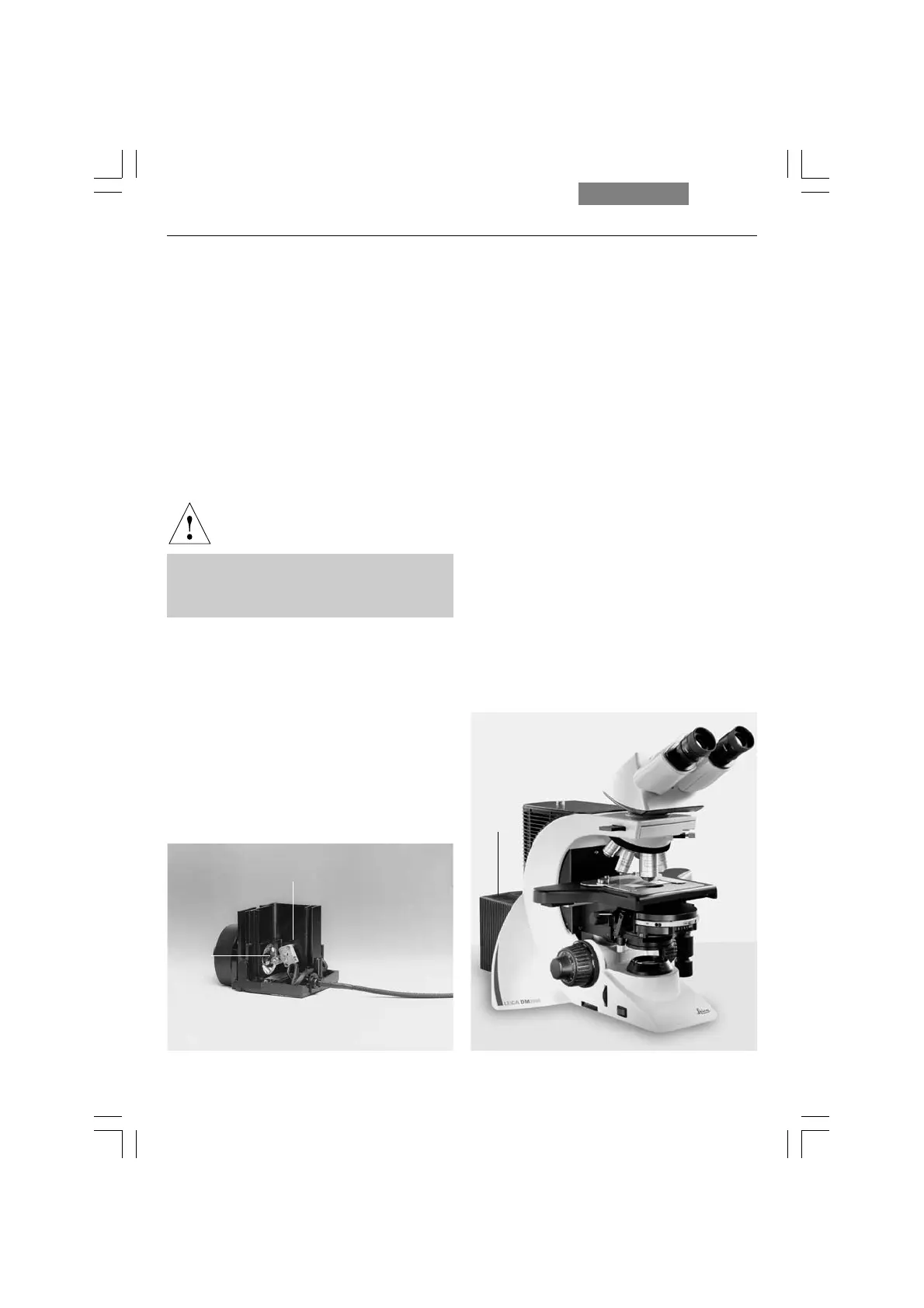

Fig. 14b Lamp housing 107/2, opened
1 Mount with halogen lamp
2 Collector
Leica DM2500 only:
Replacing the Lamp in Lamp Housing 107/2
This lamp housing is used with a 12V 100W halo-
gen lamp, which is already mounted.
In case the lamp has to be removed:
• Remove the fastener screw on the housing
(Fig. 14a).
• Remove the housing by pulling it upward.
• Remove the lamp.
Caution!
Do not remove the new lamp’s dust cover
until you have installed the lamp. Avoid fin-
gerprints on the lamp.
Fig. 15 Leica DM2500
1 Lamp housing for transmitted light
1
• Insert the new 12V 100W lamp (14b.1) with the
dust cover straight into the socket until it
stops. Be sure that the lamp is inserted
straight.
• Remove the lamp’s dust cover.
• Replace the housing and fasten it in place us-
ing the fastening screw.
• Place the lamp housing in the transmitted
light lamp housing receptacle (Fig. 15) and
fasten it with the clamping screw on the side.
