30
6. Assembling the Microscope
6.7 Analyzer and Polarizer
Analyzer
Remove the plug cap on the left side of the
stand.
Insert the analyzer into the receptacle until it
latches in place (26.1).
When using the Pol intermediate tube* or the TL
analyzer slot*:
Remove the plug cap on the left side.
Insert the analyzer into the receptacle until it
latches in place.
Polarizer
Attach the polarizer holder to the underside of
the condenser holder with the left clamp
screw (26.2). Remove the flip-out blue filter if
required.
Push the polarizer with the labelled side fac-
ing upward into the lower opening.
Alternatively for Leica DM2000/3000:
Raise the condenser to its upper stop
position.
Remove the DLF filter magazine from the base
if present.
Press the polarizer holder in place (Fig. 27).
Push the polarizer with the labelled side fac-
ing upward into the lower opening.

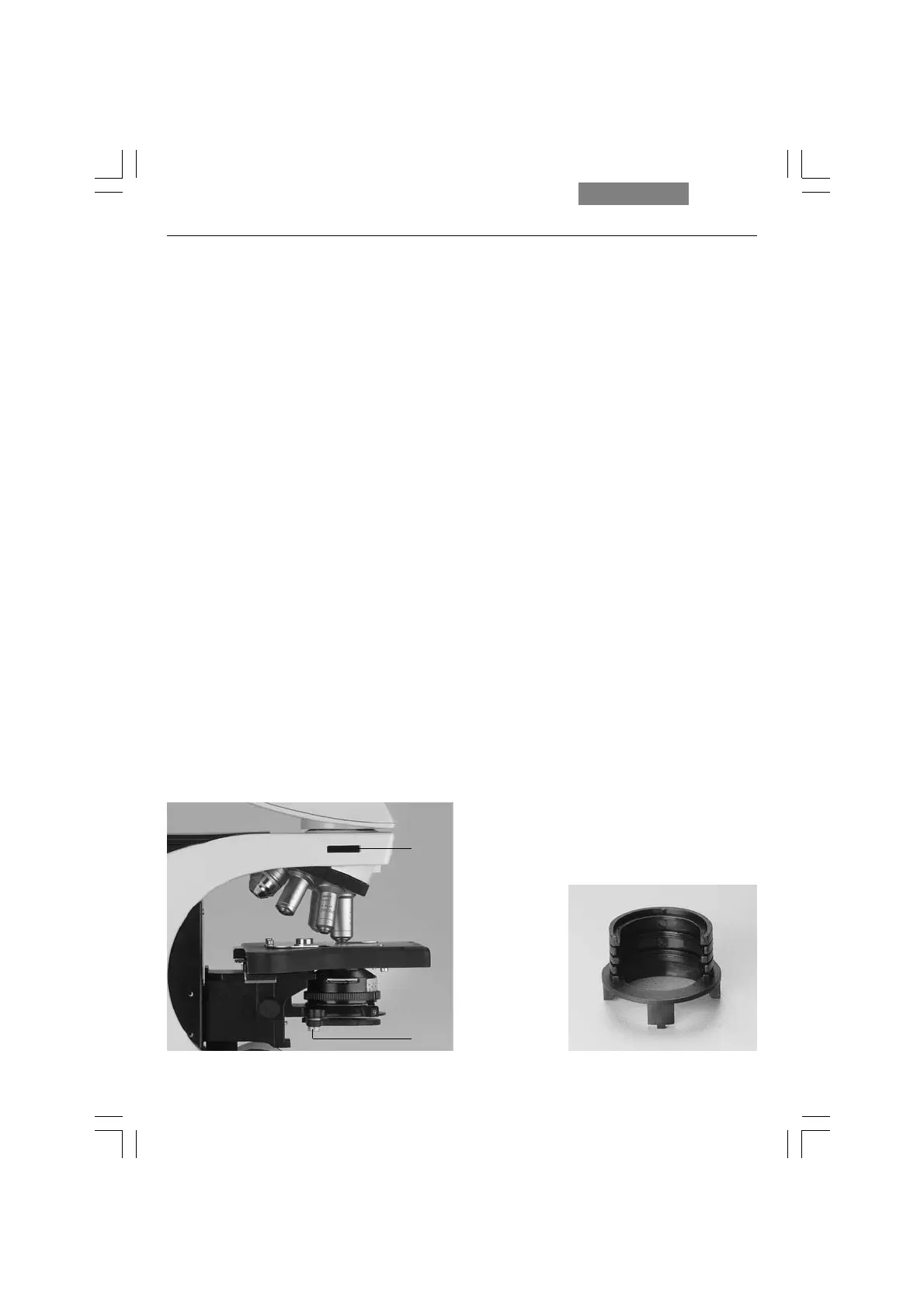

Fig. 27 Filter holder with 2 positions for
Leica DM2000/3000
Fig. 26 Assembly of polarizer holder
1 Analyzer slot
2 Clamping screw
1
2
