47
8. Operation
HC L 2TU tube:
The beam splitting is set manually by pulling out
a control bar.
Control Bar Observation Photo
VIS 100% 0%
PHOTO 0% 100%
8.5 Eyepieces
Note:
The eyepiece’s aperture protector must be re-
moved or folded back, during microscopy while
wearing eyeglasses.
We recommend that users take off glasses with
bifocal or progressive-addition lenses when
working with the microscope.
• For the adjustable tubes with documentation
output, choose the 100% VIS position.
Eyepieces with Inlaid Reticle
• Focus the reticle by adjusting the eye lens.
• Focus on the object through this eyepiece.
• Then, close that eye and focus on the object
by adjusting only the second ocular.
Correction for Vision Problems
•With your right eye, look through the right
eyepiece and bring the specimen into sharp
focus.
• Then, with your left eye, view the same
specimen and rotate the left eyepiece tube
until the object is brought into sharp focus.
Do not use the focus dial.

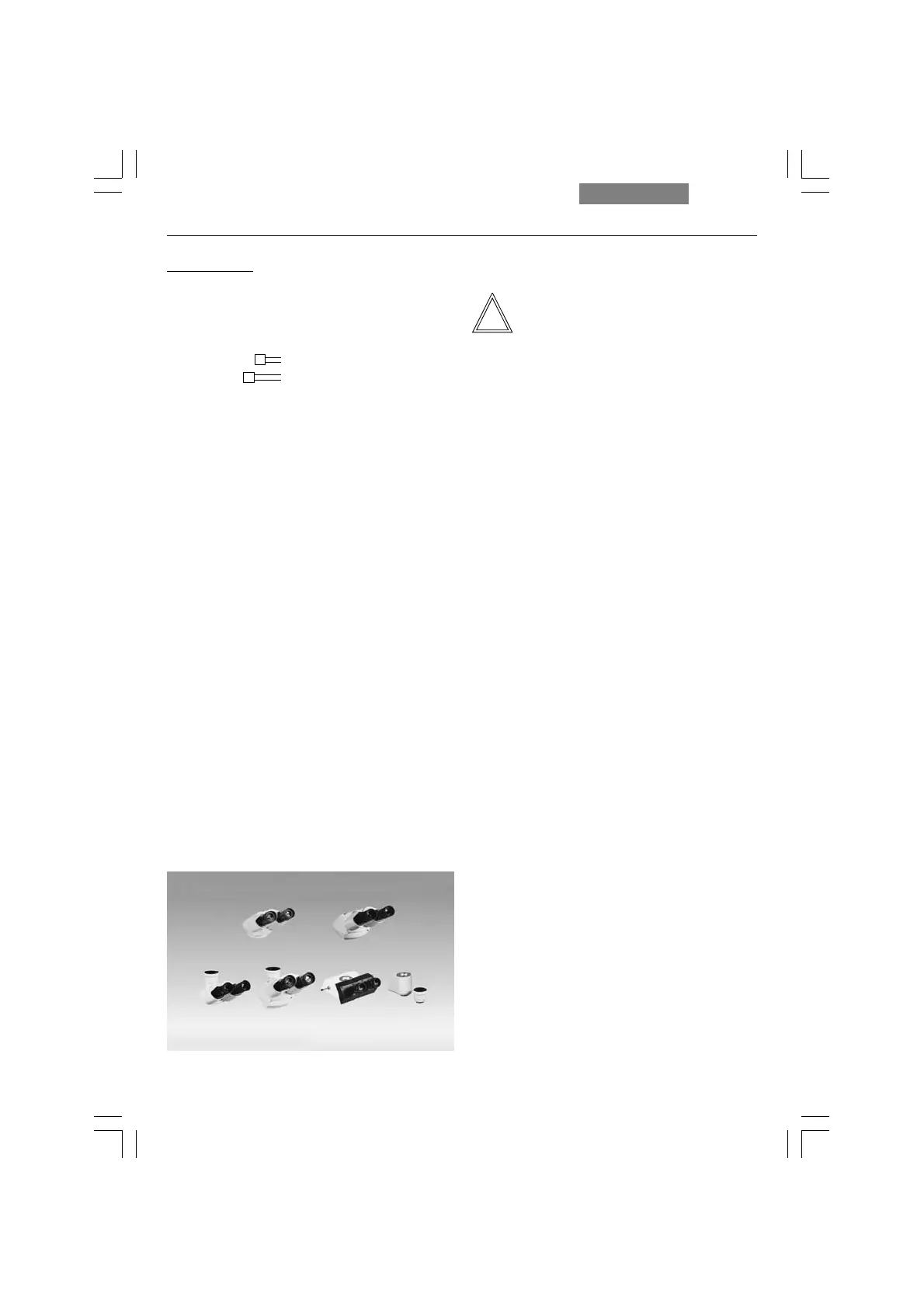

Fig. 54 Tube range HC L
1 Binocular observation tube HC LB 0/3/4
2 Ergonomy tube HC LVB 0/4/4, binocular,
viewing angle 0-35°
additional ergotube (short) HC -/0/4,
swivelable 7.5°-32.5°
3 Trinocular tube H L1T 4/5/7, with fixed beamsplitter
(50% / 50%)
4 HC L1VT 0/4/4 like 3,
but with adjustable viewing angle of 0-35°
5 Trinocular tube HC L3TP 4/5/7 with 3 switching positions
6 Photo adapter, with 2 exits (50% / 50%)
7 Photo TV exit
2
345
67
1
