6. Assembling the Microscope
6.6 Components for Fluorescence Applications
6.6.1 Fluorescence Illuminator
The fluorescence illuminator is mounted in front
of the tube. It is fastened in place with the side
clamping screw.
6.6.2 106 z Lamp Housing
Caution!
Light sources pose a potential irradiation
risk (glare, UV-radiation, IR-radiation).
Therefore, lamps have to be operated in
closed housings.
During assembly, always unplug the power
supply unit of the 106 z lamp housing from its
socket.
During assembly work on xenon burners, al-
ways wear the supplied protective gloves
and face protection (Fig. 17) (risk of explosion).
Never touch the glass parts of the burner
with bare hands.
Never look directly into the beam path
(blinding hazard).
This 106 z lamp housing is used with various gas
discharge lamps.
Caution!
Make sure to follow the instructions and
safety notes of the lamp supplier.
Before changing lamps allow at least 30 min-
utes for cooling down!
Inserting the Gas Discharge Lamps (Hg and Xe)
into the 106 z Lamp Housing
Hg and Xe lamps are powered by separate sup-
ply units.
Read the separate instruction manual provided
with these supply units.

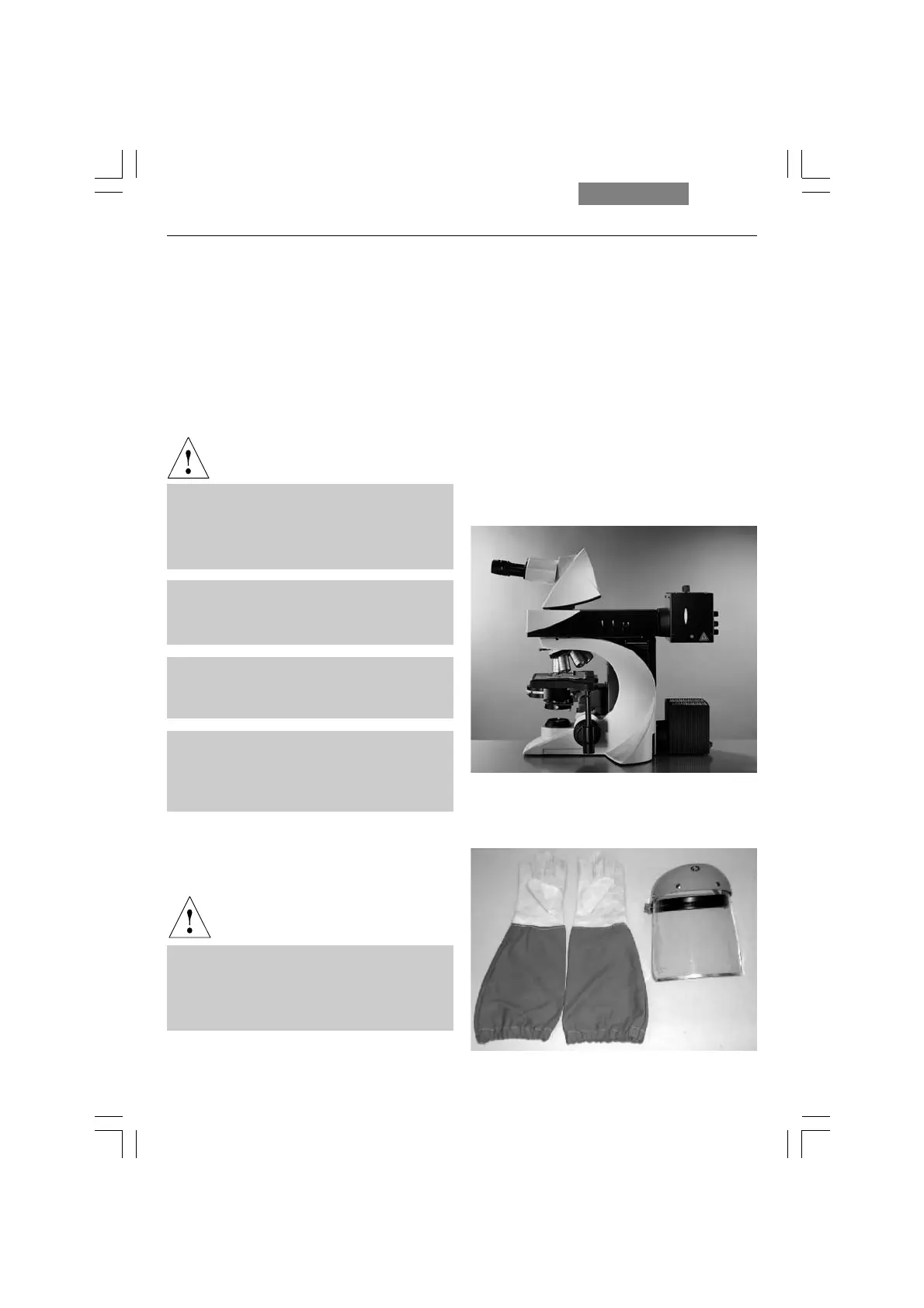

Fig. 17
Protective gloves and mask
Fig. 16 Assembly of fluorescence illuminator
To Next Page
