4.3 Fixing the Field Controller to a Holder and Pole

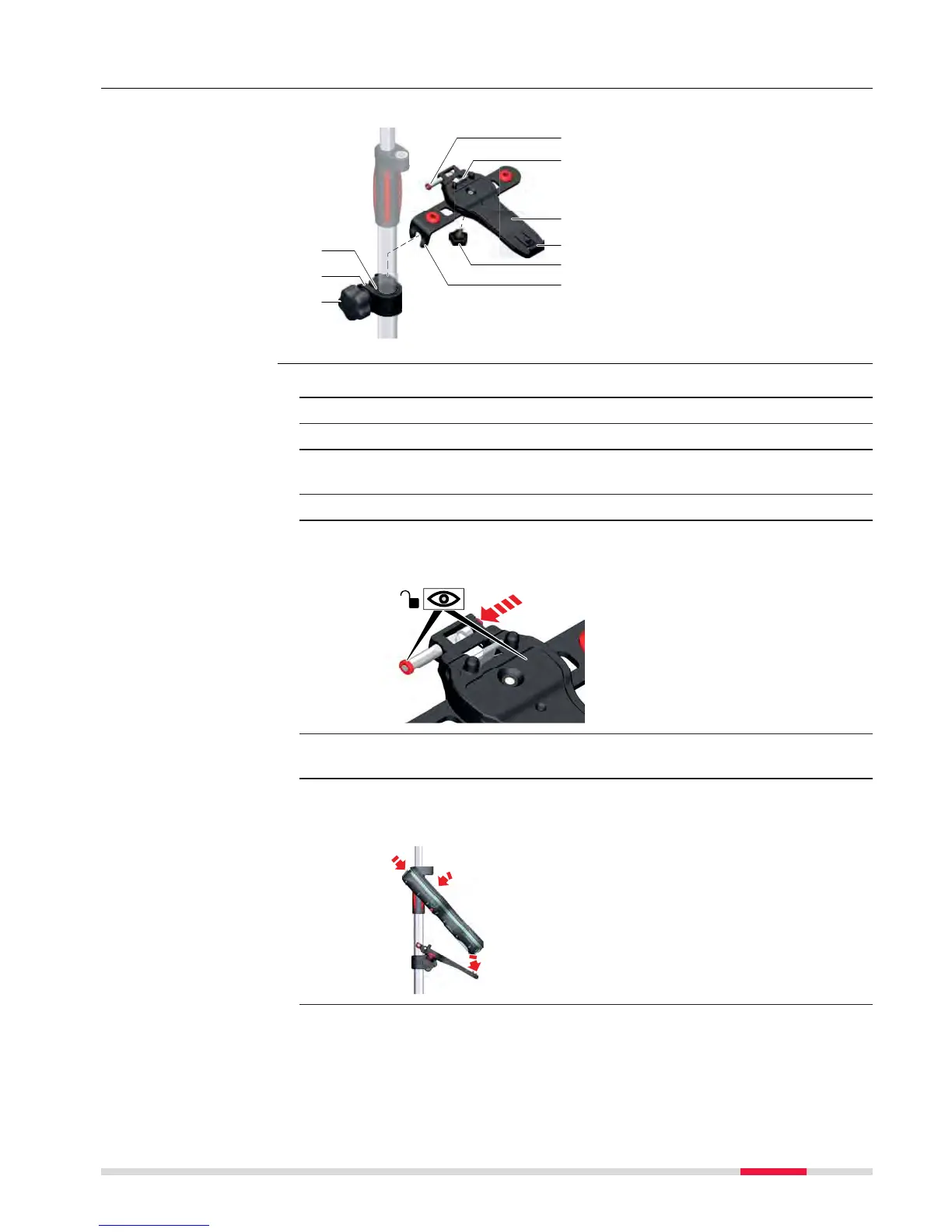

The GHT66 holder consists of the following components:
008545_001
a
b
c
f
d
e
g
h
i
GHT63 clamp
a Plastic sleeve
b
Pole clamp
c Clamp bolt
GHT66 holder
d Locking pin
e Top clip
f Mounting plate
g Bottom clip
h Tightening screw
i Mounting arm
☞
For an aluminium pole, fit the plastic sleeve to the pole clamp.
1. Insert the pole into the clamp hole.
2. Attach the holder to the clamp using the clamp bolt.
3. Adjust the angle and the height of the holder on the pole to a com-
f
ortable position.
4. Tighten the clamp with the clamp bolt.
5. Before placing the CS field controller onto the mounting plate, ensure
that the locking pin is put into the unlocked position. To unlock the
locking pin, push the locking pin to the left.
008546_001
6. Hold the CS field controller above the holder and lower the end of
the CS f
ield controller into the mounting plate.
7. Apply slight pressure in a downward direction and then lower the top
part of the CS field controller until the unit is clicked into the holder.
The guides of the mounting plate aid in this action.
7c
7a
7b
008547_001
Components of the
G
HT66 holder
Fixing the field
controller and GHT66
to a pole step-by-
step
Operation 39
