 ᘐ NOTICE
The solar power unit is intended to charge the
coach batteries only. It does not generate enough
power to run the motorhome’s electrical system.
LIGHTING MAINTENANCE
The following procedures detail replacement of the
coach interior and exterior lights.
 ᘐ CAUTION
Disconnect the chassis and coach batteries
before carrying out maintenance on the lighting
system.

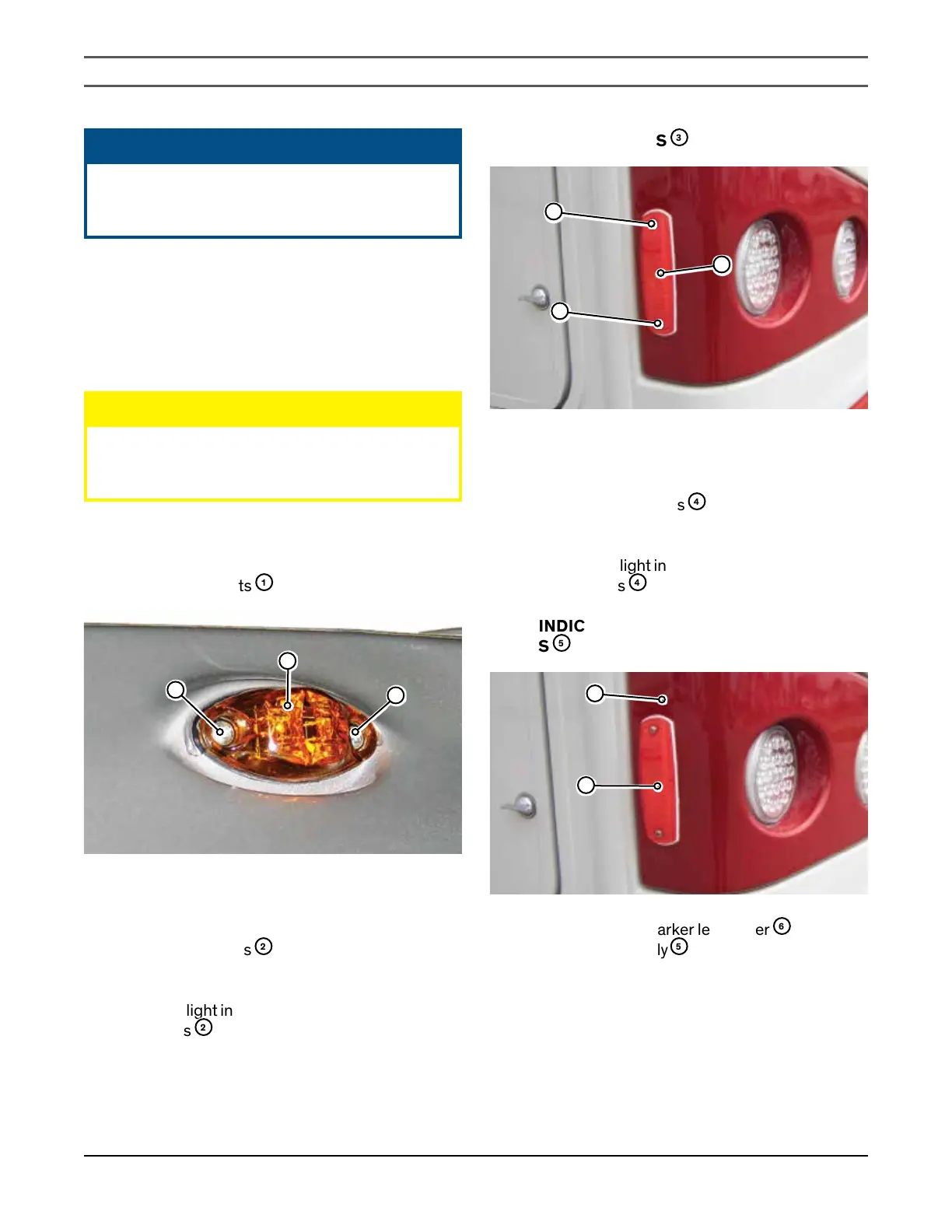

EXTERIOR LIGHTING
Upper Clearance Lights
1
1
2
2
NOTE: This is a sealed LED unit and must be replaced
as complete unit.
Remove the two screws
2
and pull the light out of the
bodywork to gain access to the connections.
Disconnect the old and reconnect the new light.
Insert the new light into the bodywork and secure with
the two screws
2
.
SIDE MARKER LIGHTS
3
3
4
4
NOTE: This is a sealed LED unit and must be replaced
as complete unit.
1. Remove the two screws
4
and pull the light out of
the bodywork to gain access to the connections.
2. Disconnect the old and reconnect the new light.
3.
Insert the new light into the bodywork, secure with
the two screws
4
and reinstall the lens cover.
REAR INDICATOR/REVERSE/BRAKE/ROAD
LIGHTS
5
5
6
1. Unscrew the side marker lens cover
6
.
2.
Pull the light assembly
5
away from the coach body.
