ELECTRICAL SYSTEM OPERATION UNITY MOTORHOME
94
12 VOLT DC CHASSIS FUSES
Refer to the chassis operator’s manual for chassis fuse
functions.

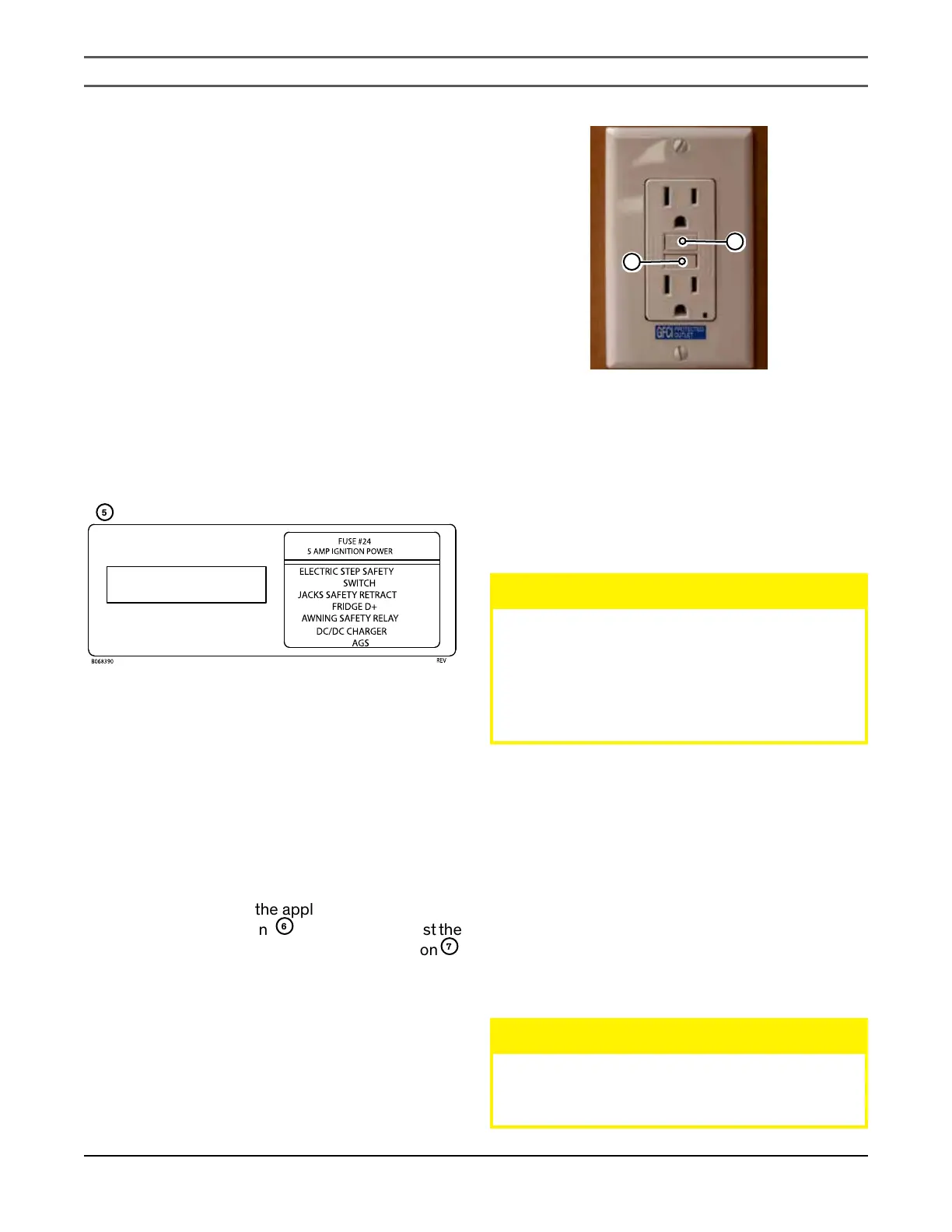

DRIVER SEAT PEDESTAL FUSES
Fuse #24: 5 amp fuse powers the following components:
•Electric step safety retract
•Stabilizer jack safety retract
•
Refrigerator (when on AUTO select 12 V power
source
•Awning relay (safety lock)
•Isolator relay delay module
•DC/DC Charger
•AGS
5
GROUND FAULT CIRCUIT
INTERRUPTER GFCI
Various outlets in the motorhome, particularly those
near sinks and water supplies, are connected to a GFCI.
A GFCI detects electrical current that is traveling along
an unintended path and automatically stops the current
to reduce the risk of electrical shock and fire. If a GFCI
breaker trips, unplug all the appliances on that circuit
and press the reset button
6
on the outlet. To test the
operation of the GFCI breaker, press the test button
7
.
6
7
NOTE: GFCI receptacles may not appear as shown in
this manual. If a GFCI trips repeatedly there is likely a
significant fault in that circuit. Have the faulty circuit
and the GFCI investigated and repaired by a qualified
technician before using it again.
For detailed wiring, GFCI locations and GFCI-protected
receptacles see the AC wiring schematics.
ᘐ CAUTION
The GFCI will not completely eliminate the risk
of electrical shock. Small children or persons
with heart conditions should be extra cautious
because electrical shock could cause burns
or cause the heart to stop even when a GFCI is
present.
NOTE: The GFCI circuit in the bathroom will trip when
a fault occurs at the exterior receptacle. The U24MB
galley receptacle is protected through a GFCI located
in the pillar behind the driver’s seat.
AUXILIARY LP GAS GENERATOR
OPTIONAL
The generator is located below the coach floor in a
location which varies depending on the floor plan.
ᘐ CAUTION
Before operating the generator, refer to the LP
Gas generator operator’s manual located in the
Motorhome Information Kit.
