MOTORHOME OPERATION UNITY MOTORHOME
50

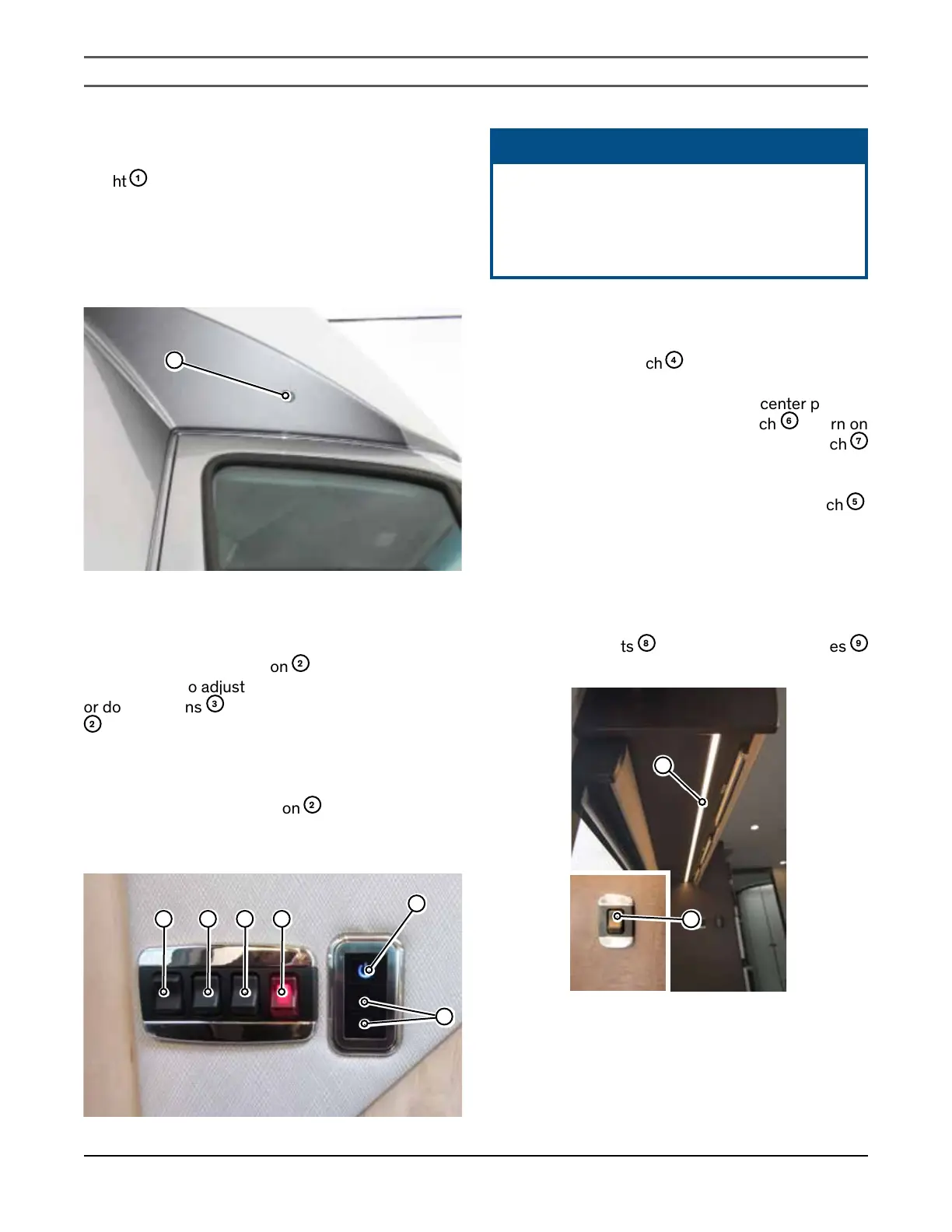

LIGHTING
A light
1
is located above each cab door and comes on
when the door is opened. It lights up the seat and cab
area to facilitate entry. When the door is opened, light
comes on. When the door is closed, the light goes out.
The light is powered by the Mercedes Sprinter chassis
system.
1
INTERIOR OVERHEAD LIGHT DIMMER
SWITCH
Press the main power button
2
to turn on the interior
ceiling lights. To adjust the lighting, hold either the up
or down buttons
3
. Pressing the main power button
2
a second time will turn off the lights. When powering
back on, the lights will be at the previous lighting level
when they were turned off.
NOTE: The main power button
2
will have a soft blue
glow when the power is off .
2
33
4 5 6 7
ᘐ NOTICE
Turn the battery disconnect switch to internal
12voltDC power to operate the interior roof
lights. Refer to the “Electrical System Operation”
section in this manual for battery disconnect
switch details.
EXTERIOR/INTERIOR LIGHT
SWITCHES
Depress the top of switch
4
to turn on the exterior patio
light, depress the bottom for assist handle and entrance
step ground illumination lights (in the center position
lights are off). Depress the top of switch
6
to turn on
the interior accent lights. Depress the top of switch
7
to turn on the exterior storage and utility center lights.
NOTE: Depress the top of the step override switch
5
,
located inside the coach entrance, to prevent the steps
from retracting when the coach door is closed. (Refer
to the “Step Override Switch” section for details.)
UNDER CABINET LIGHT SWITCHES
Under cabinet lights
8
are controlled by switches
9
mounted on the wall adjacent to it.
8
9
