UNITY MOTORHOME APPLIANCE AND EQUIPMENT OPERATION
63
VENT HOOD HEIGHT CONTROL
The rotary knob
6
controls the height position of the
vent hood. Turn the knob clockwise to pull the hood
down and close it. Turn the knob counterclockwise to
raise or open the hood.
CLEANING INSTRUCTIONS
1. Turn off the fan motor using the on/off switch
3
.
2.
Locate the thumb tab on the screen
7
, and pull
down to unsnap the screen.
3.
Wash the screen and fan blade with a light,
non-abrasive soap, rinse and dry.
4.
Reinstall the screen by gently snapping it back
into place.
CLEANING TIP
Once washed and dried, you may wipe or spray
protectant onto the screen and blade (use only a water
based protectant – do NOT use a petroleum based
protectant). Buff to a high-gloss finish. This will minimize
the amount of dust and dirt buildup.
ᘐ NOTICE
The power roof vent is protected by a 4 amp fuse
8
. If the fan fails to operate, verify that the fuse
is intact and replace if necessary.

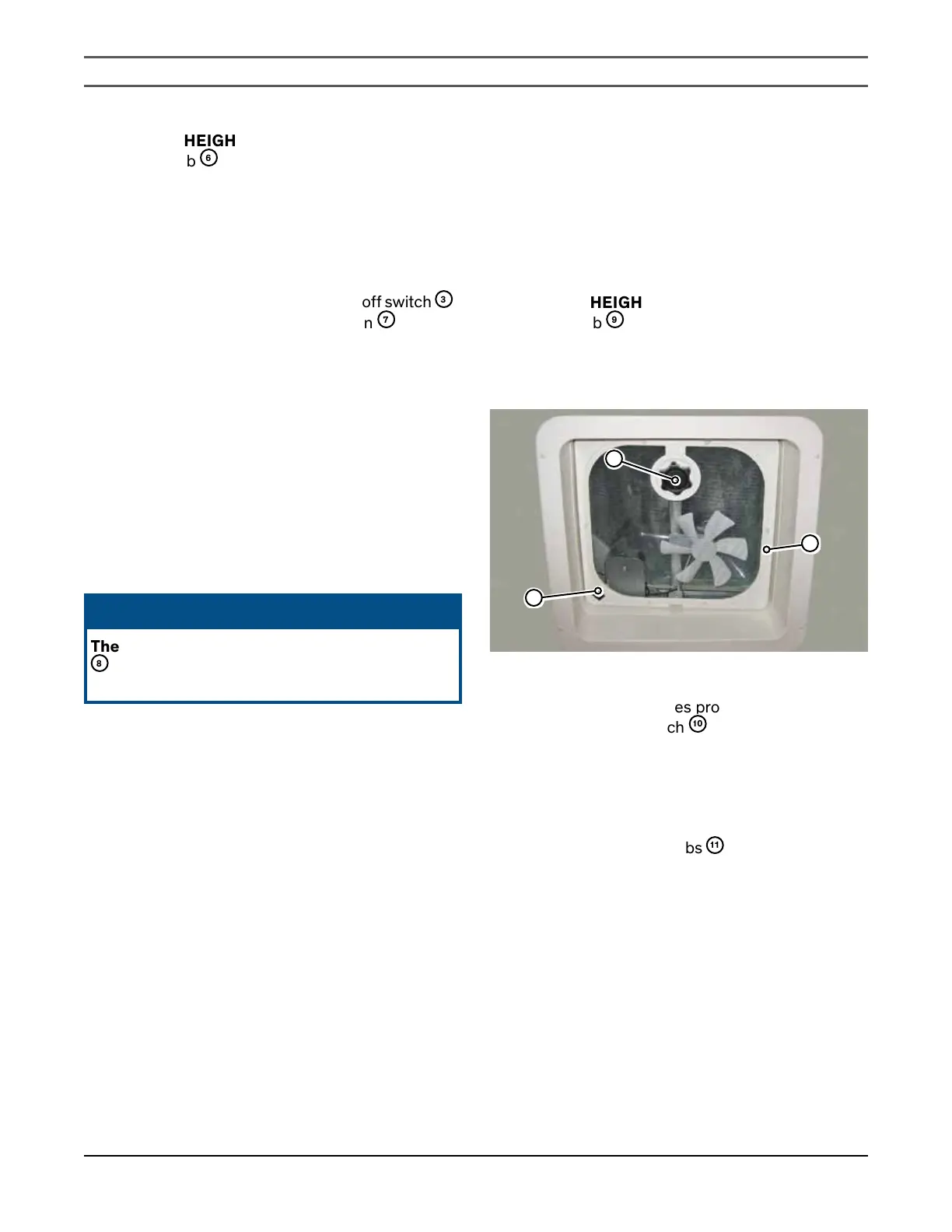

BATHROOM ROOF VENT
The bathroom roof vent provides air flow and venting
when using the shower.
OPERATING CONTROLS
VENT HOOD HEIGHT CONTROL
The rotary knob
9
controls the height position of the
vent hood. Turn the knob clockwise to pull the vent
hood down and close. Turn the knob counterclockwise
to raise and open.
11
10
9
FAN ON/OFF SWITCH
The 12 volt DC fan provides proper ventilation of the
shower cubicle. The switch
10
is used to turn the fan
on and off.
CLEANING INSTRUCTIONS
1. Turn off the fan motor.
2. Release the retaining tabs
11
securing the screen
and pull the screen down.
3.
Wash the screen and fan blade with a light,
non-abrasive soap, rinse and dry.
4. Reinstall the screen by gently snapping back into
place.
CLEANING TIP
Once washed and dried, you may wipe or spray
protectant onto the screen and blade (use only a water
based protectant – do NOT use a petroleum based
protectant). Buff to a high-gloss finish. This will minimize
the amount of dust and dirt buildup.
