UNITY MOTORHOME MOTORHOME OPERATION
55
4.
Remove the slide out snap-on trim boards
11
on
both sides.
5. Remove the mounting screws on either side
12
.
11
12
11
6. Push in the slide out room until fully retracted,
keeping both sides of the slide out level with the
coach while retracting.
NOTE: Manual movement of the slide out requires
significant effort and may require the assistance of
several people.
7.
Peel back the exterior sweep gasket
10
from the
top corners of the slide out, and reengage the slide
out motor.
8.
Replace the motor mounting screw
9
on each
side of the slide out, and replace the snap-on trim
boards
11
.
9.
Reconnect both electrical connectors (
3
&
4
) to
the control module
2
.
10.
Install the travel lock before moving the motorhome.

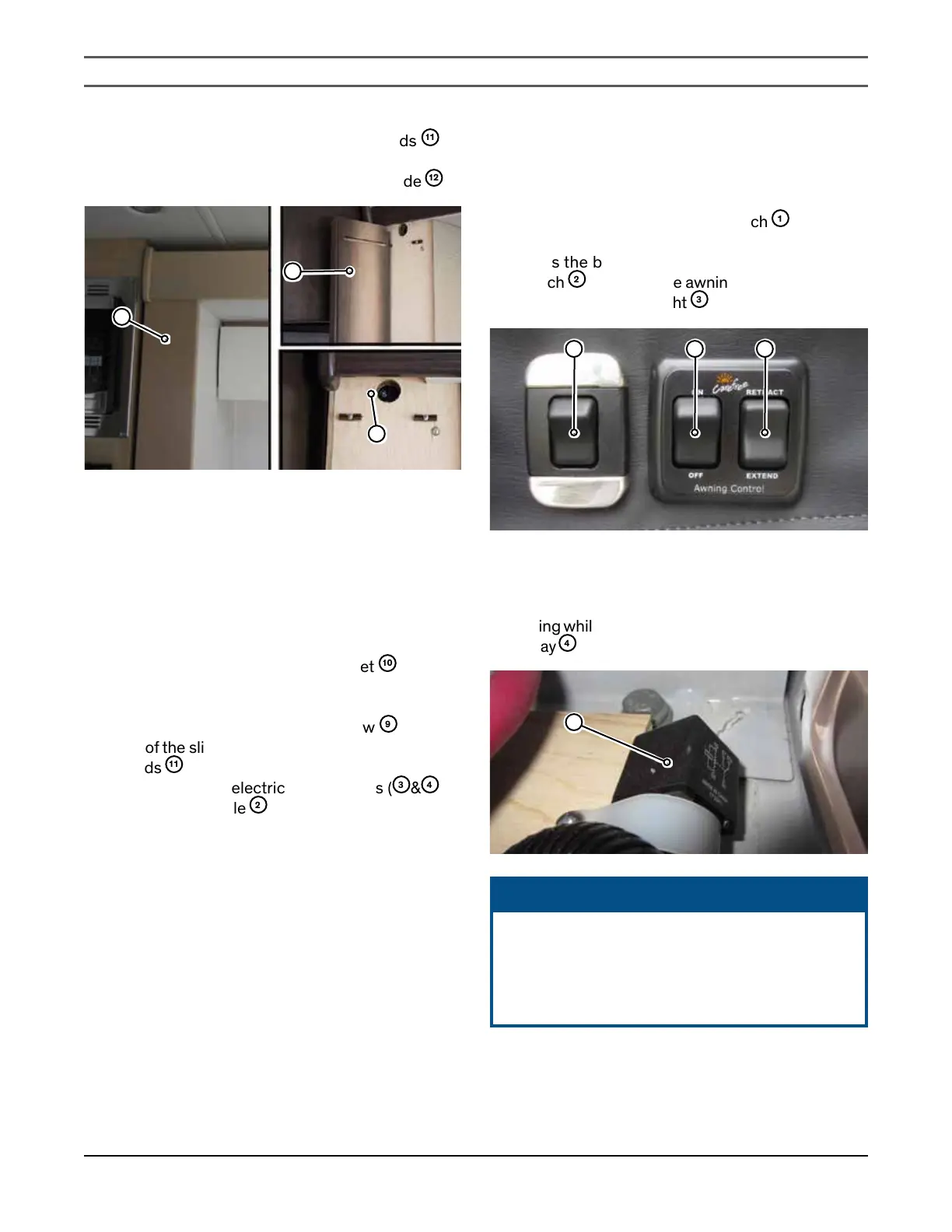

AWNING
EXTENDING THE AWNING
1. Turn the main awning power switch
1
located on
the passenger side seat base to the “ON” position.
2.
Press the bottom section of the awning control
switch
2
to extend the awning fully.
3. Turn on the awning light
3
if desired.
1 23
NOTE: The power awning will not operate with the
motorhome ignition on. The power awning is equipped
with a safety feature preventing the awning from
extending while the motorhome ignition is on (driving).
This relay
4
is located under the front passenger seat.
4
 ᘐ NOTICE
Awnings are designed to provide shade and
protection from the sun. Retract awning if
experiencing rain or wind conditions and when
leaving unit unattended. Always secure awning
in travel position when not in use.
