Tocompletethepartsreplacement,goto“Completingthepartsreplacement”onpage95.
M.2solid-statedrive
•“RemovingtheM.2solid-statedrive”onpage65
•“InstallingtheM.2solid-statedrive”onpage65
RemovingtheM.2solid-statedrive
ToremovetheM.2solid-statedrive(SSD),dothefollowing:
1.Prepareyourserver.See“Preparingyourserverinadvance”onpage47.
2.IftheserverisinstalledwithaPCIecard,removethecard.See“RemovingthePCIecard”onpage56.
3.LocatetheM.2SSDandremovethescrewthatsecuresit.Then,liftituptoremoveitfromthesystem
board.

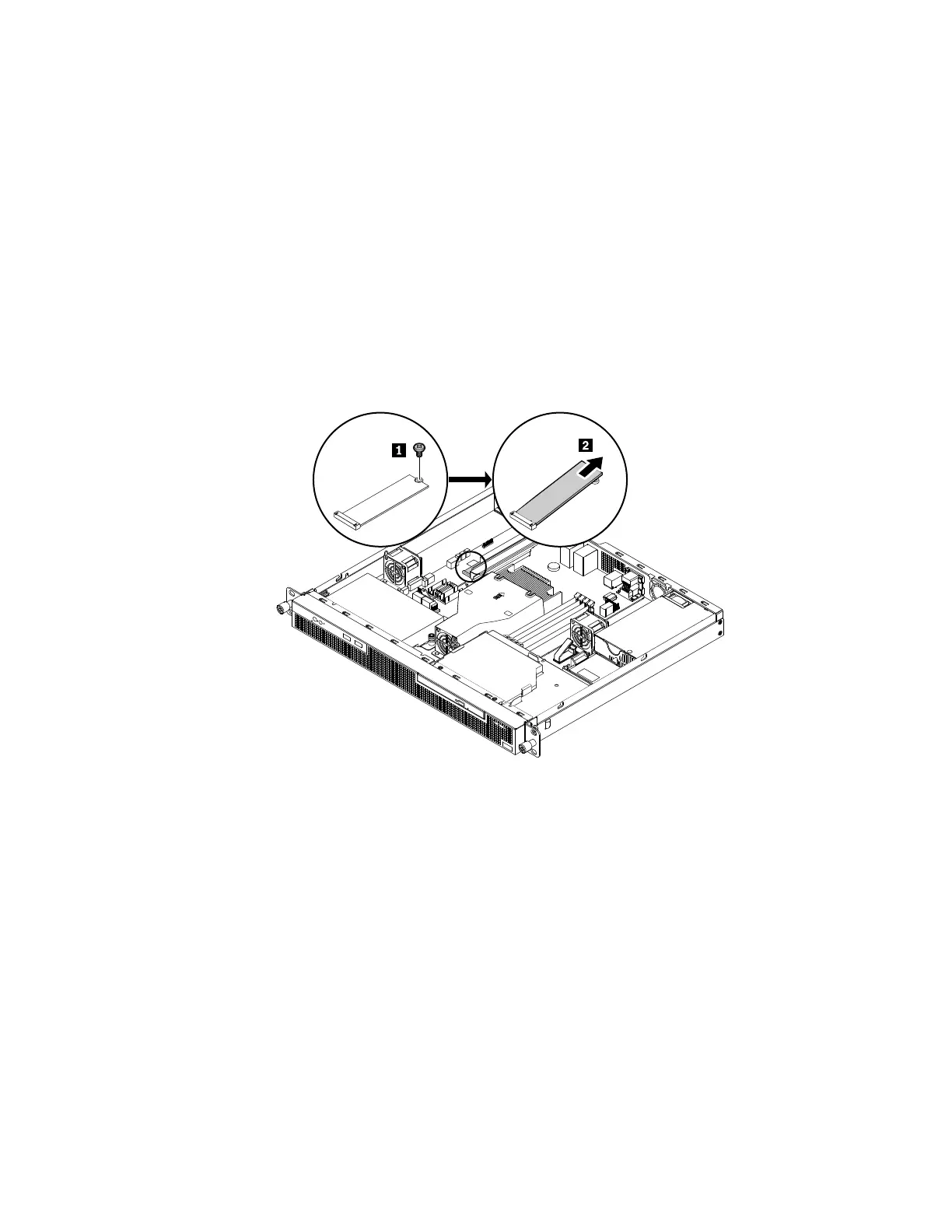

Figure41.RemovingtheM.2SSD
4.ReinstallthePCIecardifyouhaveremovedit.See“InstallingthePCIecard”onpage56.
5.IfyouareinstructedtoreturntheoldM.2SSD,followallpackaginginstructionsanduseanypackaging
materialsthataresuppliedtoyouforshipping.
Tocompletethepartsreplacement,goto“Completingthepartsreplacement”onpage95.
InstallingtheM.2solid-statedrive
ToinstalltheM.2SSD,dothefollowing:
1.Prepareyourserver.See“Preparingyourserverinadvance”onpage47.
2.IftheserverisinstalledwithaPCIecard,removethecard.See“RemovingthePCIecard”onpage56.
3.IftheservercomeswithanoldM.2SSD,removetheoldM.2SSD.See“RemovingtheM.2solid-state
drive”onpage65.
4.Touchthestatic-protectivepackagethatcontainsthenewM.2SSDtoanyunpaintedsurfaceonthe
outsideoftheserver.Then,taketheM.2SSDoutofthepackage.
Chapter5.Replacinghardware65
