Lenovo ThinkServer TS430 Hardware Maintenance Manual

4.Toreinstallthefrontbezel,aligntheotherthreeplastictabsontherightsideofthefrontbezelwith
thecorrespondingholesinthechassis,thenpivotthefrontbezelinwarduntilitsnapsintoposition
ontheleftside.

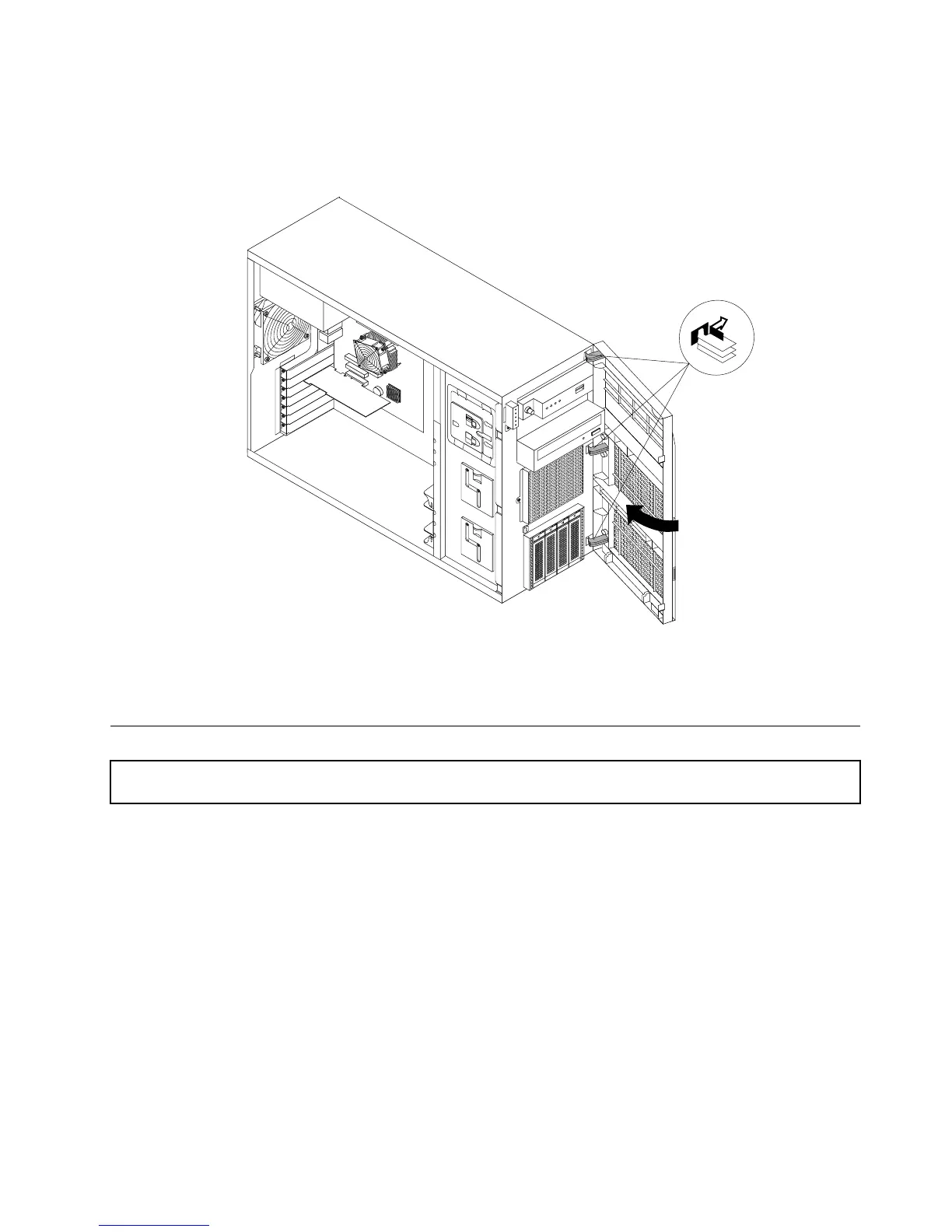

Figure37.Installingthefrontbezel
5.Goto“Completingthepartsreplacement”onpage177.
RemovingandreinstallingthePCIcardbracketassembly
Attention:Donotopenyourserverorattemptanyrepairbeforereadingandunderstandingthe“Safetyinformation”
onpageiii
and“Guidelines”onpage85.
ThistopicprovidesinstructionsonhowtoremoveandreinstallthePCIcardbracketassembly.Thistopicis
forservermodelsthathaveaRAIDcardinstalled.
Beforeyoubegin,printalltherelatedinstructionsorensurethatyoucanviewthePDFversiononanother
computerforreference.
ToremoveandreinstallthePCIcardbracketassembly,dothefollowing:
1.Removeallmediafromthedrivesandturnoffallattacheddevicesandtheserver.Then,disconnectall
powercordsfromelectricaloutletsanddisconnectallcablesthatareconnectedtotheserver.
2.Removetheservercover.See“Removingtheservercover”onpage87.
3.RemovethePCIcardbracketassemblybydoingthefollowing:
Chapter6.Installing,removing,orreplacinghardware91
