6.RemovetheTR500KeyfromtheThinkServerRAID500Adapter.Ifnecessary,youcanremovethe

ThinkServerRAID500Adapterrst,removetheTR500Keyfromit,andthenreinstalltheThinkServer

RAID500Adapter.See“InstallingorremovingtheRAIDcard”onpage103.

Note:CarefullyhandletheTR500Keybyitsedges.

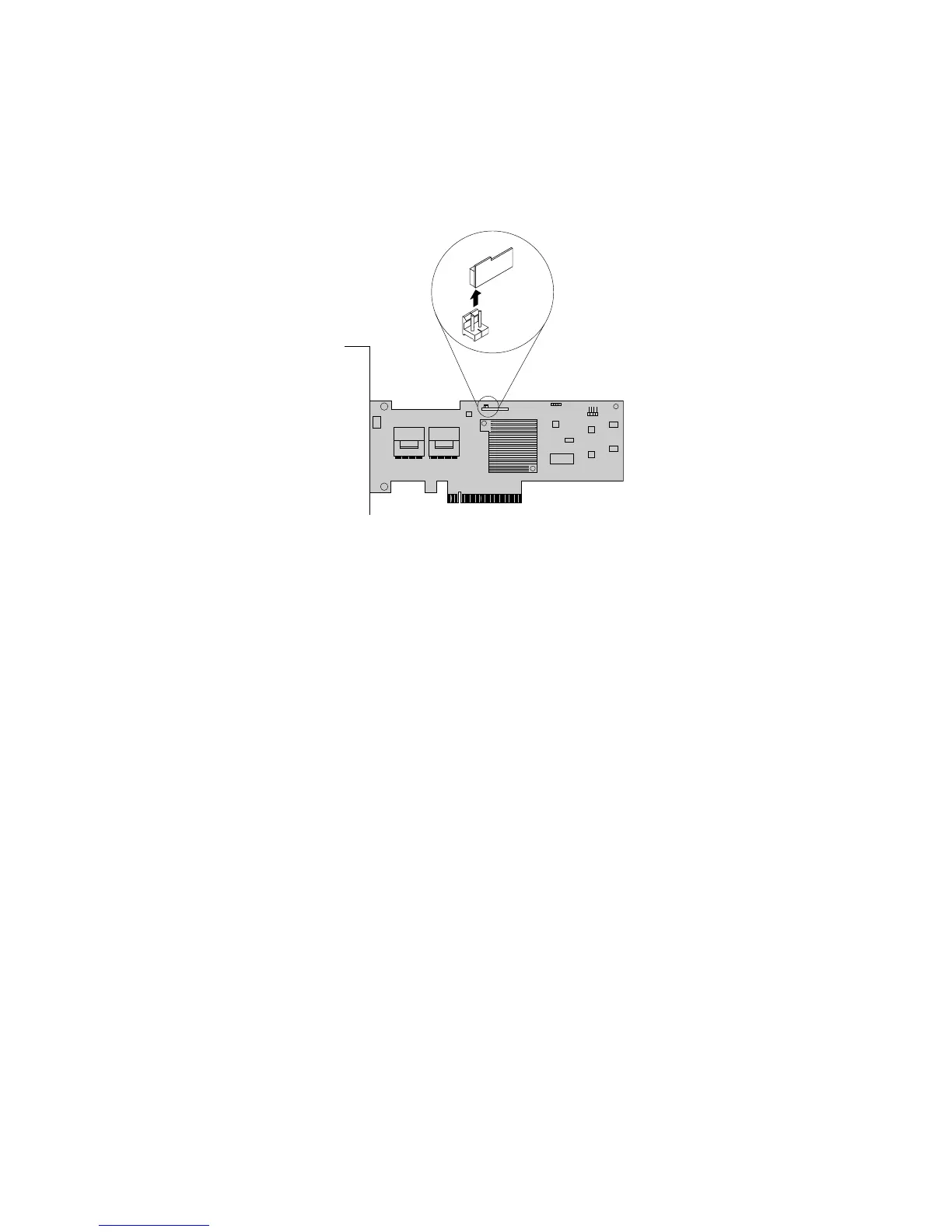

Figure50.RemovingtheTR500KeyfromtheThinkServerRAID500Adapter

7.IfyouareinstructedtoreturntheoldTR500Key,followallpackaginginstructionsanduseany

packagingmaterialsthataresuppliedtoyouforshipping.

Whattodonext:

•Toworkwithanotherpieceofhardware,gototheappropriatesection.

•Tocompletetheremovalprocedure,goto“Completingthepartsreplacement”onpage177.Becausethe

hardwareRAID5and50levelsarenotavailablewithouttheTR500key,youmightneedtorecongure

RAIDforyourserver.ForinformationabouthowtocongurethehardwareRAID,refertotheMegaRAID

SASSoftwareUserGuideonthedocumentationDVDthatcomeswithyourserver.

FortheThinkServerRAID700Adapter:Installingorremovingthe

ThinkServerRAID700Battery

ThistopicprovidesinstructionsonhowtoinstallorremovetheThinkServerRAID700Battery(hereinafter

referredtoastheTR700Battery)ifyourserverhasaThinkServerRAID700Adapterinstalled.

TheTR700BatteryprotectstheintegrityofthecacheddataontheThinkServerRAID700Adapterby

providingbackuppowerupto72hoursinthecaseofacompleteacpowerfailureorabriefpoweroutage.

Ithasbuilt-infunctionalitytoautomaticallychargethebatterypackandtocommunicatebatterystatus

information(suchasvoltage,temperature,andcurrent)toyourserver.Italsoprovidesaninexpensive

alternativetousinganuninterruptiblepowersupply,andasecondleveloffaulttolerancewhenusedin

conjunctionwithanuninterruptiblepowersupply.

ThetemperatureoftheTR700Batteryisgenerally15-20°C(59-68°F)higherthantheambienttemperature

duringfastcharge.Therefore,tocompletearechargecycle,theambienttemperatureshouldbelower

than55°C(131°F).Iftheambienttemperatureexceeds55°C(131°F),therechargecyclewillterminate

prematurely,thuspreventingtheTR700Batteryfromreachingafullychargedstate.Arechargecyclelasts

atleastsixhoursundernormaloperatingconditions.

108ThinkServerTS430HardwareMaintenanceManual
