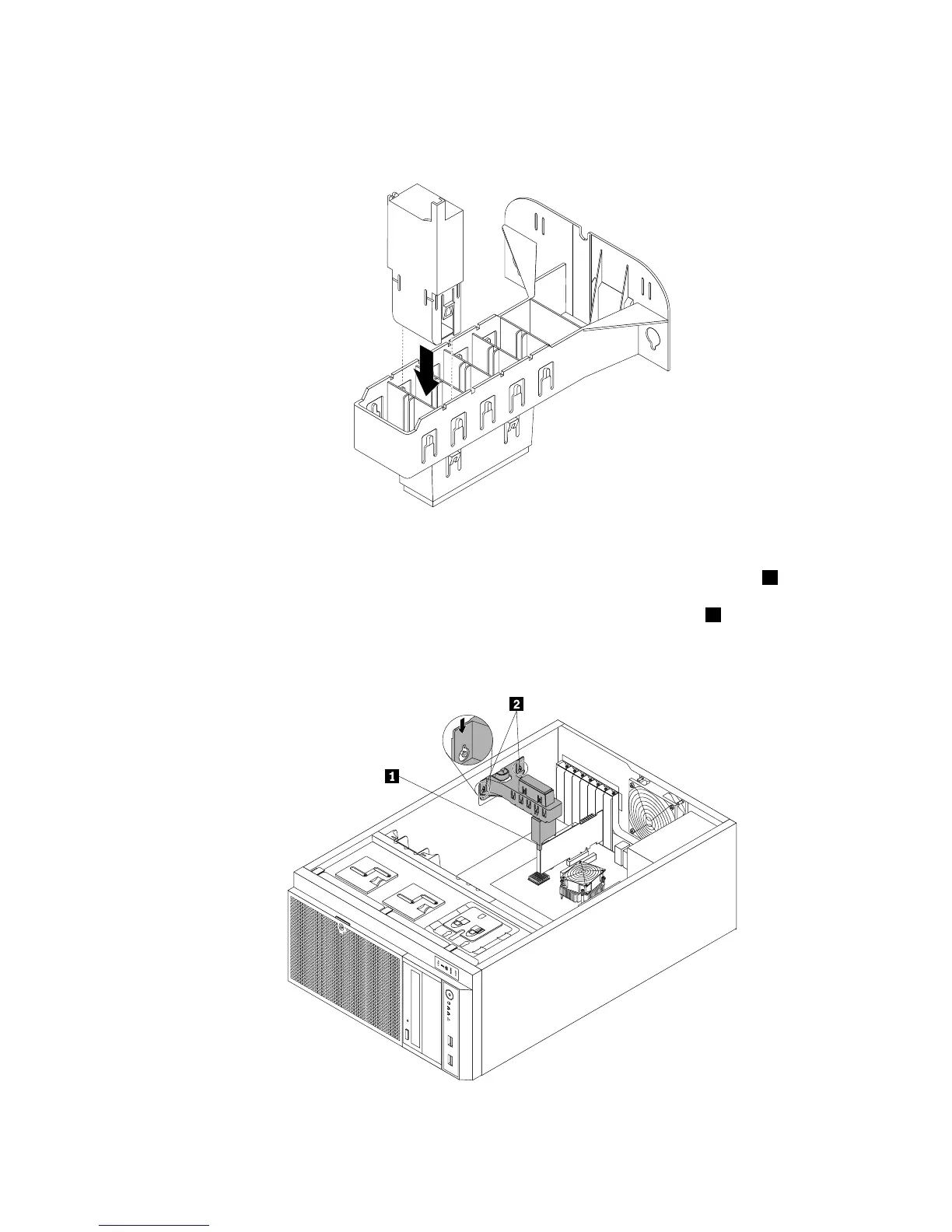

4.ReinstallthePCIcardbracketassemblybydoingthefollowing:
a.Installthesmalllow-prolePCIcardbracketintothemainPCIcardbracketasshown.
Figure40.Installingthesmalllow-prolePCIcardbracketintothemainPCIcardbracket
b.PlacethePCIcardbracketassemblyintothechassissothatthetwomountingstuds2onthe
bottomofthechassisareinsertedintothecorrespondingholesinthePCIcardbracketassembly.
EnsurethattheedgeoftheRAIDcardcanbesmoothlyinsertedintotheslot
1inthesmall
low-prolePCIcardbracket.Then,carefullypressthePCIcardbracketassemblydownuntilitis
securelyinstalledandlockedintopositionbythetwomountingstudsonthechassis.
Figure41.ReinstallingthePCIcardbracketassembly
Chapter6.Installing,removing,orreplacinghardware93
