ToremovetheIntelligentDiagnosticsModule,dothefollowing:

1.Removeallmediafromthedrivesandturnoffallattacheddevicesandtheserver.Then,disconnectall

powercordsfromelectricaloutletsanddisconnectallcablesthatareconnectedtotheserver.

2.Removetheservercover.See“Removingtheservercover”onpage87.

3.Removethefrontbezel.See“Removingandreinstallingthefrontbezel”onpage89.

4.LocatetheIntelligentDiagnosticsModule.See“IntelligentDiagnosticsModule”onpage18.

5.Removethefrontsystemfan(s).See“Replacingthefrontsystemfan”onpage158.

6.DisconnectthesignalcableoftheIntelligentDiagnosticsModulefromtheIntelligentDiagnosticsModule

connectoronthesystemboard.See“Systemboardcomponents”onpage45.

7.Ifnecessary,removeanypartsordisconnectanycablesthatmightimpedeyouraccesstothesignal

cableoftheIntelligentDiagnosticsModule.Notethecableroutingandthenreleasethesignalcableof

theIntelligentDiagnosticsModulefromanycableclipsortiesinthechassis.

8.Removethescrew1onthechassisthatsecurestheIntelligentDiagnosticsModule.Then,carefully

removetheIntelligentDiagnosticsModulefromthechassisandpullthesignalcableoftheIntelligent

DiagnosticsModuleoutoftheholeinthechassis.

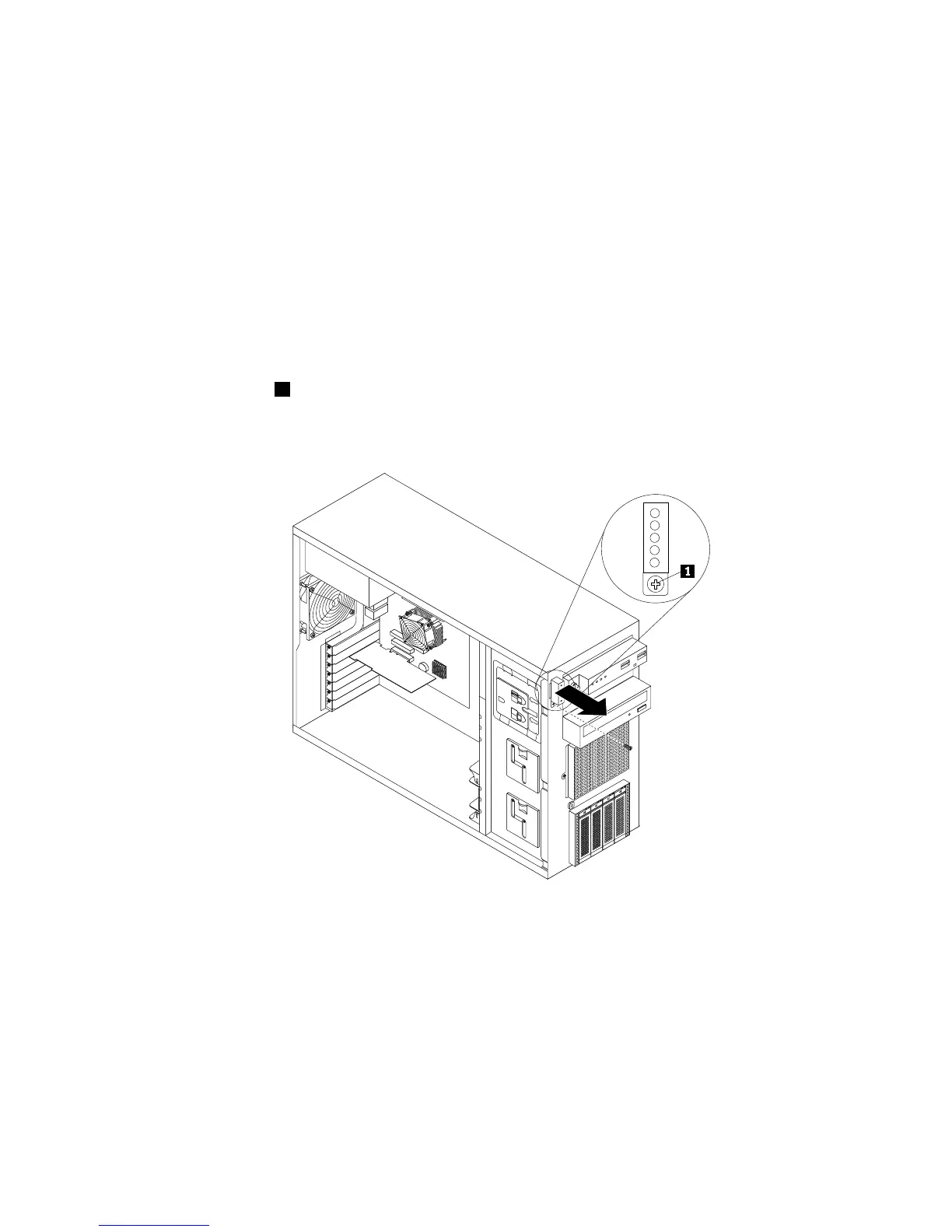

Figure61.RemovingtheIntelligentDiagnosticsModule

9.DisconnectthesignalcablefromtherearoftheIntelligentDiagnosticsModule.

10.Reinstallthefrontsystemfan(s).See“Replacingthefrontsystemfan”onpage158.

11.Reinstallthefrontbezel.See“Removingandreinstallingthefrontbezel”onpage89.

12.IfyouareinstructedtoreturntheoldIntelligentDiagnosticsModule,followallpackaginginstructions

anduseanypackagingmaterialsthataresuppliedtoyouforshipping.

Whattodonext:

•Toworkwithanotherpieceofhardware,gototheappropriatesection.

Chapter6.Installing,removing,orreplacinghardware123
