•Ifyouarereplacinganopticaldrive,disconnectthesignalcableandthepowercablefromtherearof
theopticaldrive.Pressthereleasebutton1inthedirectionasshownandpushtheopticaldrive
fromtherearuntilitisprojectedfromthefrontofthechassis.Then,holdtheopticaldrivefromthe
frontandcompletelyslideitoutofthechassis.

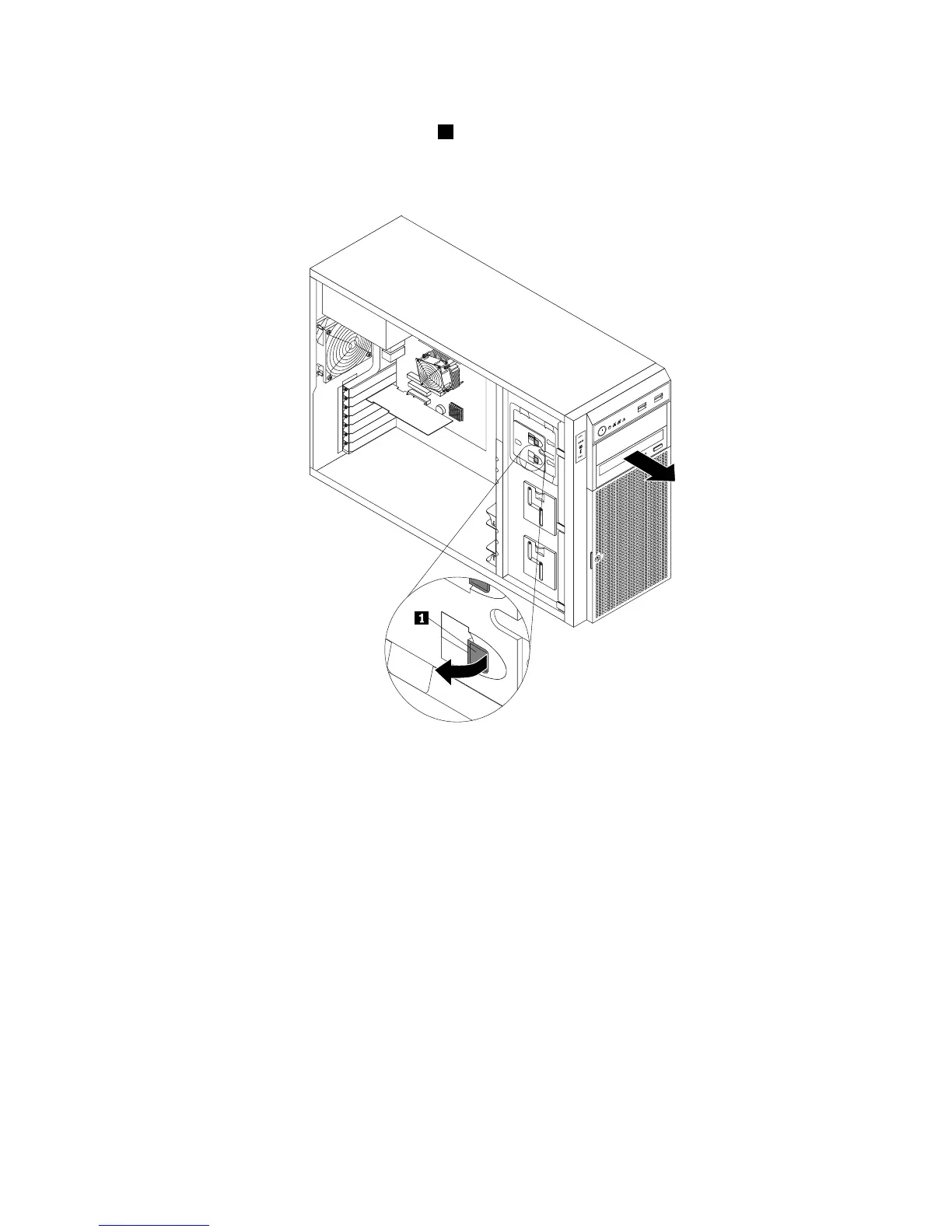

Figure63.Removingtheopticaldrive
5.Touchthestatic-protectivepackagethatcontainsthenewopticaldrivetoanyunpaintedsurfaceonthe
outsideoftheserver.Then,takethenewopticaldriveandthesignalcableoutofthepackage.
126ThinkServerTS430HardwareMaintenanceManual
