5.Recordthecableroutingandconnection.Then,disconnectthepowersupplyassemblycablesfrom
thesystemboardandalldrives.Forservermodelswithhot-swapharddiskdrives,youalsoneedto
disconnectthepowercable(s)fromthehot-swaphard-disk-drivebackplanes.
6.Releasethepowersupplyassemblycablesfromthecableclipsandtiesinthechassis.
7.Removethefourscrews1attherearofthechassisthatsecurethepowersupplyassembly.Then,
pushthepowersupplyassemblyfromtherearuntilitisreleasedfromthemetalretainingtab2.

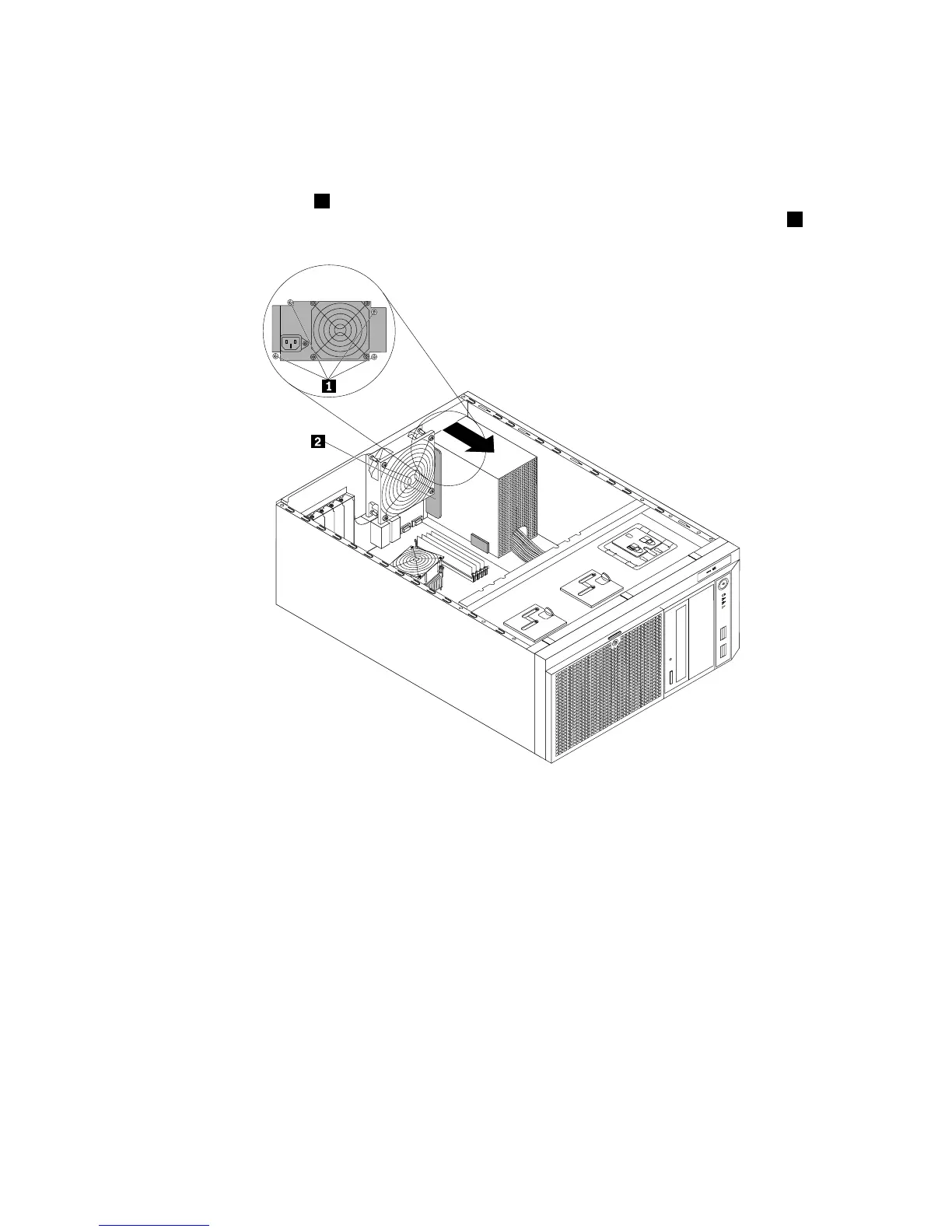

Figure85.Releasingthenon-hot-swappowersupplyassembly
Chapter6.Installing,removing,orreplacinghardware147
