4.Positiontheservercoveronthechassissothattherailonthebottomoftheservercoverengagesthe

bottomrailonthechassis.Then,alignthefourtabs1ontheservercoverwiththecorrespondingholes

inthetopedgeofthechassis.Pivottheservercovertocloseit.

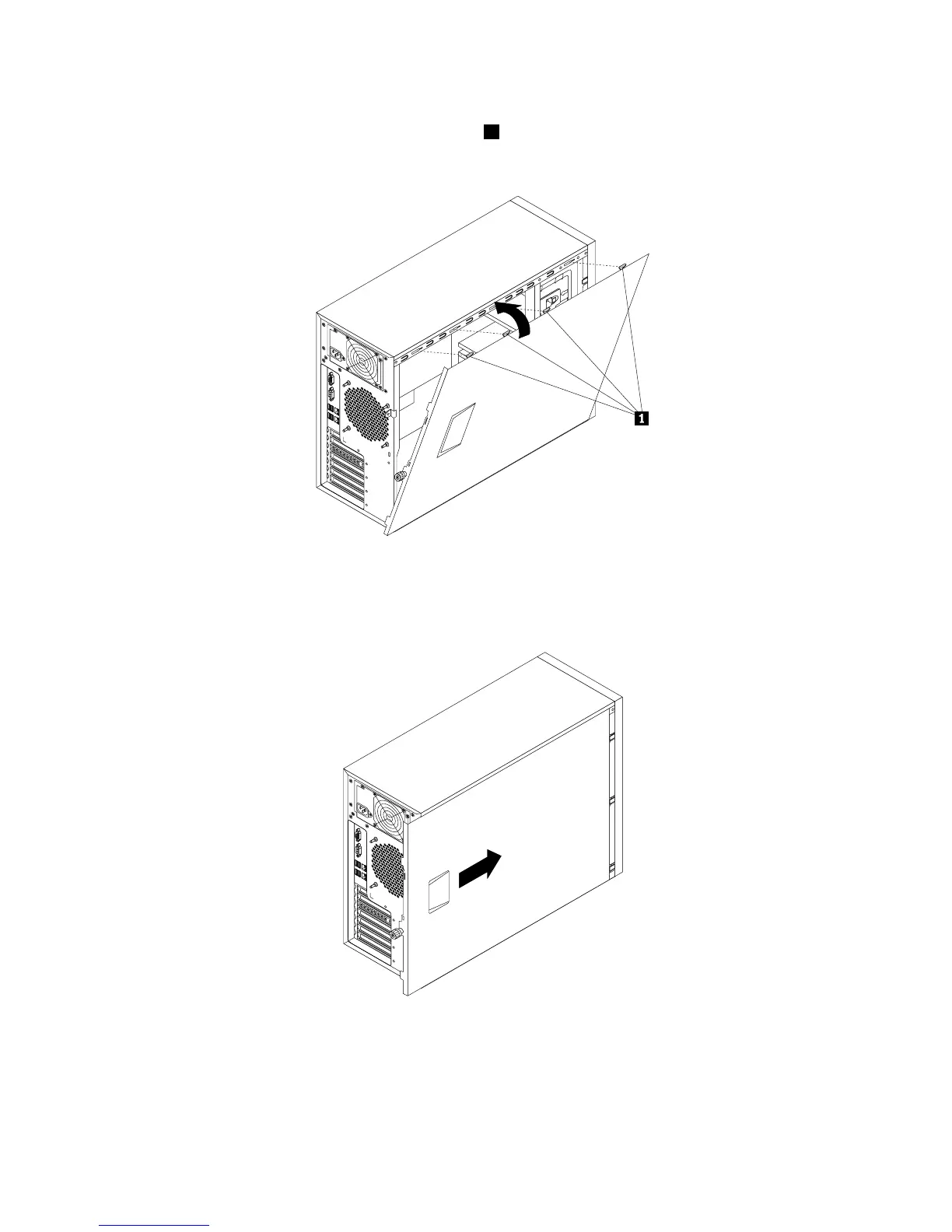

Figure113.Closingtheservercover

5.Slidetheservercovertothefrontofthechassisuntilitsnapsintoposition.

Figure114.Installingtheservercover

6.Tightenthethumbscrewontheservercovertosecuretheservercoverinplace.

178ThinkServerTS430HardwareMaintenanceManual
