3.PositiontheThunderboltMemoryModuleabovetheLenovoThinkServerRAID720iPCIeAdapterand
alignthetwoholesintheThunderboltMemoryModulewiththetwopinsontheadapter.Then,lowerthe
ThunderboltMemoryModulestraightdownuntilitissecurelyseated.

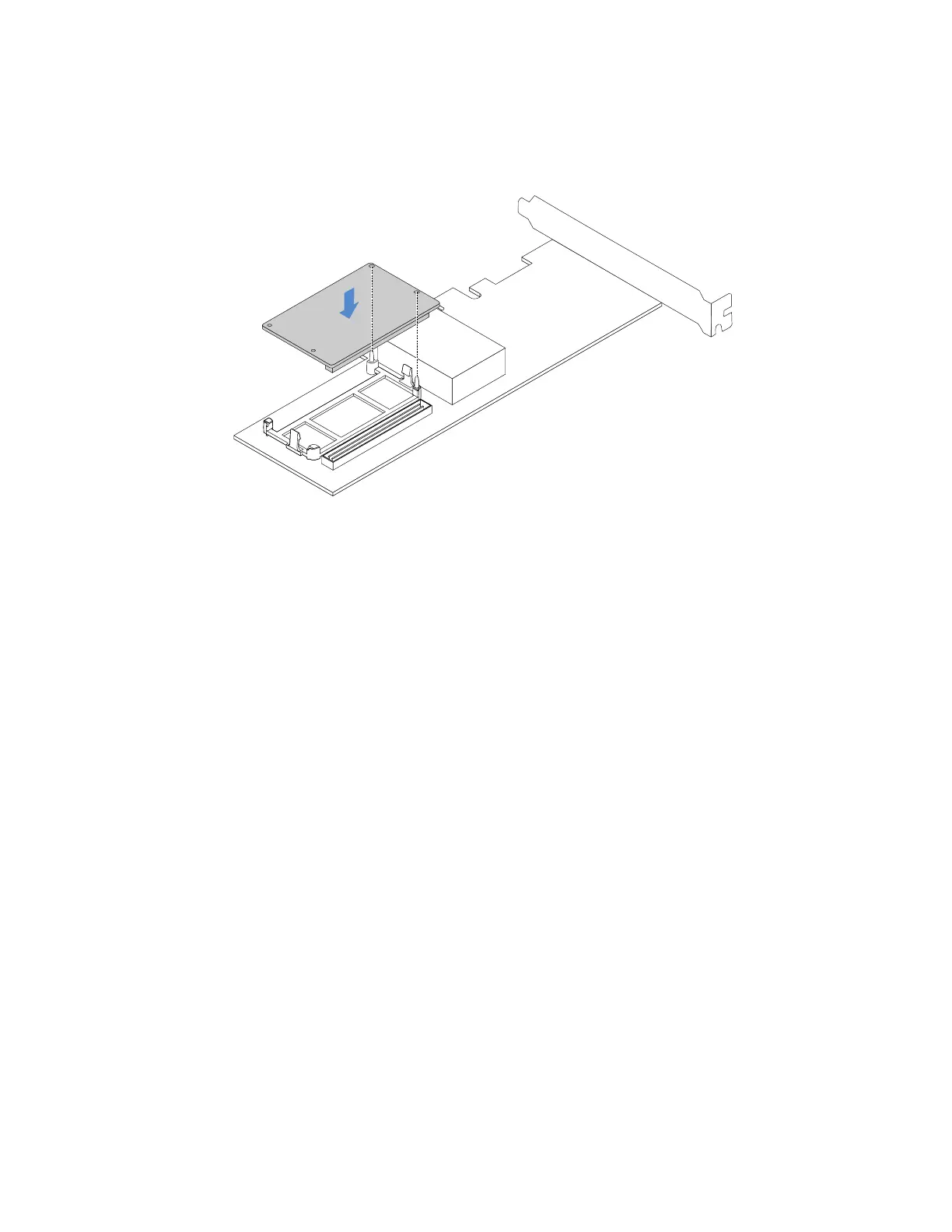

Figure74.InstallingtheThunderboltMemoryModule
4.InstalltheLenovoThinkServerRAID720iPCIeAdapterwiththeThunderboltMemoryModule.See
“InstallingaPCIecard”onpage63
.
LenovoThinkServerRAID520iupgradekey
TheLenovoThinkServerRAID520iupgradekey(hereinafterreferredtoasRAID520ikey)activatestheRAID
5levelforadvancedSATAorSAShardwareRAID.IfyourserverhastheLenovoThinkServerRAID520iPCIe
Adapterinstalled,youcanpurchaseaRAID520ikeyandinstallittotheJ3connectorontheRAIDcard.For
informationaboutconnectorsontheRAIDcard,see“RAIDcard”onpage27
.
•“RemovingtheRAID520ikey”onpage102
•“InstallingtheRAID520ikey”onpage103
RemovingtheRAID520ikey
Notes:
•IfyouremovetheRAID520ikey,thehardwareRAID5willbedisabled.
•RemovingtheupgradekeymightimpactyourRAIDconfigurations.Backupyourdatabeforeyoubegin
toavoidanydatalossduetoaRAIDconfigurationchange.
ToremovetheRAID520ikey,dothefollowing:
1.Prepareyourserverandremovetheservercover.See“Preparingyourserverinadvanceandremoving
theservercover”onpage57.
2.LocatetheLenovoThinkServerRAID520iPCIeAdapter.See“Servercomponents”onpage22.
