1.Prepareyourserverandremovetheservercover.See“Preparingyourserverinadvanceandremoving
theservercover”onpage57
.
2.Laytheserveronitssideforeasieroperation.
3.Locatethememoryslotsonthesystemboardandremovethememorydummyifnecessary.
4.Ensurethattheretainingclipsarefullyopen.Theninstallthememorymoduleintotheslotuntilthe
retainingclipsarecompletelyclosed.
xxx xxxx xxx-xxxxx-x-x-xx-xx
xxxxxxxxxxxxx-xx xx xx xxxx
xxx xxxx xxx-xxxxx-x-x-xx-xx
xxxxxxxxxxxxx-xx xx xx xxxx
xxx xxxx xxx-xxxxx-x-x-xx-xx
xxxxxxxxxxxxx-xx xx xx xxxx
xxx xxxx xxx-xxxxx-x-x-xx-xx
xxxxxxxxxxxxx-xx xx xx xxxx
1
2

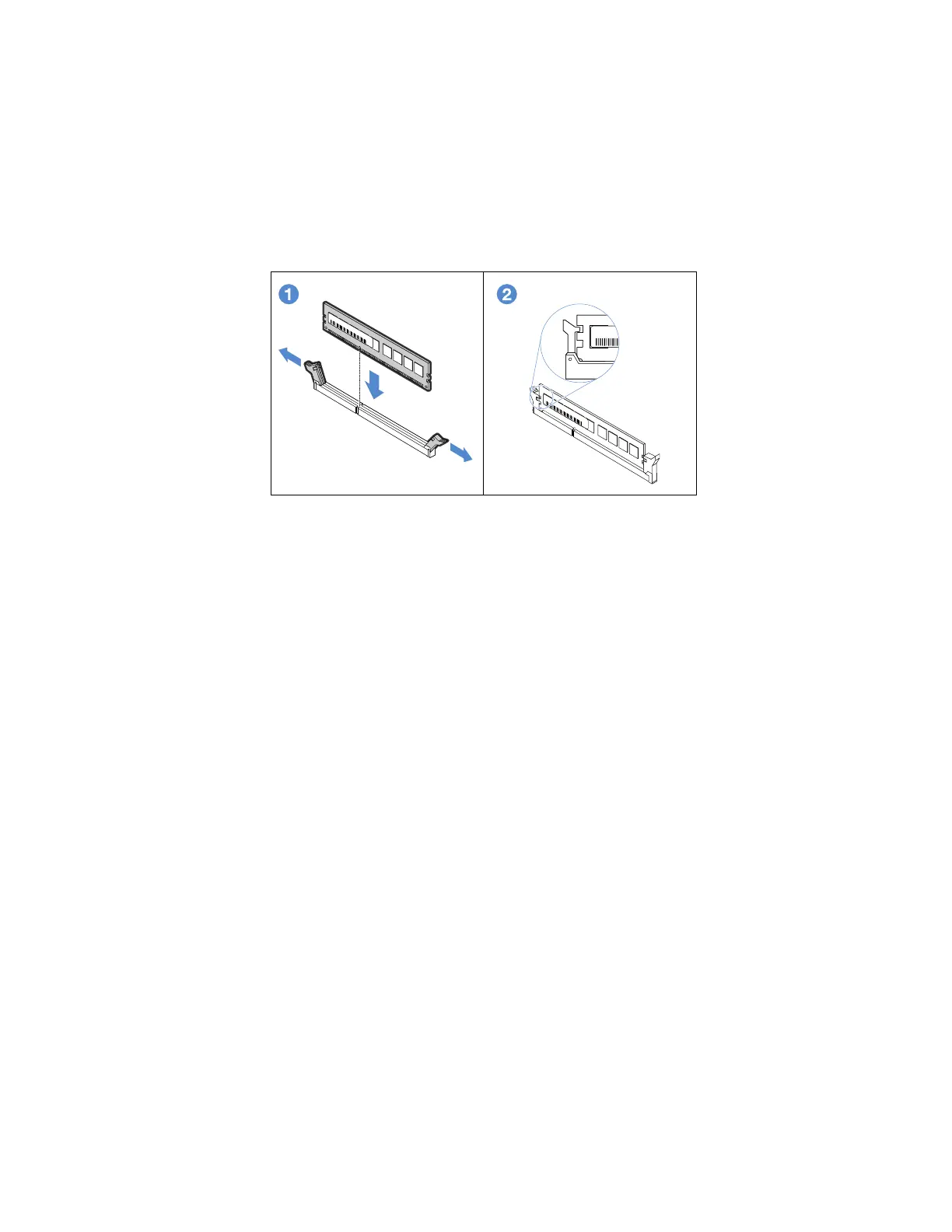

Figure26.Installingthememorymodule
PCIecard
ThistopicprovidesinstructionsonhowtoinstallorremoveaPCIecard,suchasanEthernetcard,aHost
BusAdapter,andanyothersupportedPCIecards.
•“RemovingaPCIecard”onpage62
•“InstallingaPCIecard”onpage63
Theinstallationortheremovalprocedureisbasedonthescenariothatyouwanttoinstallafull-height,
half-lengthPCIecard.Theprocedureissimilarifyouwanttoinstallafull-height,full-lengthPCIecard.
Note:ThePCIecardisextremelysensitivetoESD.Ensurethatyoureadandunderstand“Handling
static-sensitivedevices”onpage56firstandcarefullyperformtheoperation.
Notes:
•Dependingonthespecifictype,thePCIecardmightlookdifferentfromtheillustrationsinthistopic.
•UseanydocumentationthatcomeswiththePCIecardandfollowthoseinstructionsinadditionto
theinstructionsinthistopic.
RemovingaPCIecard
ToremoveaPCIecard,dothefollowing:
1.Prepareyourserverandremovetheservercover.See“Preparingyourserverinadvanceandremoving
theservercover”onpage57
.
2.Laytheserveronitssideforeasieroperation.
3.LocatethePCIecardyouwanttoremove.DependingonthetypeofaPCIecard,youmightalsoneed
todisconnectallcablesfromaPCIecard,thesystemboard,orthehot-swapdrivebackplane.
4.IfthePCIecardissecuredbyaretainingclip,disengagethecardfromtheretainingclipfirst.
62ThinkServerTS460UserGuideandHardwareMaintenanceManual
