4.Openthecardlatch.PositionthenewPCIecardoverthePCIeslot,andthencarefullypressthePCIe
cardstraightdownuntilitissecurelyseatedintheslot.Closethecardlatchasshowntosecure
thePCIecardinplace.
1
2

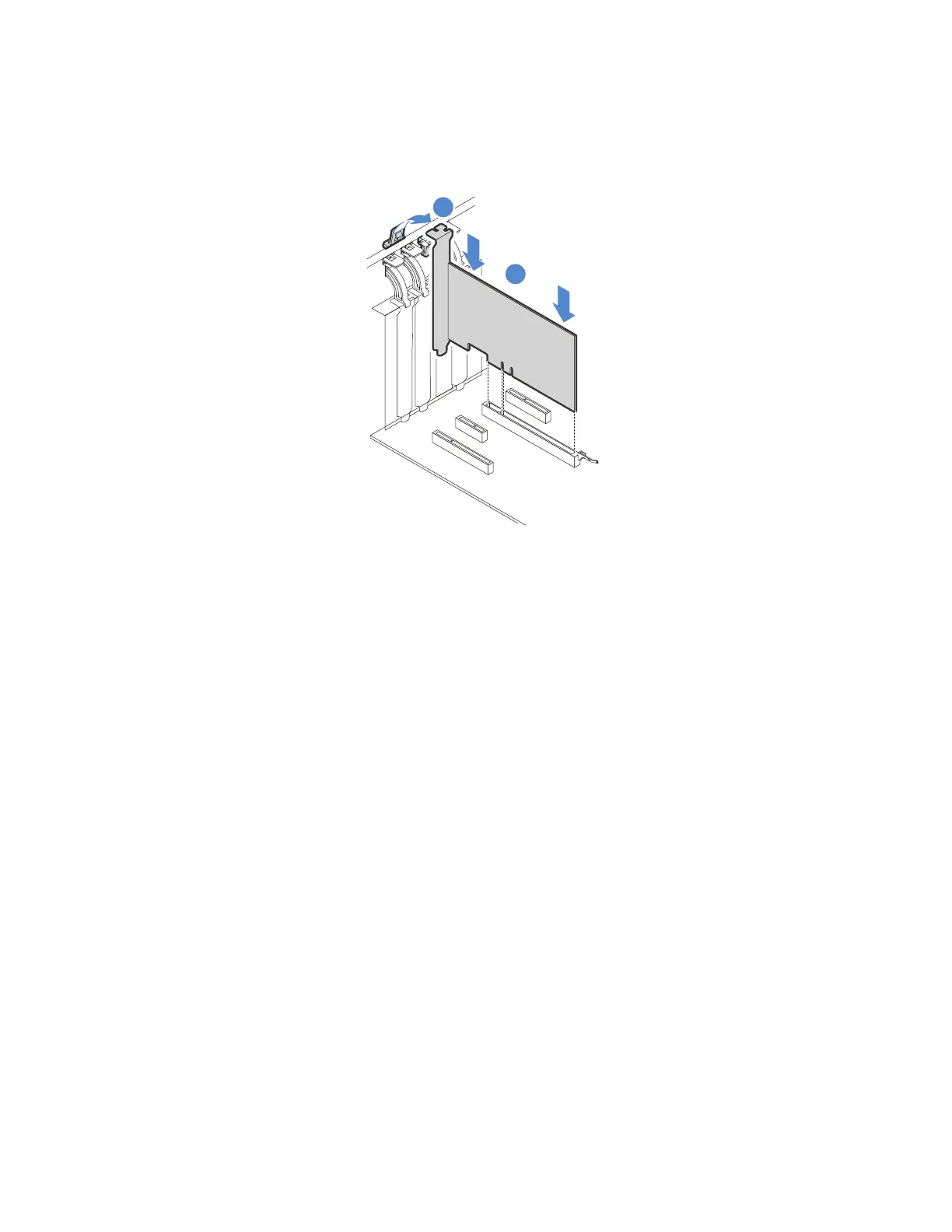

Figure28.InstallingaPCIecard
5.DependingonthetypeofthePCIecard,youmightneedtoconnectanyrequiredcables.Refertothe
documentationthatcomeswiththePCIecardforspecificinformation.
ToinstallarequireddevicedriverforthePCIecard,gototheLenovoSupportWebsiteat
http://www.lenovo.com/drivers.DownloadthedriverforthePCIecardanditsREADMEfile,andfollowthe
instructionsintheREADMEfiletoinstallthedriver.
Opticaldrive
•“Removingtheopticaldrive”onpage65
•“Installingtheopticaldrive”onpage66
TheEMIintegrityandcoolingoftheserverareprotectedbyhavingalldrivebayscoveredoroccupied.Your
serverhastwoopticaldrivebays.Ifonlyoneopticaldriveisinstalledinthelowerbay,theupperbayis
coveredbyametalEMIshieldonthechassisandalsoaplasticshieldonthefrontbezel.Whenyouinstalla
secondaryopticaldrive,savetheremovedEMIshieldfromthechassisandplasticshieldfromthefrontbezel
incaseyoulaterremovethedriveandneedtheshieldstocoverthedrivebay.
Attention:AnunoccupieddrivebaywithoutanyotherprotectionmightimpacttheEMIintegrityandcooling
oftheserver,whichmightresultinoverheatingorcomponentdamage.TomaintaintheEMIintegrityand
coolingoftheserver,installanewopticaldriveassoonasyouremovethefailingoneortheprotectiveshields.
CAUTION:
Whenlaserproducts(suchasCD-ROMs,DVDdrives,fiberopticdevices,ortransmitters)are
installed,notethefollowing:
•Donotremovethecovers.Removingthecoversofthelaserproductcouldresultinexposureto
hazardouslaserradiation.Therearenoserviceablepartsinsidethedevice.
