System board components
The illustration in this section shows the component locations on the system board.

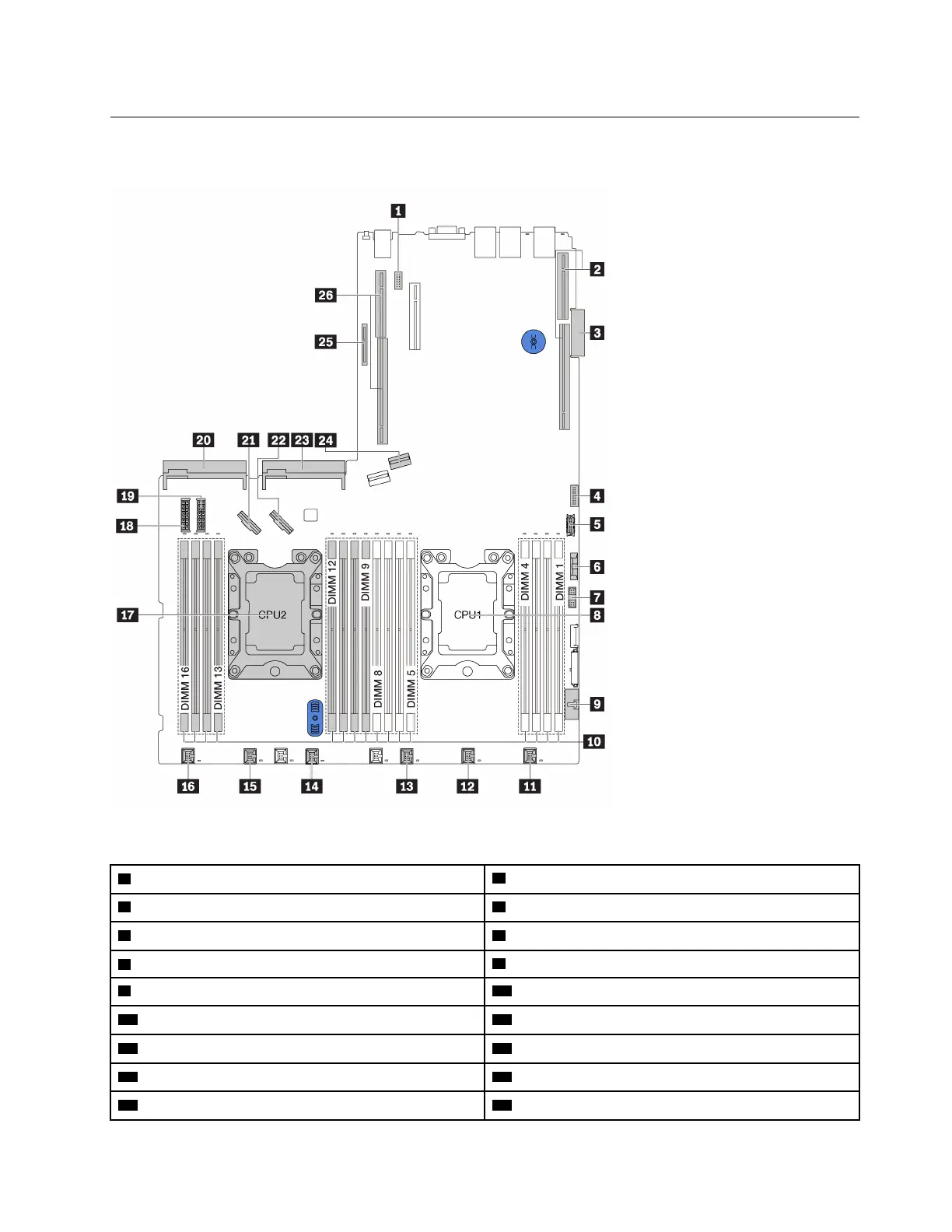

Figure 11. System board components
1 Serial-port-module connector
2 Riser 1 slot
3 LOM adapter connector 4 TCM
1
/TPM
2
connector (for Chinese Mainland only)
5 Front USB connector 6 CMOS battery
7 Front VGA connector
8 Processor 1 socket
9 Operator-information-panel connector 10 DIMM slots (16)
11 System fan 1 connector 12 System fan 2 connector
13 System fan 3 connector 14 System fan 4 connector
15 System fan 5 connector 16 System fan 6 connector
17 Processor 2 socket 18 Backplane power connector 1
Chapter 2. Server components 27
