Backplane for eight 2.5-inch hot-swap drives
Use this section to understand the connectors on the backplane and internal cable routing for server models
with eight 2.5-inch hot-swap drives.

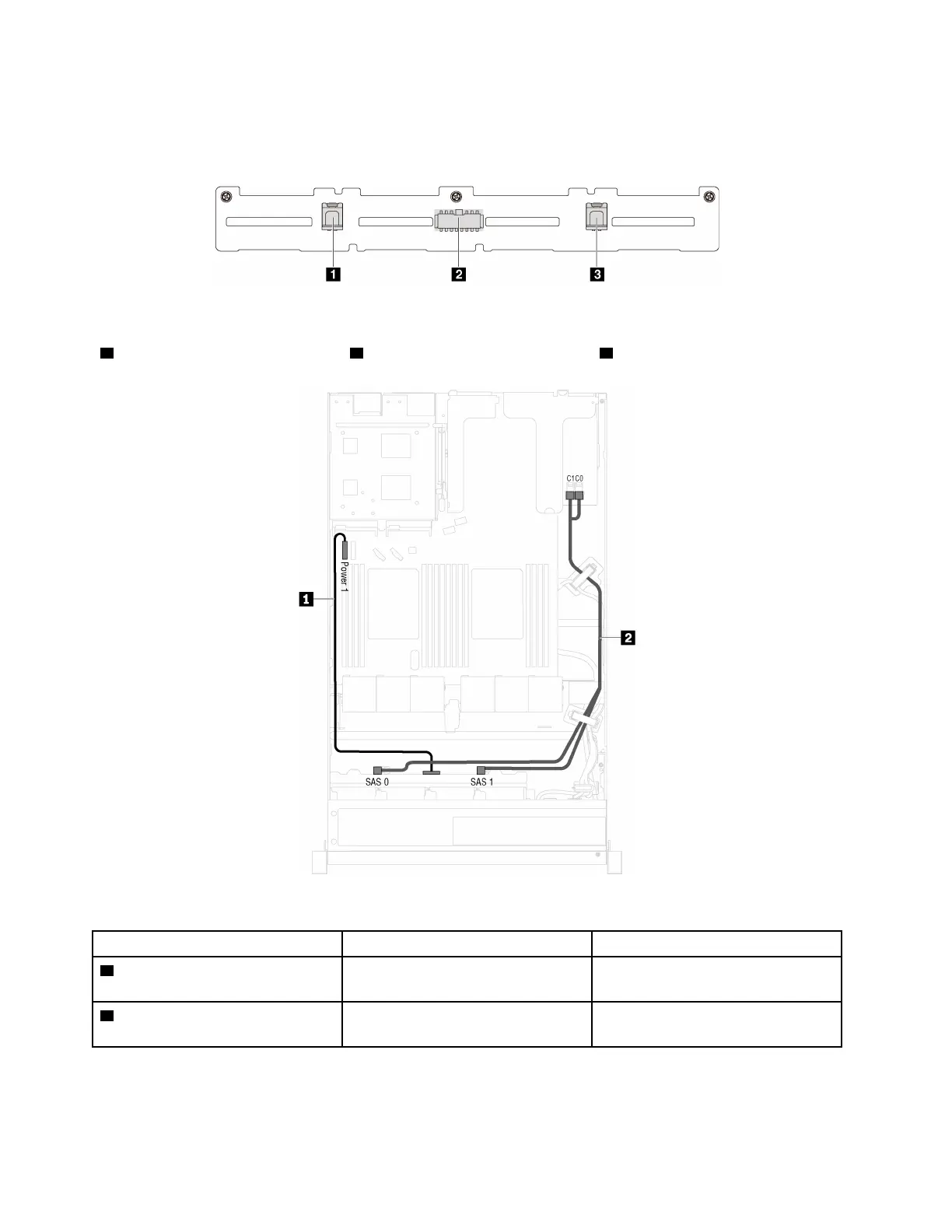

Figure 17. Connectors on the backplane for eight 2.5-inch hot-swap drives
1 SAS 1 connector
2 Power connector
3 SAS 0 connector
Figure 18. Cable routing for server models with eight 2.5-inch hot-swap drives
Cable
From To
1 Power cable Power connector on the backplane Backplane power connector 1 on the
system board
2 SAS signal cable SAS 0 and SAS 1 connectors on the
backplane
C0 and C1 connectors on the RAID
adapter
