Backplate for four 3.5-inch simple-swap drives
Use this section to understand the internal cable routing for the server model with four 3.5-inch simple-swap
drives.

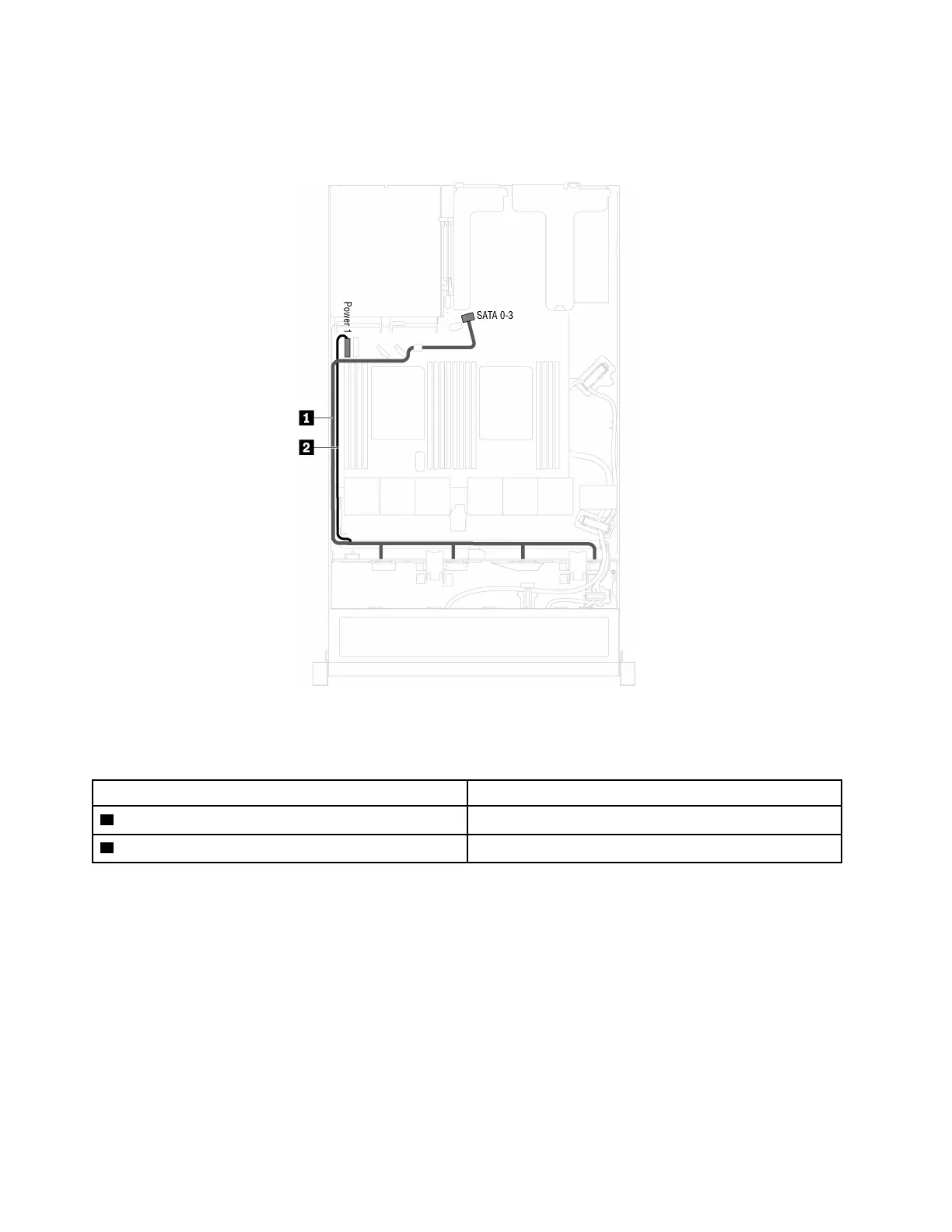

Figure 24. Cable routing for server models with four 3.5-inch simple-swap drives
The simple-swap drive backplate assembly comes with a power cable and a SATA signal cable.
From To
1 Power cable of the backplate assembly Backplane power connector 1 on the system board
2 SATA signal cable of the backplate assembly SATA 0-3 connector on the system board
