Server models with four 2.5-inch NVMe drives and no RAID adapter
Note: NVMe drives are only supported in drive bays 6–9.

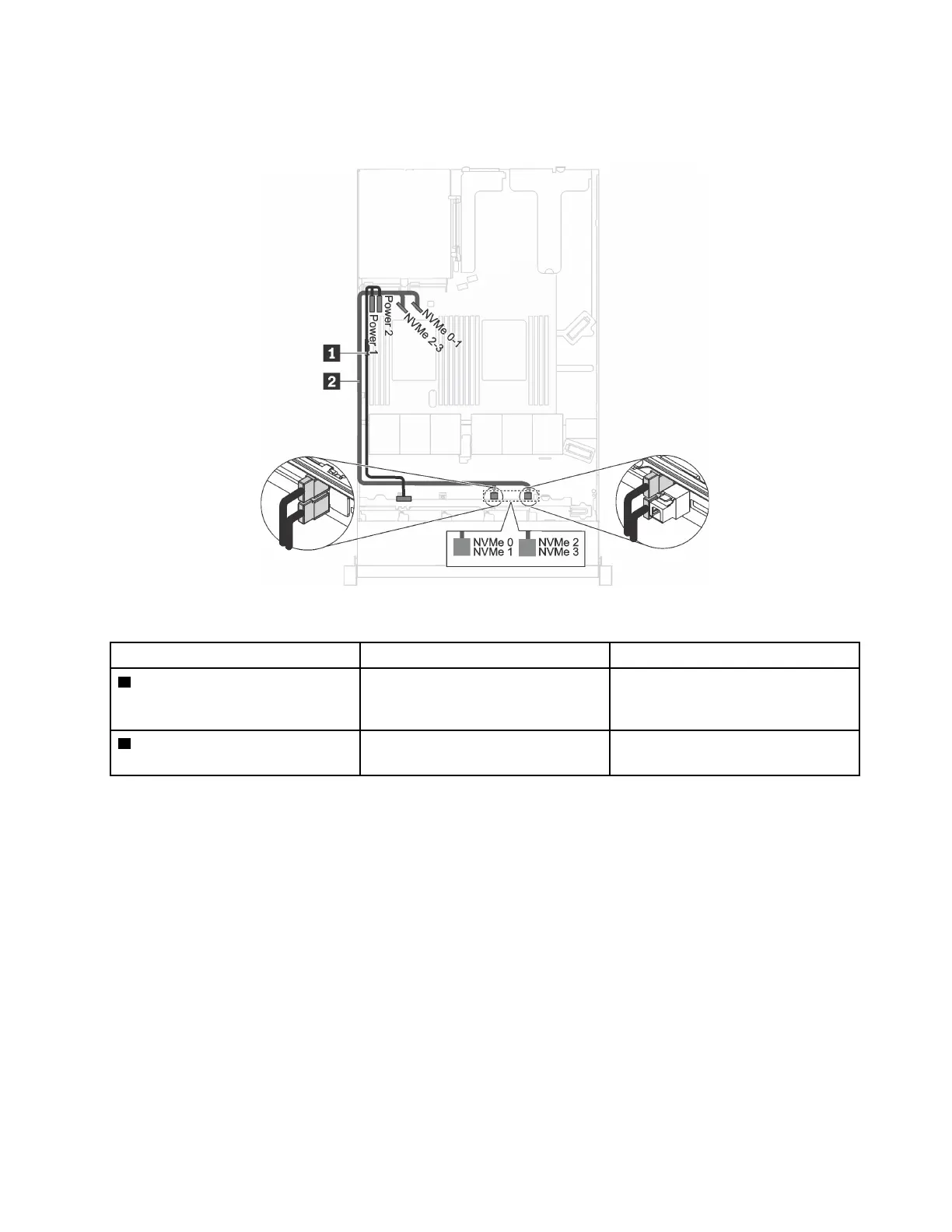

Figure 23. Cable routing for server models with four 2.5-inch NVMe drives, and no RAID adapter
Cable
From To
1 Power cable Power connector on the backplane Backplane power connector 1 and
backplane power connector 2 on the
system board
2 NVMe signal cable NVMe 0, NVMe 1, NVMe 2, and
NVMe 3 connectors on the backplane
NVMe 0-1 connector and NVMe 2-3
connector on the system board
