Backplane for ten 2.5-inch hot-swap drives
Use this section to understand the connectors on the backplane and the internal cable routing for server
models with ten 2.5-inch hot-swap drives.

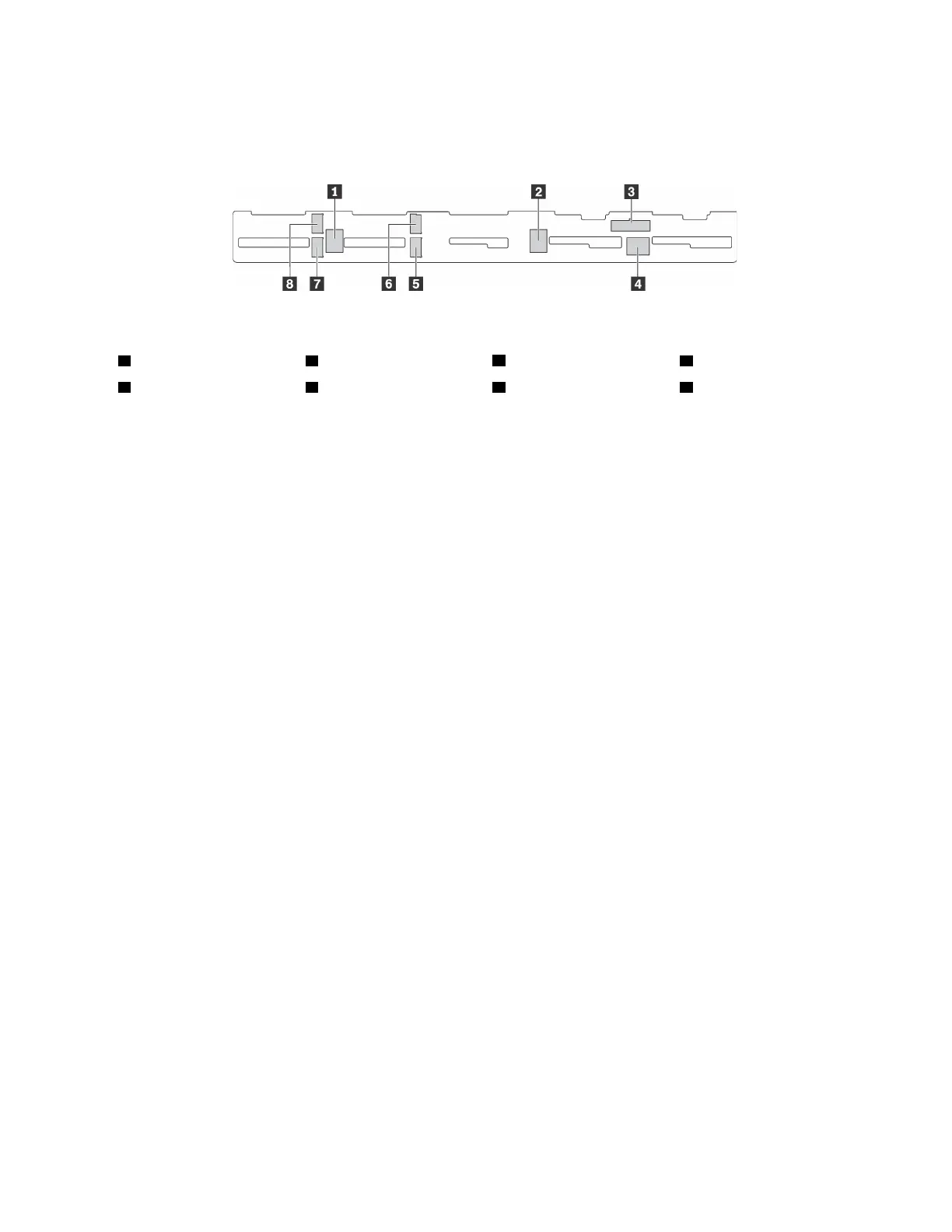

Figure 19. Connectors on the backplane for ten 2.5-inch hot-swap drives
1 SAS 2 connector 2 SAS 1 connector
3 Power connector
4 SAS 0 connector
5 NVMe 1 connector 6 NVMe 0 connector 7 NVMe 3 connector 8 NVMe 2 connector
Chapter 2. Server components 37
