Server models with six 2.5-inch SAS/SATA drives, four 2.5-inch SAS/SATA/NVMe drives, and one 16i
RAID adapter
Note: NVMe drives are only supported in drive bays 6–9.

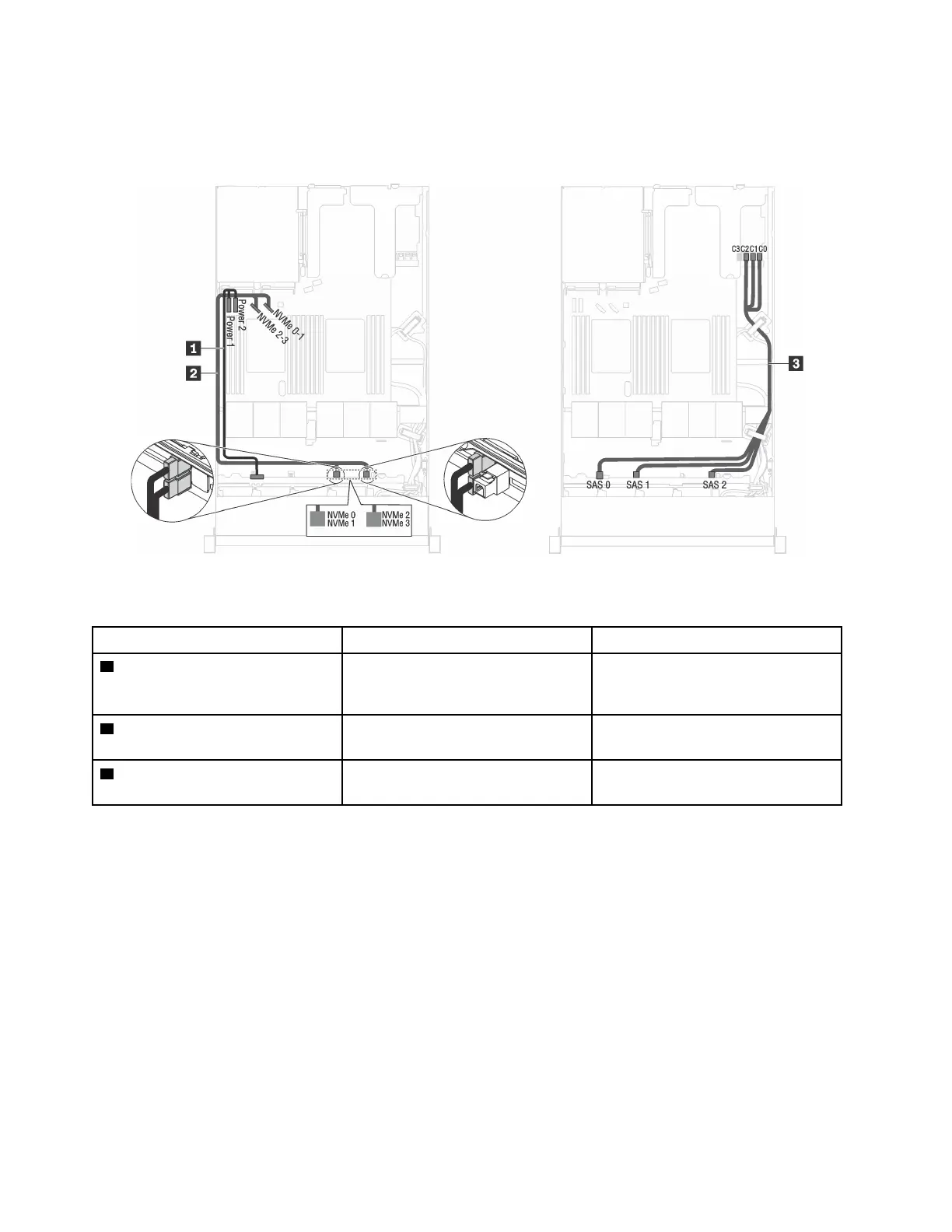

Figure 20. Cable routing for server models with six 2.5-inch SAS/SATA drives, four 2.5-inch SAS/SATA/NVMe drives, and
one 16i RAID adapter
Cable From To
1 Power cable Power connector on the backplane Backplane power connector 1 and
backplane power connector 2 on the
system board
2 NVMe signal cable NVMe 0, NVMe 1, NVMe 2, and
NVMe 3 connectors on the backplane
NVMe 0-1 connector and NVMe 2-3
connector on the system board
3 SAS signal cable SAS 0, SAS 1, and SAS 2 connectors
on the backplane
C0, C1, and C2 connectors on the
RAID adapter
38 ThinkSystem SR570 Maintenance Manual
