Step 4. Slide the power cable assembly forward slightly to remove it from the tray.

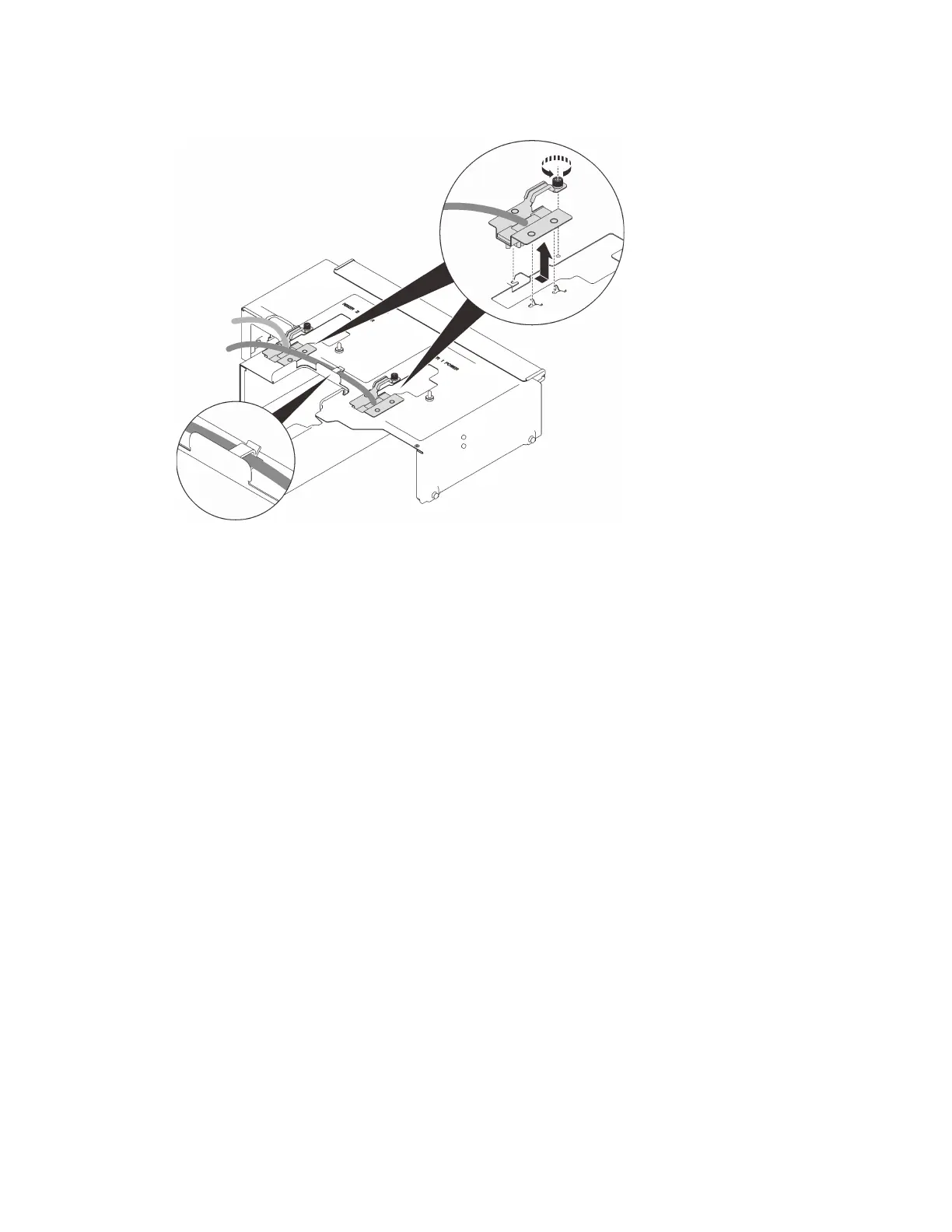

Figure 149. Removing the power cable assembly
After this task is completed
• If necessary, install a replacement unit (see
“Install the 4U PCIe riser power cable assembly” on page 261).
• If you are instructed to return the component or optional device, follow all packaging instructions, and use
any packaging materials for shipping that are supplied to you.
Demo video
Watch the procedure on YouTube
Install the 4U PCIe riser power cable assembly
Follow instructions in this section to install the 4U PCIe riser power cable assembly.
About this task
Attention:
• Go over
“Installation Guidelines” on page 137 to ensure that you work safely.
• Touch the static-protective package that contains the component to any unpainted metal surface on the
server; then, remove it from the package and place it on a static-protective surface.
Procedure
Step 1. Make sure the power cable is of the appropriate length for the slot.
Chapter 4. Hardware replacement procedures 261
