Installation
4-22
SHB9300CRV EN 2.0

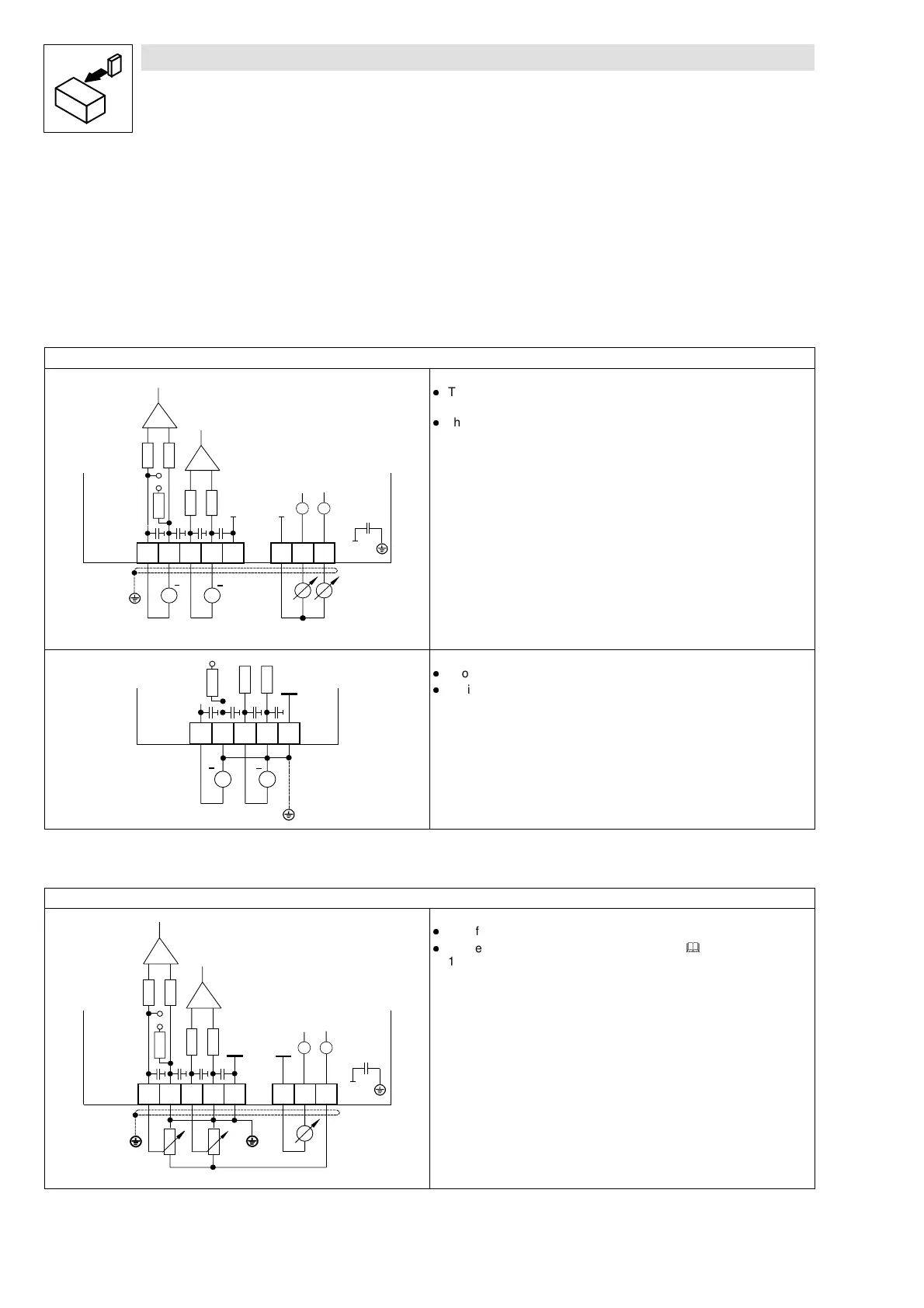

4.2.8.3 Connection diagrams
Connection of analog signals
Analog signals are connected via the 2 x 4-pole terminal block X6.
Depending on the use of the analog input, the jumper of X3 must be set accordingly.
Connection for external voltage supply
+
1234 7 63
100k
100k
100k
X6
GND1 GND1
+
X6
3,3nF
100k
7
U
62
U
242R
X3
93XX
==
GND1
STOP!
l
The maximum permitted voltage difference between an external voltage
source and theGND1 (terminal X6/7) of the controller is 10V (common mode).
l
The maximum permitted voltage difference between GND1 (terminal X6/7)
and the PE of the controller is 50V.
+
1234
100k
GND1
+
X6
3,3nF
100k
7
242R
==
93XX
Limit the voltage difference
l
by overvoltage clamping components or
l
by direct connection of terminal(s) X6/2, X6/4 and X6/7 to GND1 and PE (see
figure).
Connection for internal voltage supply
1234 7 63
100k
100k
100k
X6
GND1
GND1
X6
3,3nF
100k
7
U
62
U
242R
X3
10k
10k
93XX
GND1
Configuration of the internal voltage supply:
l
Set a freely assignable analog output (AOUTx) to HIGH level.
l
E. g. terminal X6/63: Assign FIXED100% to C0436 (
&
7-10 ),
10V are thus applied across terminal X6/63.
Note!
Use one of the predefined configurations in C0005 for this application. With
C0005 = XX1X (e. g. 1010 for speed control with control via terminals) FIXED
100% is automatically assigned to the output X6/63 (corresponds to 10 V at the
output X6/63).
