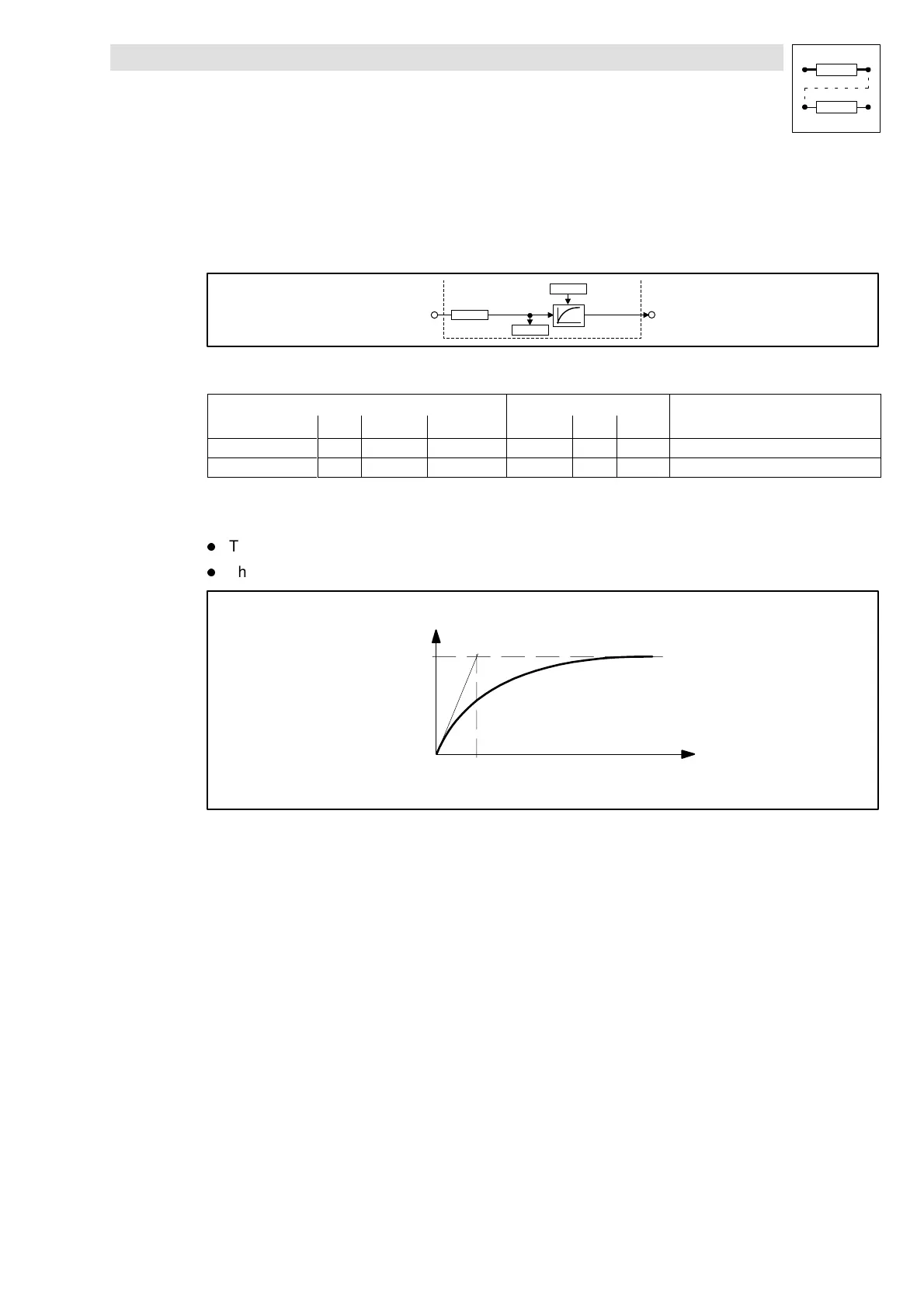

7.6.62 First order delay element (PT1)
Purpose
Filter and delay analog signals.
PT1-1
PT1-1-OUT
PT1-1-IN
C0642
C0640
C0641
Fig. 7-154 First order delay element (PT1-1)
Signal
Source Note
Name Type DIS DIS format CFG List Lenze
PT1-1-IN a C0642 dec [%] C0641 1 1000 -
PT1-1-OUT a - - - - - -
Function
l The delay T is set under C0640.
l The proportional value is fixed at K = 1.
t
T
K=1
Fig. 7-155 Delay T of the first-order delay element
