Lenze 9325 User Manual

Function block library
7-179

SHB9300CRV EN 2.0
7.6.56 Phase addition block (PHADD)
Purpose
Adds or subtracts phase signals, depending on the input used.
+
+
-
PHADD1
PHADD1-OUT
PHADD1-IN1
C 1201/1
PHADD1-IN2
C 1201/2
PHADD1-IN3
C 1201/3
± 2 -1
C 1200/1
C 1200/2
C 1200/3
31
PHADD1-OUT2

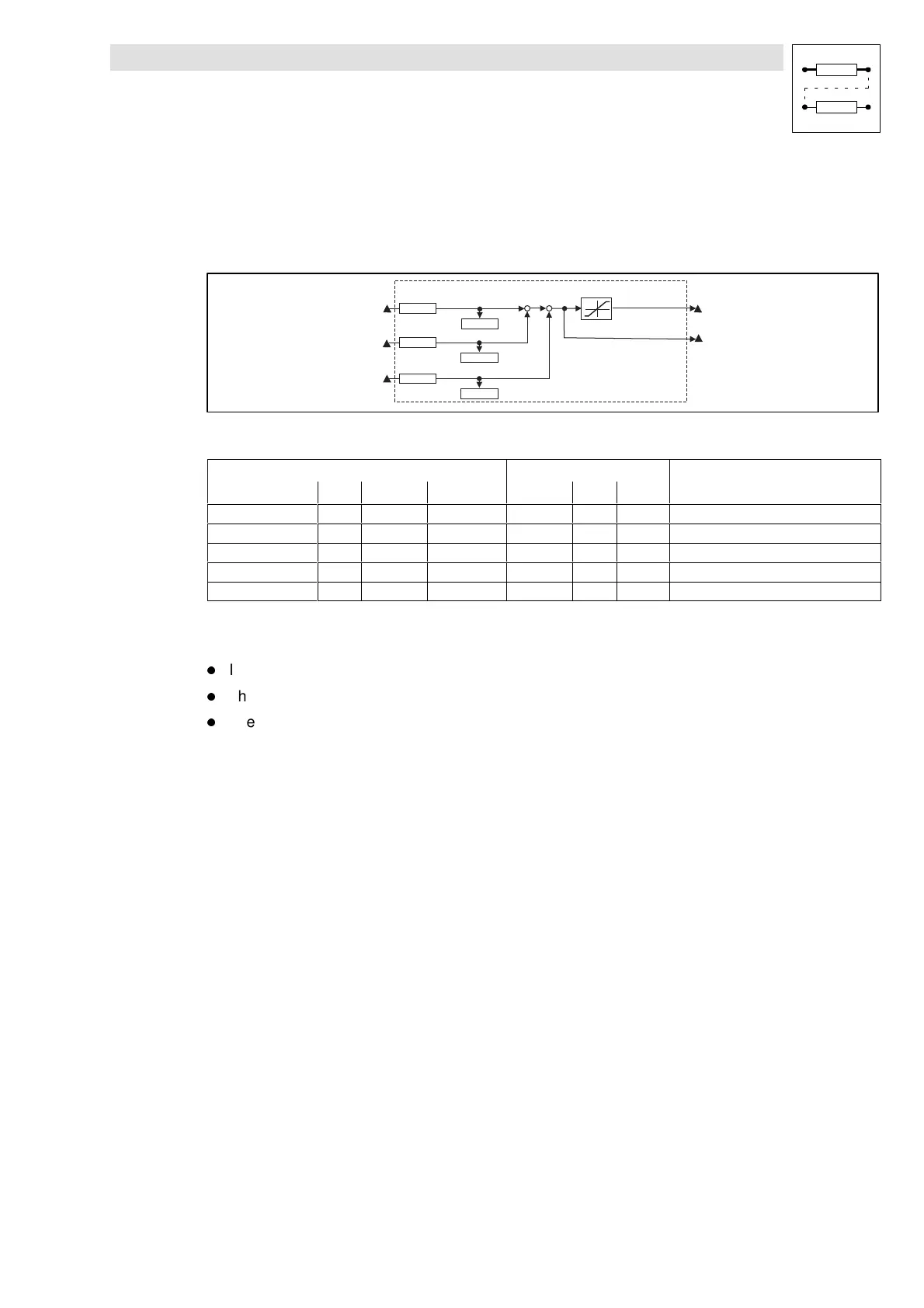

Fig. 7-141 Phase addition block (PHADD1)
Signal
Source Note
Name Type DIS DIS format CFG List Lenze
PHADD1-IN1 ph C1200/1 dec [inc] C1201/1 3 1000 Adding input
PHADD1-IN2 ph C1200/2 dec [inc] C1201/2 3 1000 Adding input
PHADD1-IN3 ph C1200/3 dec [inc] C1201/3 3 1000 Subtracting input
PHADD1-OUT ph - - - - - limited to ±2147483647
PHADD1-OUT2 ph - - - - - -
Function
l Input PHADD1-IN1 is added to the input PHADD1-IN2.
l The input PHADD-IN3 is subtracted from the calculated result.
l The result of the subtraction is then
– limited to
±2147483647
and output to PHADD1-OUT.
– output to PHADD1-OUT2 unlimited.
