Function block library
7-75
 SHB9300CRV EN 2.0

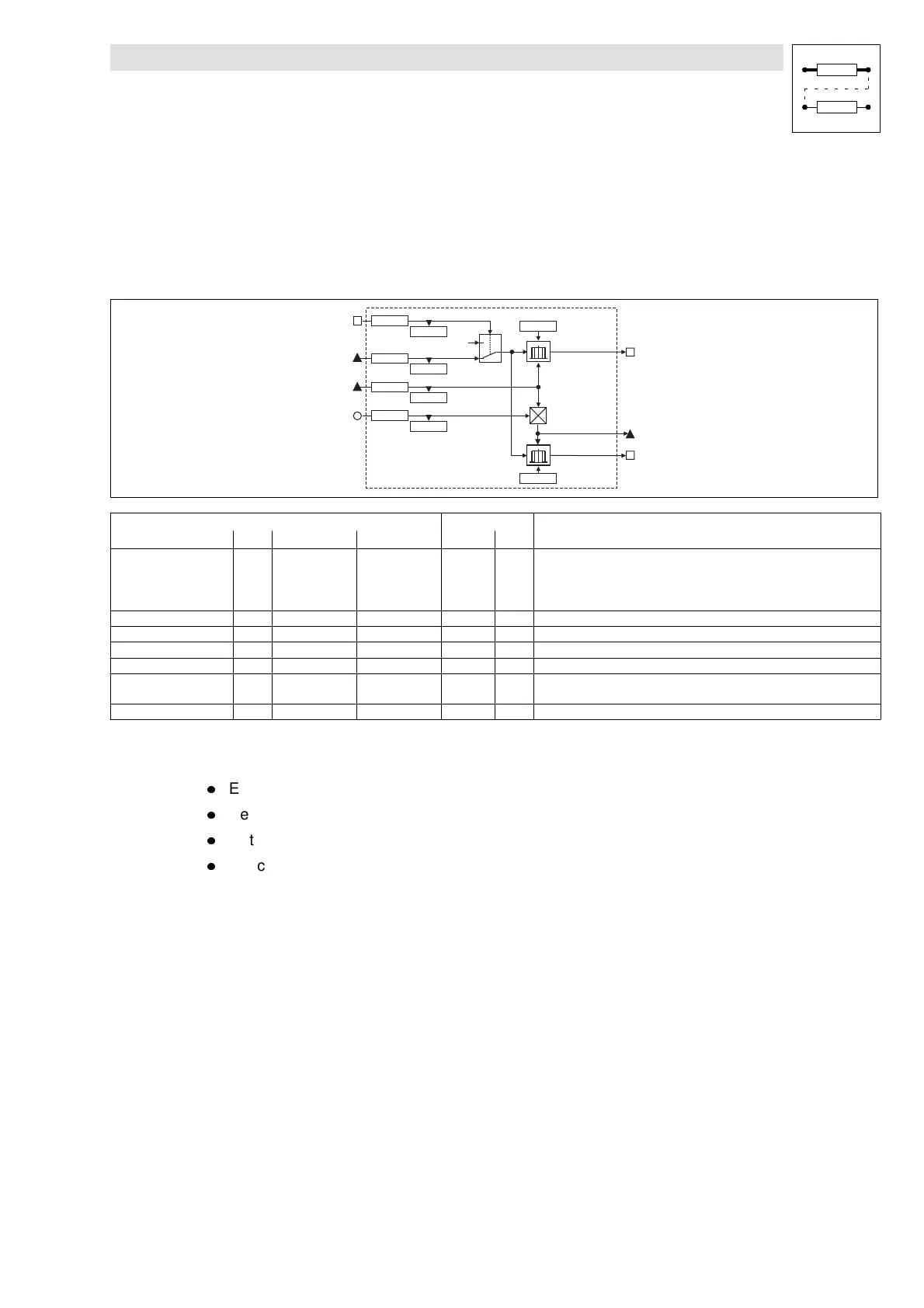

7.6.17 Contouring error monitoring (CERR)
One function block (CERR1) is available.
Purpose
Contouring error monitoring with pre-warning stage
C 1380/1
C 1389/1
CERR1
CERR1-ERR
CERR1-PHI-IN
C 1389/2
C 1388/1
C 1388/2
CERR1-W ARN
CERR1-LIM
CERR1-W FAC
CERR1-DISABLE
C 1380/2
1
0
0
C 1387/1
C 1386/1
C 1385/1
C 1384/1
CERR1-W -LIM
Signal Source
Note
Name Type DIS DIS format CFG List
N
o
t
e
CERR1- WFAC a 1385/1 dec [%] 1384/1 1 Reduction factor for CERR1-WARN:
+100% = no reduction
< 100% = reduction
> 100% = increase
CERR1-DISABLE d 1387/1 bin 1386/1 1 HIGH = se ts CERR1-WARN a nd CERR1- EER = 0
CERR1-PHI-IN ph 1389/1 dec [inc] 1388/1 4 Input
CERR1- LIM ph 1389/2 dec [inc] 1388/2 4 Switch threshold, the absolute value is generated from the input value
CERR1- ERR bin - - - - Input value CERR1-PHI-IN has exceeded the limit CERR1-LIM
CERR1-WARN bin - - - - Input value CERR1-PHI-IN has exceeded the limit CERR1-LIM *
CERR1-WFAC/100%
CERR1- WLIM ph - - - - Warning limit in inc
Function
l Evaluation of the contouring error
l Determination of the contouring error limits
l Output of status signals
l Deactivate output
