Function block library
7-220

SHB9300CRV EN 2.0

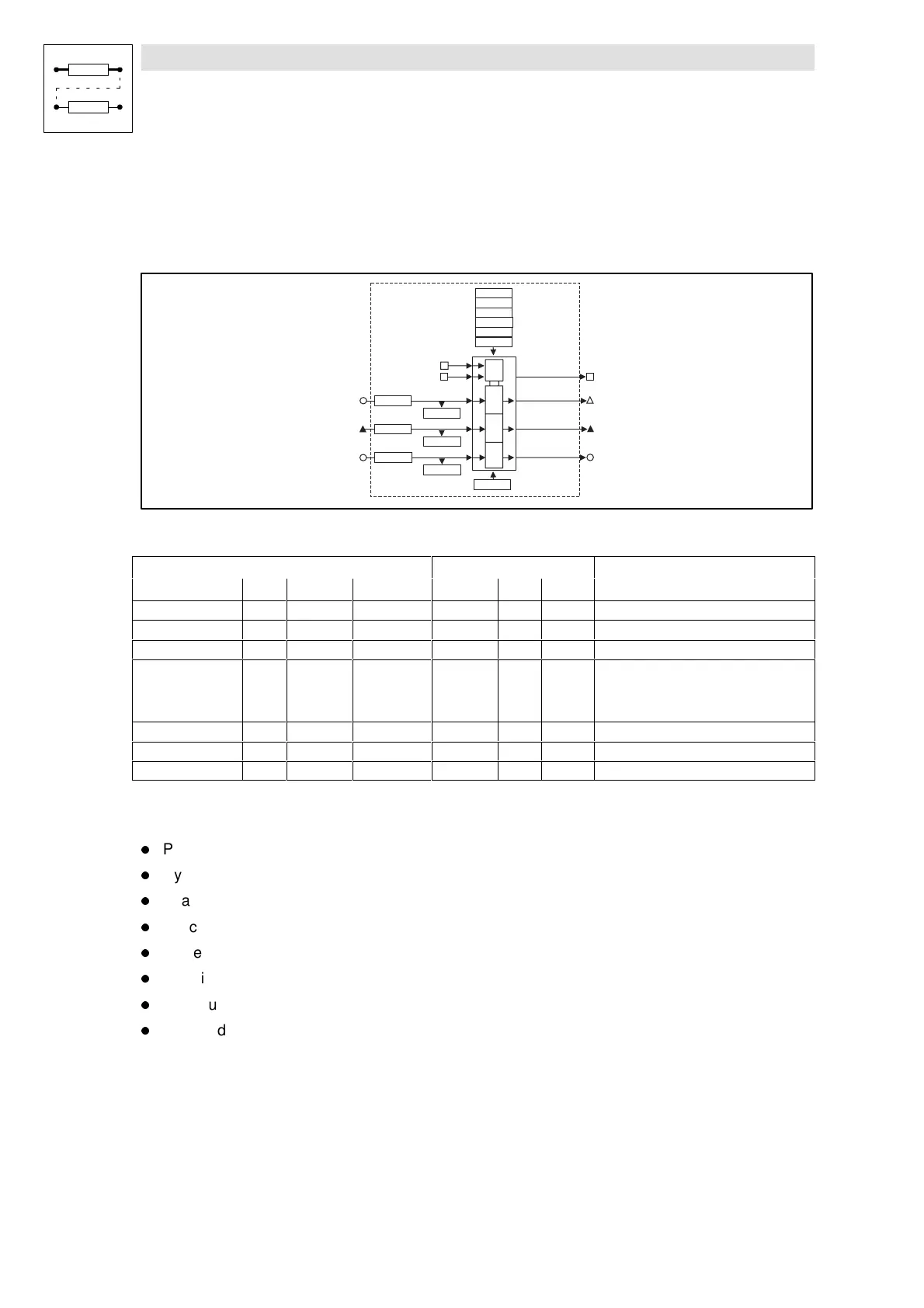

7.6.74 Multi-axis synchronization (SYNC)
Purpose
Synchronizes the control program cycle of the drives with the cycle of a higher-level control.
SYNC1
SYNC1-IN1
SYNC1-IN2
SYNC1-IN3
SYNC1-STAT
C 1127
C 1128
C 1129
C 1124
C 1125
C 1126
X5-E5
SYNC1-OUT1
SYNC1-OUT2
SYNC1-OUT3
CLK
X4
C 1123/1
C 1123/2
C 1121/2
C 1122
C 1121/1
C 1120
C 0363
Fig. 7-180 Multi-axis synchronization (SYNC1)
Signal
Source Note
Name Type DIS DIS format CFG List Lenze
SYNC1-IN1 a C1127 dec [inc] C1124 1 1000 -
SYNC1-IN2 ph C1128 dec [inc] C1125 3 1000 -
SYNC1-IN3 a 1129 dec C1126 1 1000
SYNC1-STAT d - - - - - After completion of the synchronization
SYNC1-STAT switches to HIGH.
If the synchronization is quit, SYNC1-STAT
switches to LOW.
SYNC1-OUT1 phd - - - - - -
SYNC1-OUT2 ph - - - - - -
SYNC1-OUT3 a - - - - - -
Function
l Possible axis synchronizations
l Cycle times
l Phase shift
l Synchronization window for synchronization via terminal (SYNC WINDOW)
l Correction value of phase controller (SYNC CORRECT)
l Fault indications
l Configuration examples
l Standardization
