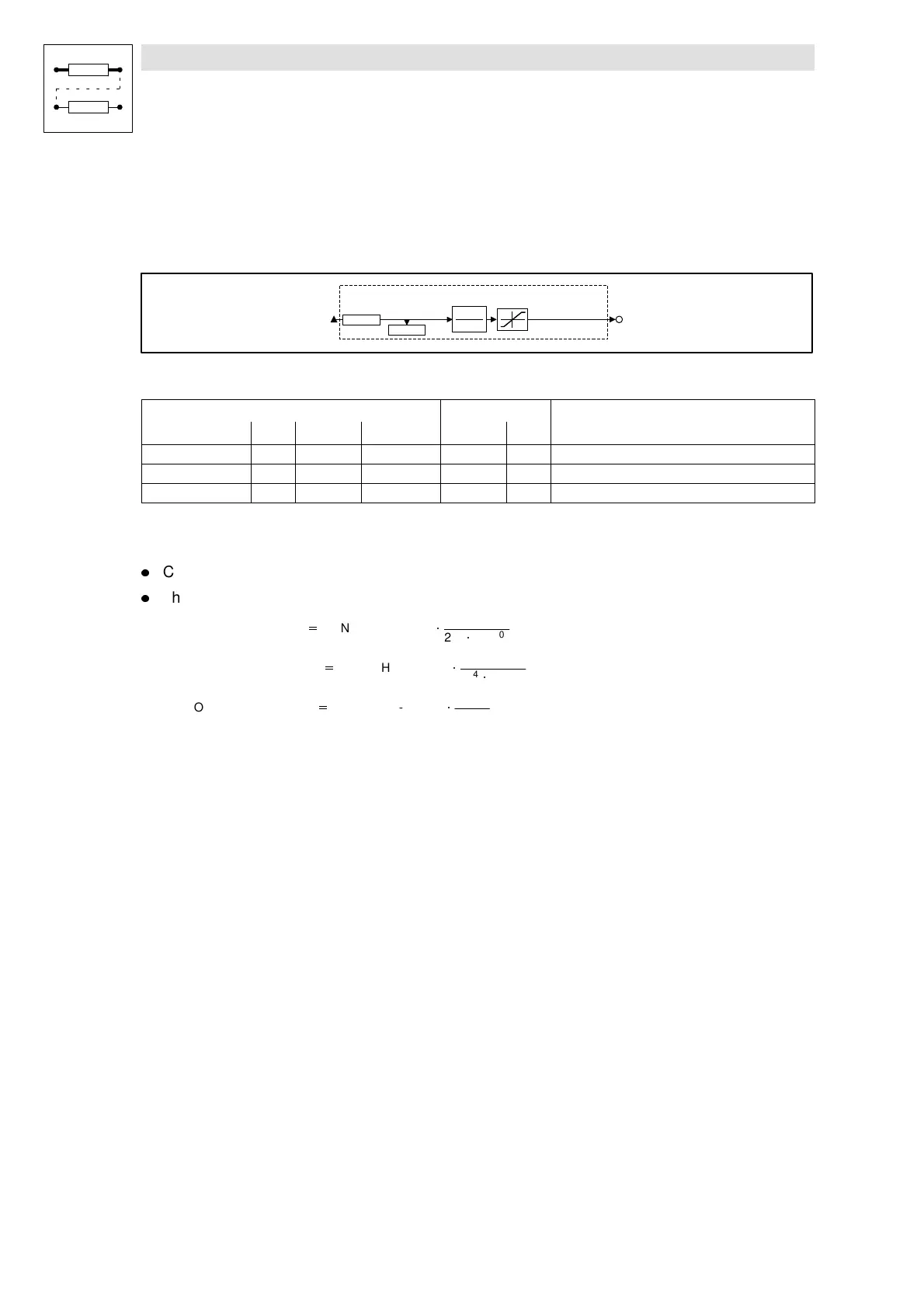

7.6.21 Phase conversion (CONVPHA)
Purpose
Converts a phase signal into an analog signal and into a speed signal.
CONVPHA1
CONVPHA1-OUT
C1002
± 199,99%
CONVPHA1-IN
C1001
2
C1000
1
Fig. 7-63 Phase conversion (CONVPHA1)
Signal
Source Note
Name Type DIS DIS format CFG List
CONVPHA1-IN ph C1002 dec [inc] C1001 3 -
CONVPHA1-OUT a - - - - Limited to ±199.99 %, remainder considered
CONVPHA1-OUT2 phd - - - - Limited to ±32767 rpm, remainder considered
Function
l Conversion with adaptation using divisor.
l The conversion is done according to the formulae:
CONVPHA1-OUT [%]  CONVPHA1-IN [inc] ô
100
2
14
ô 2
C1000
CONVPHA1-OUT2 [rpm]  CONVPHA1-IN [inc] ô
1875
2
14
ô 2
C1000
CONVPHA1-OUT2 [inc]  CONVPHA1-IN [inc] ô
1
2
C1000
