Lenze 9325 - Flipflop (FLIP)

Function block library
7-138

SHB9300CRV EN 2.0

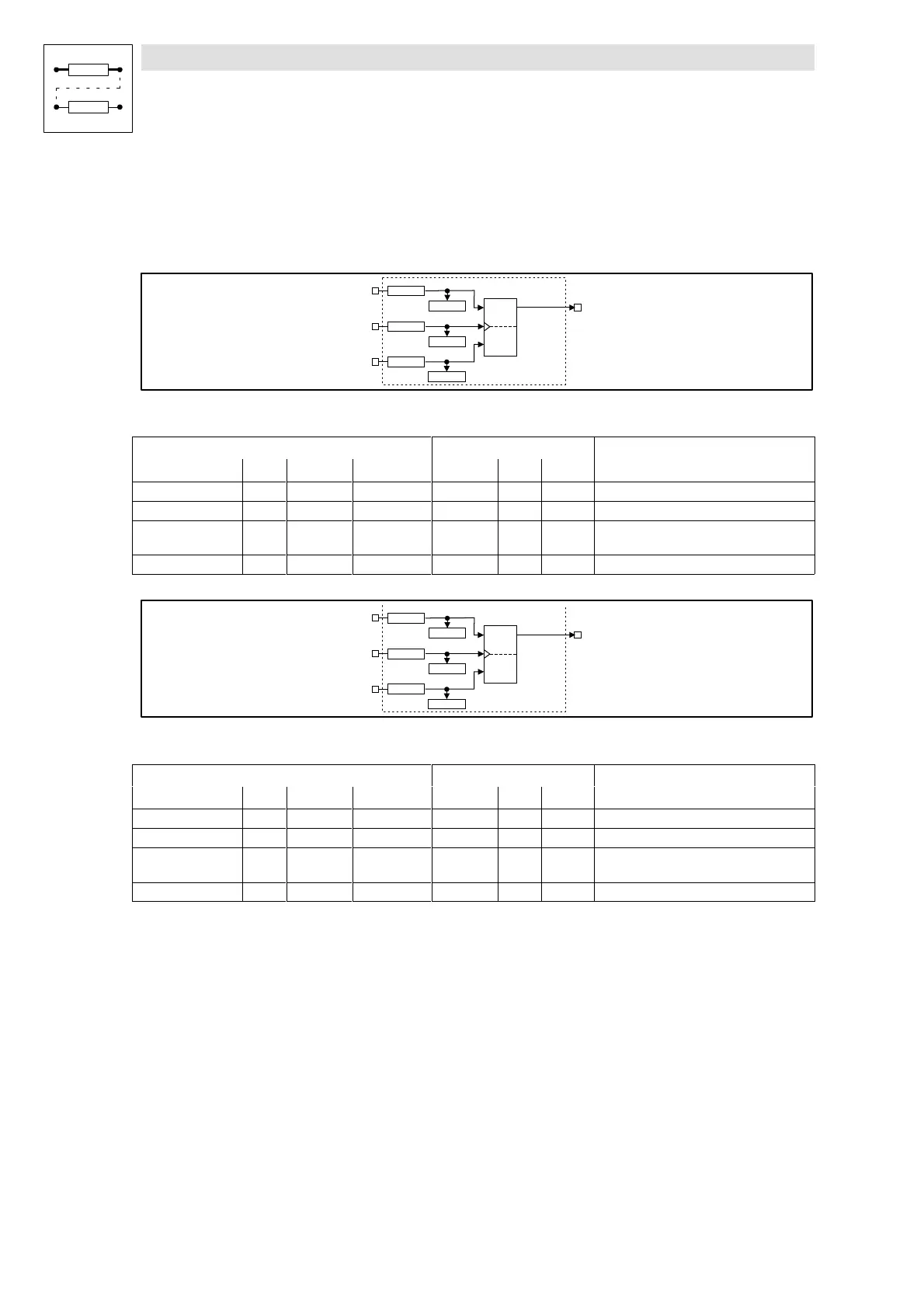

7.6.44 Flipflop (FLIP)
Purpose
This FB is a D flipflop. This function is used to evaluate and save digital signal transitions.
FLIP1-D
FLIP1-CLR
FLIP1
FLIP1-OUT
D
CLR
Q
C0773/1
C0773/3
FLIP1-CLK
C0773/2
C0770
C0771
C0772
Fig. 7-104 Flipflop (FLIP1)
Signal
Source Note
Name Type DIS DIS format CFG List Lenze
FLIP1-D d C0773/1 bin C0770 2 1000 -
FLIP1-CLK d C0773/2 bin C0771 2 1000 evaluates LOW-HIGH edges only
FLIP1-CLR d C0773/3 bin C0772 2 1000 evaluates the input level only: input has hig-
hest priority
FLIP1-OUT d - - - - - -
FLIP2-D
FLIP2-CLR
FLIP2
FLIP2-OUT
D
CLR
Q
C0778/1
C0778/3
FLIP2-CLK
C0778/2
C0775
C0776
C0777
Fig. 7-105 Flipflop (FLIP2)
Signal
Source Note
Name Type DIS DIS format CFG List Lenze
FLIP2-D d C0778/1 bin C0775 2 1000 -
FLIP2-CLK d C0778/2 bin C0776 2 1000 evaluates LOW-HIGH edges only
FLIP2-CLR d C0778/3 bin C0777 2 1000 evaluates the input level only: input has hig-
hest priority
FLIP2-OUT d - - - - - -
