Lenze i510 Series

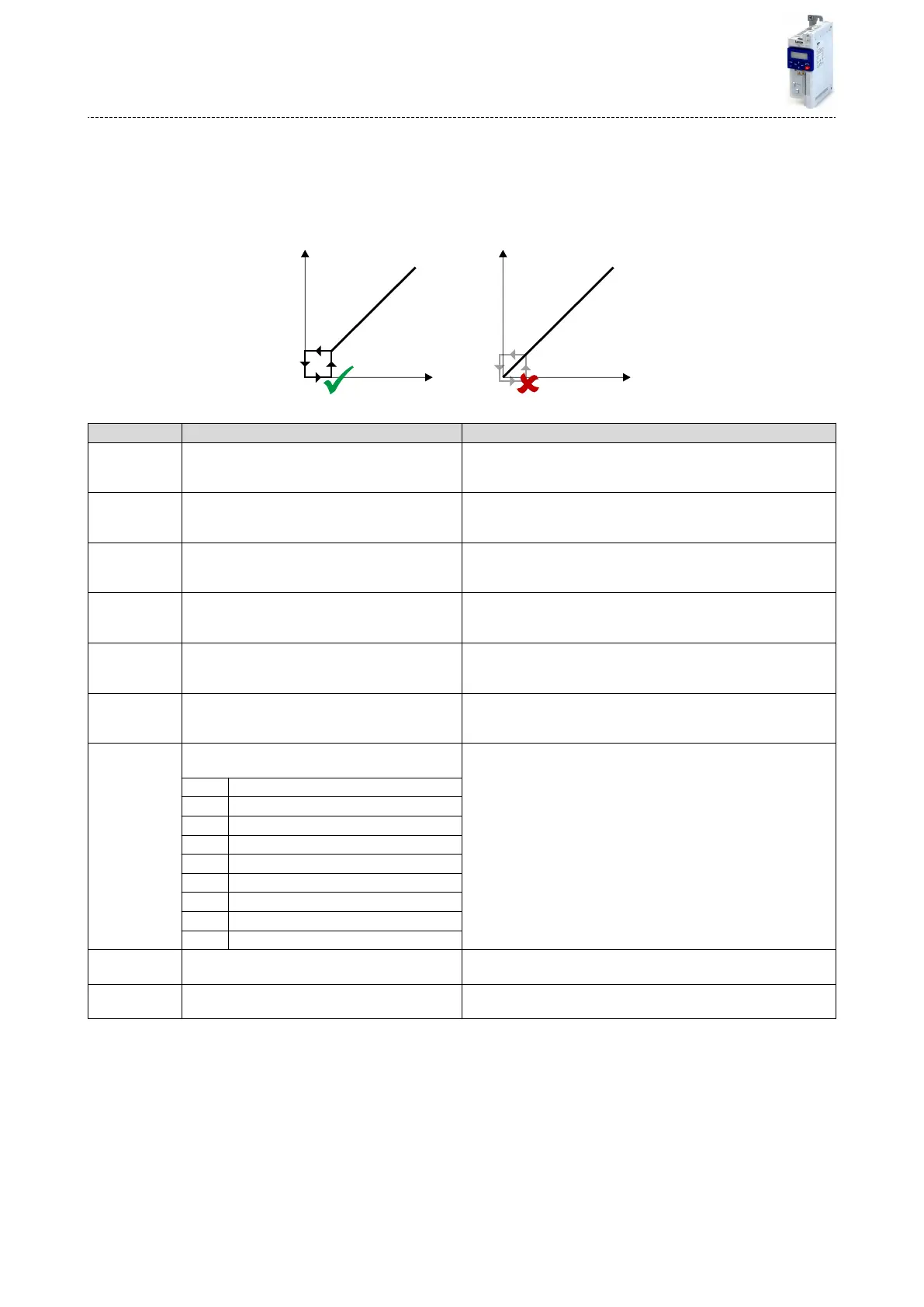

Valid and invalid ranges:
•
Example on the le: Skip frequency = 5 Hz, bandwidth = 10 Hz
à Valid range (starts at ≥ 0)
•
Example on the right: Skip frequency = 4 Hz, bandwidth = 10 Hz
à Invalid range (starts at < 0); is thus ignored.
[Hz]
[Hz]
[Hz]
[Hz]
Output
Input Input
Output
Parameter Name / value range / [default seng] Info
0x291F:001
(P317.01)
Skip frequencies: Skip frequency 1
(Skip frequencies: Skip frequency 1)
0.0 ... [0.0] ... 599.0 Hz
Centre of frequency range 1 which is to be skipped.
0x291F:002
(P317.02)
Skip frequencies: Skip bandwidth 1
(Skip frequencies: Skip bandwidth 1)
0.0 ... [0.0] ... 10.0 Hz
Size of frequency range 1 which is to be skipped.
0x291F:003
(P317.03)
Skip frequencies: Skip frequency 2
(Skip frequencies: Skip frequency 2)
0.0 ... [0.0] ... 599.0 Hz
Centre of frequency range 2 which is to be skipped.
0x291F:004
(P317.04)
Skip frequencies: Skip bandwidth 2
(Skip frequencies: Skip bandwidth 2)
0.0 ... [0.0] ... 10.0 Hz
Size of frequency range 2 which is to be skipped.
0x291F:005
(P317.05)
Skip frequencies: Skip frequency 3
(Skip frequencies: Skip frequency 3)
0.0 ... [0.0] ... 599.0 Hz
Centre of frequency range 3 which is to be skipped.
0x291F:006
(P317.06)
Skip frequencies: Skip bandwidth 3
(Skip frequencies: Skip bandwidth 3)
0.0 ... [0.0] ... 10.0 Hz
Size of frequency range 3 which is to be skipped.
0x291F:016 Skip frequencies: Status
•
Read only
Bit-coded status display of the skip frequencies.
Bit 0 Blocking zone 1 acve
Bit 1 Blocking zone 2 acve
Bit 2 Blocking zone 3 acve
Bit 4 Frequency above blocking zone 1
Bit 5 Frequency above blocking zone 2
Bit 6 Frequency above blocking zone 3
Bit 8 Blocking zone 1 invalid
Bit 9 Blocking zone 2 invalid
Bit 10 Blocking zone 3 invalid
0x291F:032 Skip frequencies: Input frequency
•
Read only: x.xx Hz
Display of the skip lter input frequency.
0x291F:033 Skip frequencies: Output frequency
•
Read only: x.xx Hz
Display of the skip lter output frequency.
Motor control
Opmisaon of motor control
Skip frequencies
132
