Mechanical installation
Standard devices in a power range of 0.25 ... 3 kW
Mounting i n ”cold plate” technique
5

104
EDS84ASC552 EN 10.0
Ambient conditions
ƒ The rated data and the derating factors at increased temperature also apply to the
ambient temperature of the drive controllers.
ƒ Temperature at the cooling plate of the drive controller: max. 75 °C.
 Note!
Apply s tandard heat-conducting paste or heat-conducting foil onto cooler and
cooling plate before you bolt the controller onto the cooler.
StateLine, HighLine
8400GG105c

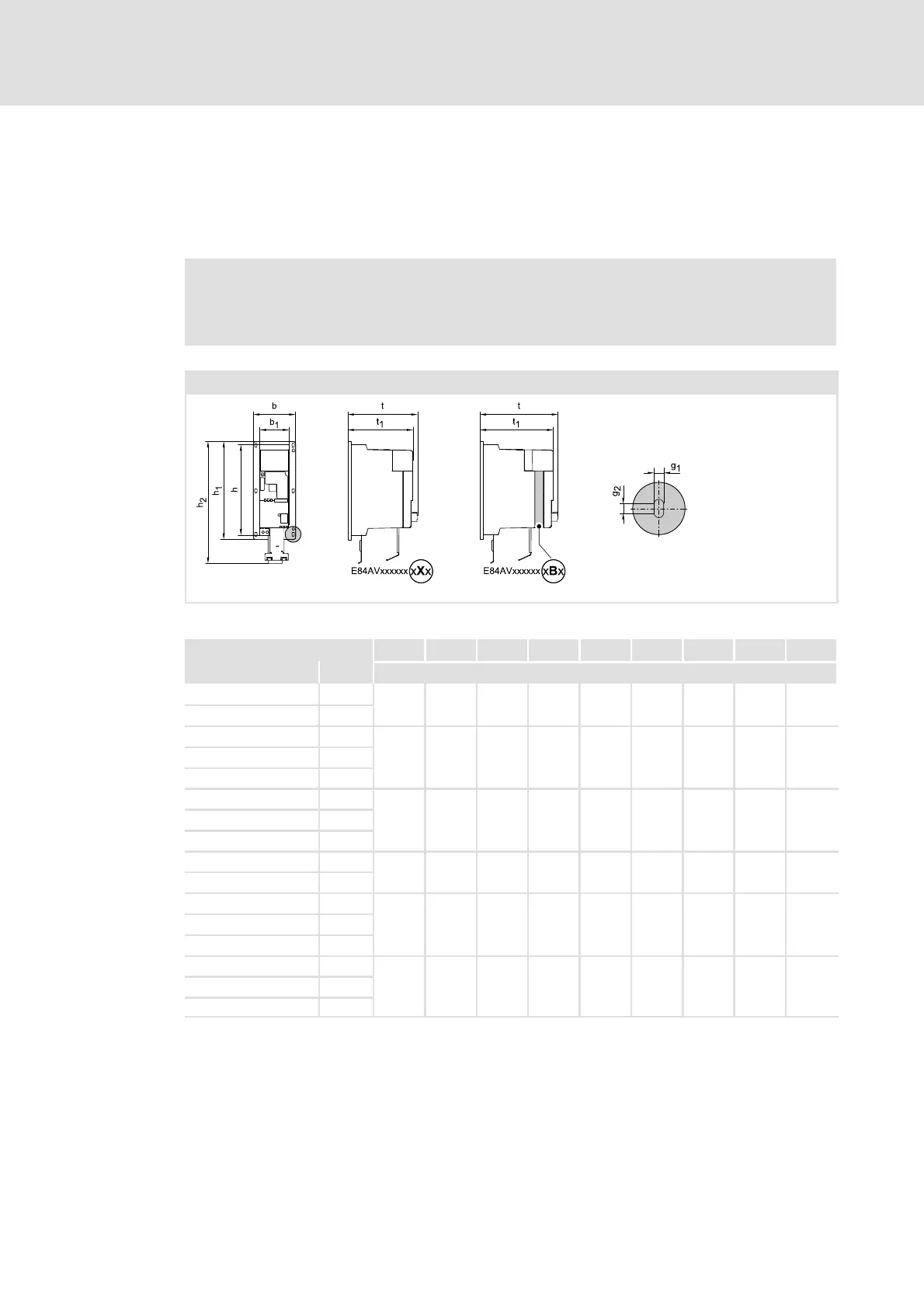

Fig. 5-11 Device dimensions
h b t h
1
h
2
b
1
t
1
g
1
g
2
[kW] [mm]
E84AVxxC2512xX0 0.25
165 102 185 186 226 70 172 6 5
E84AVxxC3712xX0 0.37
E84AVxxC3714xX0 0.37
215 102 163 236 276 70 150 6 5
E84AVxxC551xxX0 0.55
E84AVxxC751xxX0 0.75
E84AVxxC112xxX0 1.1
270 137 163 295 335 70 150 6 5
E84AVxxC152xxX0 1.5
E84AVxxC222xxX0 2.2
E84AVxxC2512xB0 0.25
165 102 205 186 226 70 192 6 5
E84AVxxC3712xB0 0.37
E84AVxxC3714xB0 0.37
215 102 183 236 276 70 170 6 5
E84AVxxC551xxB0 0.55
E84AVxxC751xxB0 0.75
E84AVxxC112xxB0 1.1
270 137 183 295 335 70 170 6 5
E84AVxxC152xxB0 1.5
E84AVxxC222xxB0 2.2
