4.5 Terminal description
4.5.1 Overview

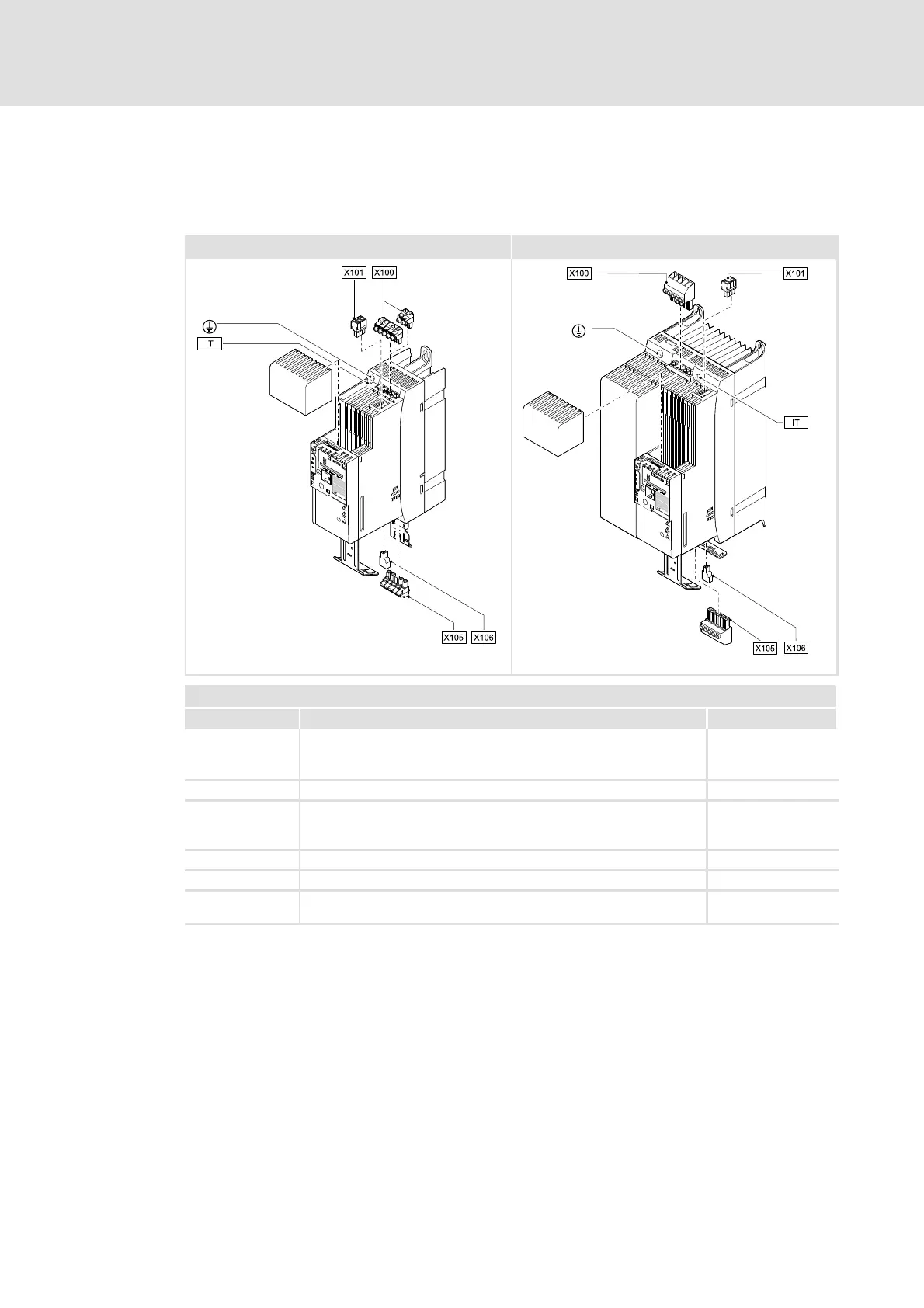

Standard device in device size GG 1 ... 3 Standard device in device size GG 4 ... 6
8400HLC058 8400HLC057
Connection
Pos. Description Number
X100
Mains/DC-bus voltage (for 400V devices)
– For devices in device size 6 (18.5 ... 22 kW) the terminal strip is
not pluggable.
1
X101 Relay output 1
X105
Motor/external brake resistor
– For devices in device size 6 (18.5 ... 22 kW) the terminal strip is
not pluggable.
1
X106 Motor temperature monitoring 1
 PE conductor (on the supply side/on the motor side) 2
IT
Contact screw for interference suppression (on the supply side/on the
motor side)
2
