Electrical installation
HighLine C control terminals
External supply voltage 24 V
6

230
EDS84ASC552 EN 10.0
6.8 HighLine C control terminals
6.8.1 External supply voltage 24 V
X5
24 V int.
50 mA
24EDI1DI2
DI3
DI4
RFR
DC 24 V
(+19.2...
+28.8 V)
S1
2.7k
2.7k
3.3k
3.3k
3.3k
X5
GND-I
DI5
DI6
DI7
GI
24I
1.6k
1.6k
3.3k
8400HLC036 8400HLC045

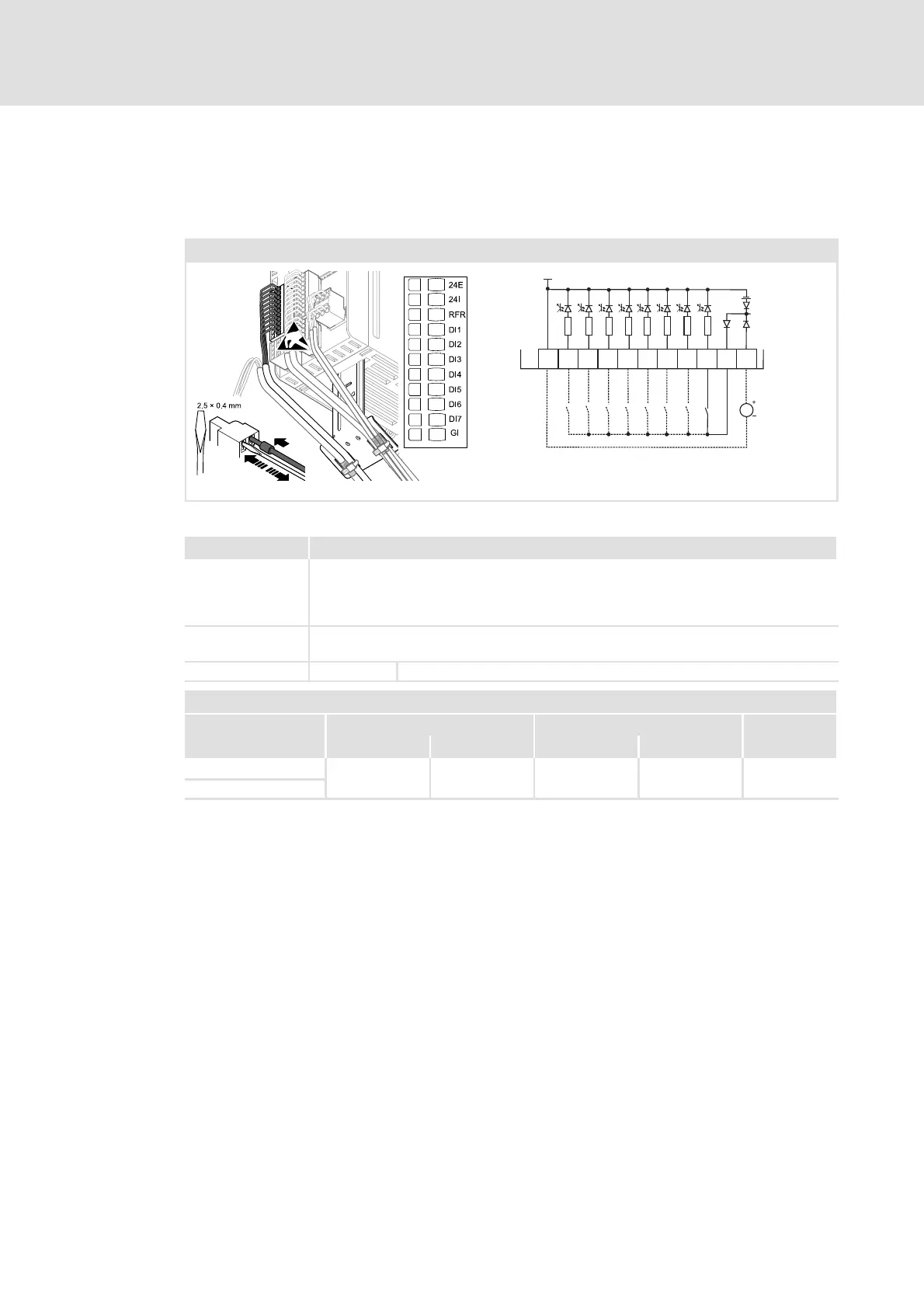

Fig. 6-38 Connection to an external supply voltage
Labelling Description
24E Connection for an external 24 V supply by a safely separated power supply
unit (SELV/PELV), IEC 61131-2
(required for mains-independent supply of the control electronics and the communication
module)
24I Output 24 V, max. 50 mA
for connection of digital inputs via potential-free contacts
GI GND-I Ground reference potential for the digital inputs
Terminal data
Conductor cross-section Tightening torque

[mm
2
] [AWG] [Nm] [lb-in]
Flexible
0.2 ... 1.5
24 ... 16 - - -
With wire end ferrule
