Lenze L-force E84A Series - Terminal Assignment of the Power Connections

Electrical installation
Devices i n a power range of 30 ... 45 kW (3/PE AC 400 V)
Terminal assignment of the power connections
6

202
EDS84ASC552 EN 10.0
6.5.2 Terminal assignment of the power connections
Preparing the cable installation
Toconnectthe shield ofthe motor cable, usethe shield lug ofthe rear shield sheet.Position
the shield sheet as follows:
1. Release the holding screw of the shield s heet.
2. Bring the shield sheet into the lock-in position.
3. Tighten the holding screw to lock the shield sheet.

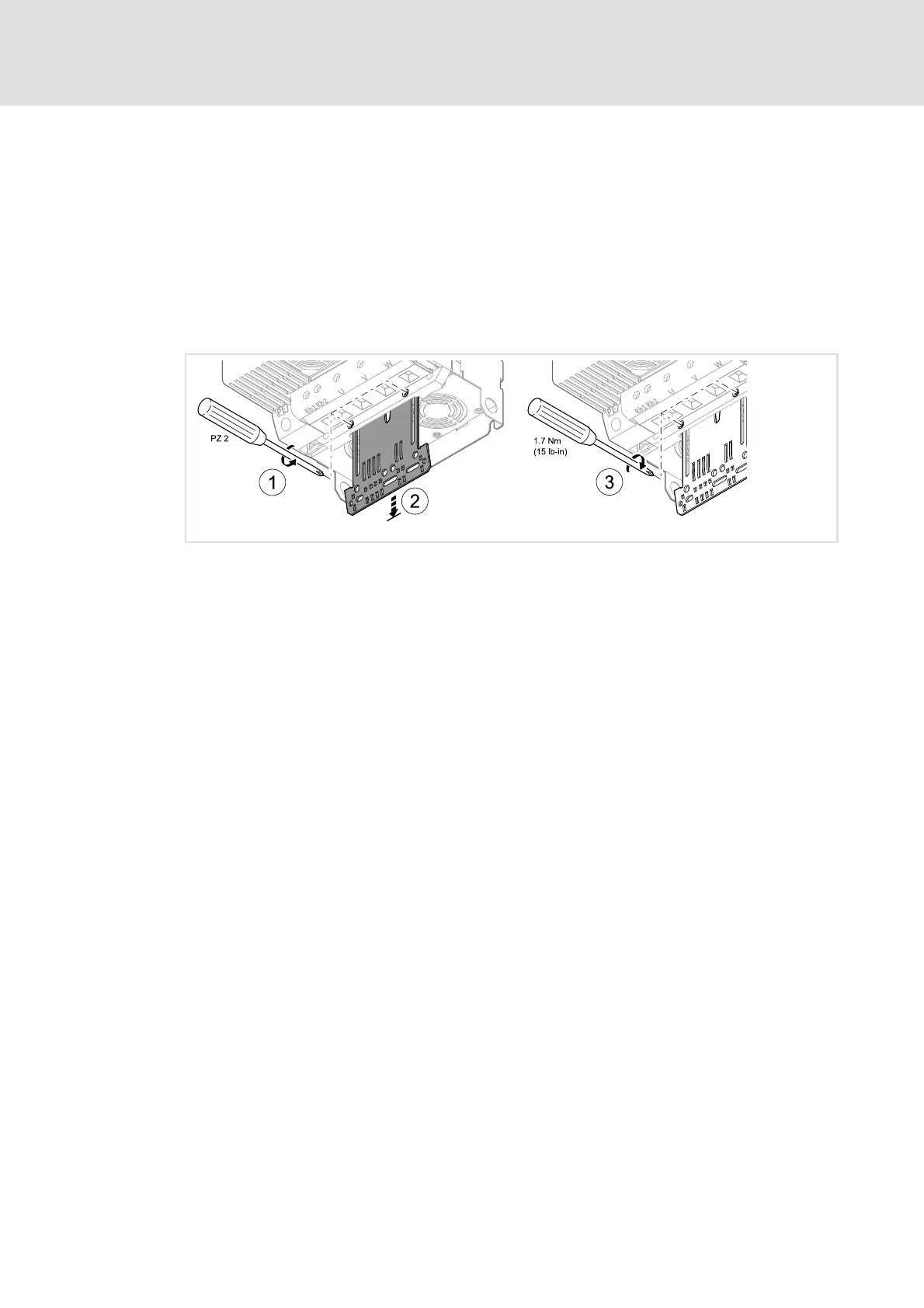

8400GG093
Fig. 6-22 Locate shield sheet in position
