Lenze L-force E84A Series - Analog Inputs and Outputs

Electrical installation
HighLine C control terminals
Analog inputs and o utputs
6

232
EDS84ASC552 EN 10.0
6.8.2 Analog inputs and outputs
X3
GND-A
X3
A2I
O2I
A2U
O2U
A1I
O1I
A1U
O1U
AR
GA
+10 V /
10 mA
0...10V
1k ... 10k
0 ... 10 V
"
8400HLC034 8400HLC012

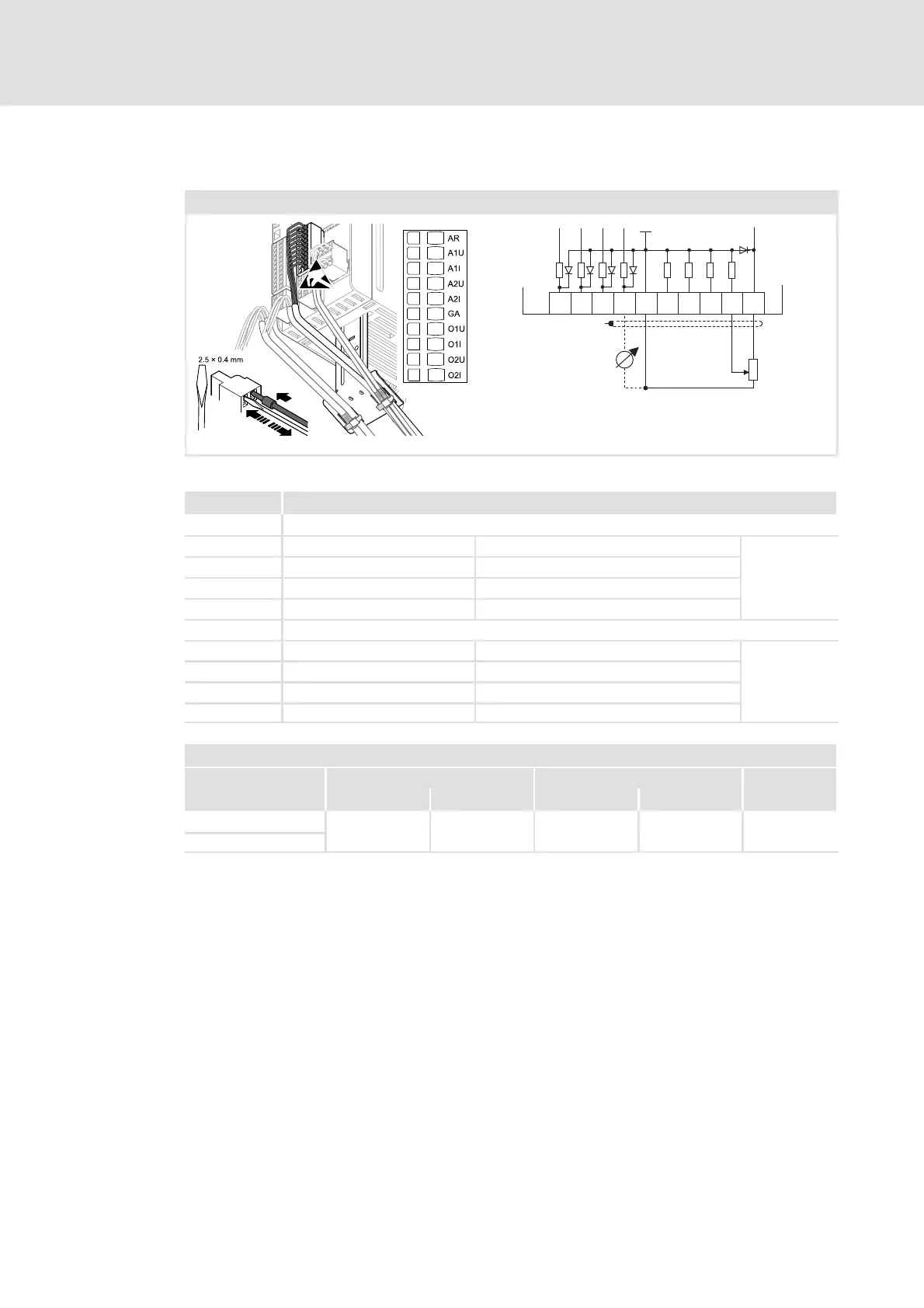

Fig. 6-40 Connection of the analog inputs and outputs
Labelling Description
Controller Reference voltage 10 V
A1U Analog voltage input 1 10 V
 81
A1I Analog current input 1 0 ...+20 mA/+4 ...+20 mA
A2U Analog voltage input 2 10 V
A2I Analog current input 2 0 ...+20 mA/+4 ...+20 mA
GA GND analog signals
O1U Analog voltage output 1 0 ... +10V
 81
O1I Analog current output 1 0 ...+20 mA/+4 ...+20 mA
O2U Analog voltage output 2 0 ... +10V
O2I Analog current output 2 0 ...+20 mA/+4 ...+20 mA
Terminal data
Conductor cross-section Tightening torque

[mm
2
] [AWG] [Nm] [lb-in]
Flexible
0.2 ... 1.5
24 ... 16 - - -
With wire end ferrule
