Overview of control terminals
3

23
EDS84ASC552 EN 10.0
3.3 Overview of control terminals

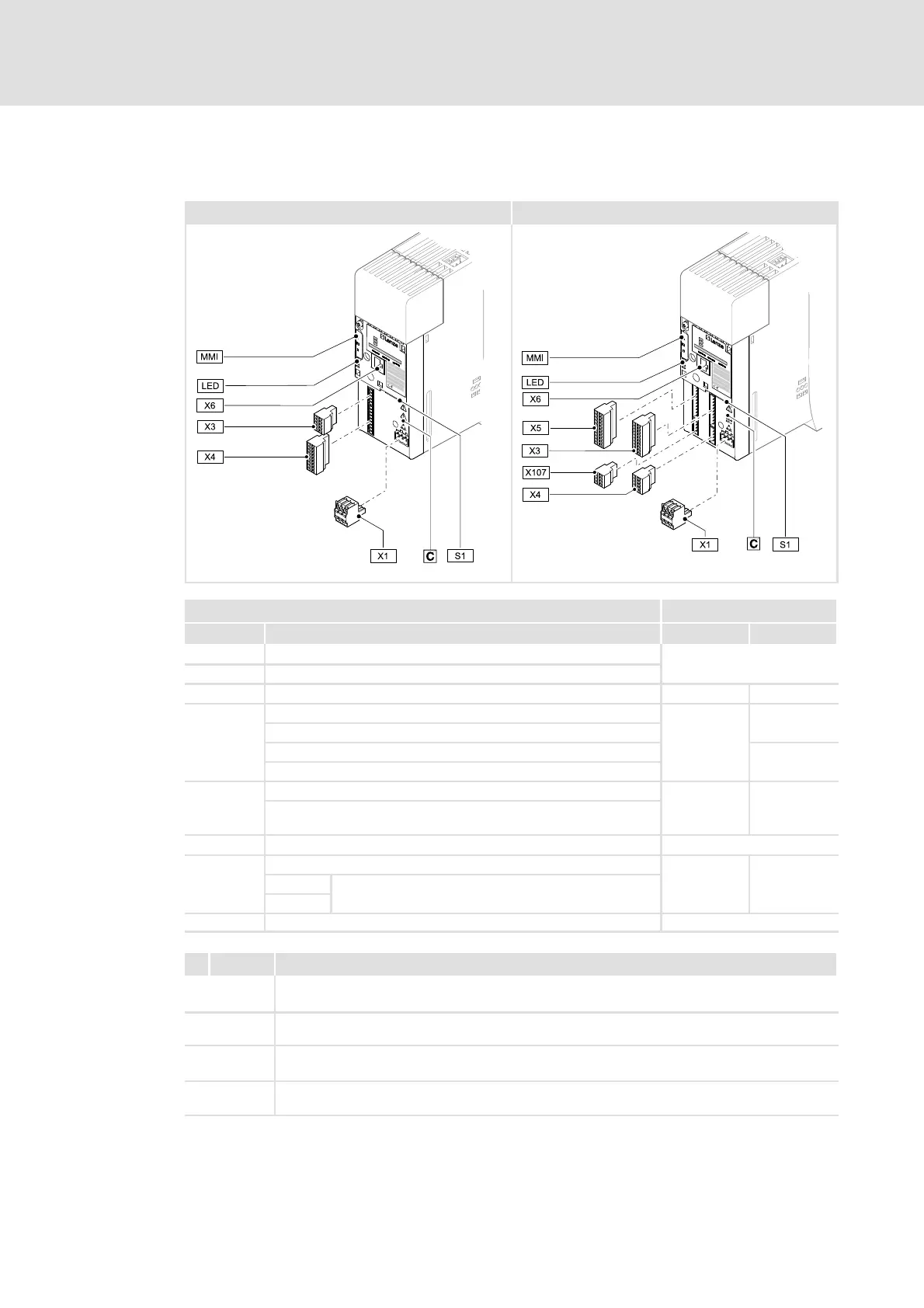

Control terminals for devices in the StateLine version Control terminals for devices in the HighLine version
8400HLC080a 8400HLC081a
Connection Information
Pos. Description StateLine C HighLine C
X1 CANopen connection
 215
S1
CANopen settings
X3 Analog inputs/outputs; 10V reference voltage  225  232
X4
Digital inputs; controller enable
 236
-
24 V supply of the control electronics
Digital outputs
 236
24 V voltage ou tput
X5
Digital inputs; controller enable
-  235
External 24V supply of the control electronics; internal 24V supply
fused via PTC
X6 (DIAG) Diagnostic interface  223
X107
24 V brake supply;
-  238
+BD1
Connection for DC brake coil
-BD2
MMI Slot for memory module (Memory Module Interface)  295
 Icon Description

Long discharge time: All power terminals remain live for a few minutes after mains
disconnection! The duration is given under the warning symbol on the device.

High leakage current: Carry out fixed installation and PE connection according to EN 61800-5-1!

Electrostatic sensitive devices:Beforeworkingonthedevice,thepersonnelmustbefreeof
electrostatic charge!

Hot surface: Risk of burns! Hot surfaces should not be touched without wearing protective
gloves.
