Lenze L-force E84A Series - Page 22

Product description
Overview of standard devices
3

22
EDS84ASC552 EN 10.0

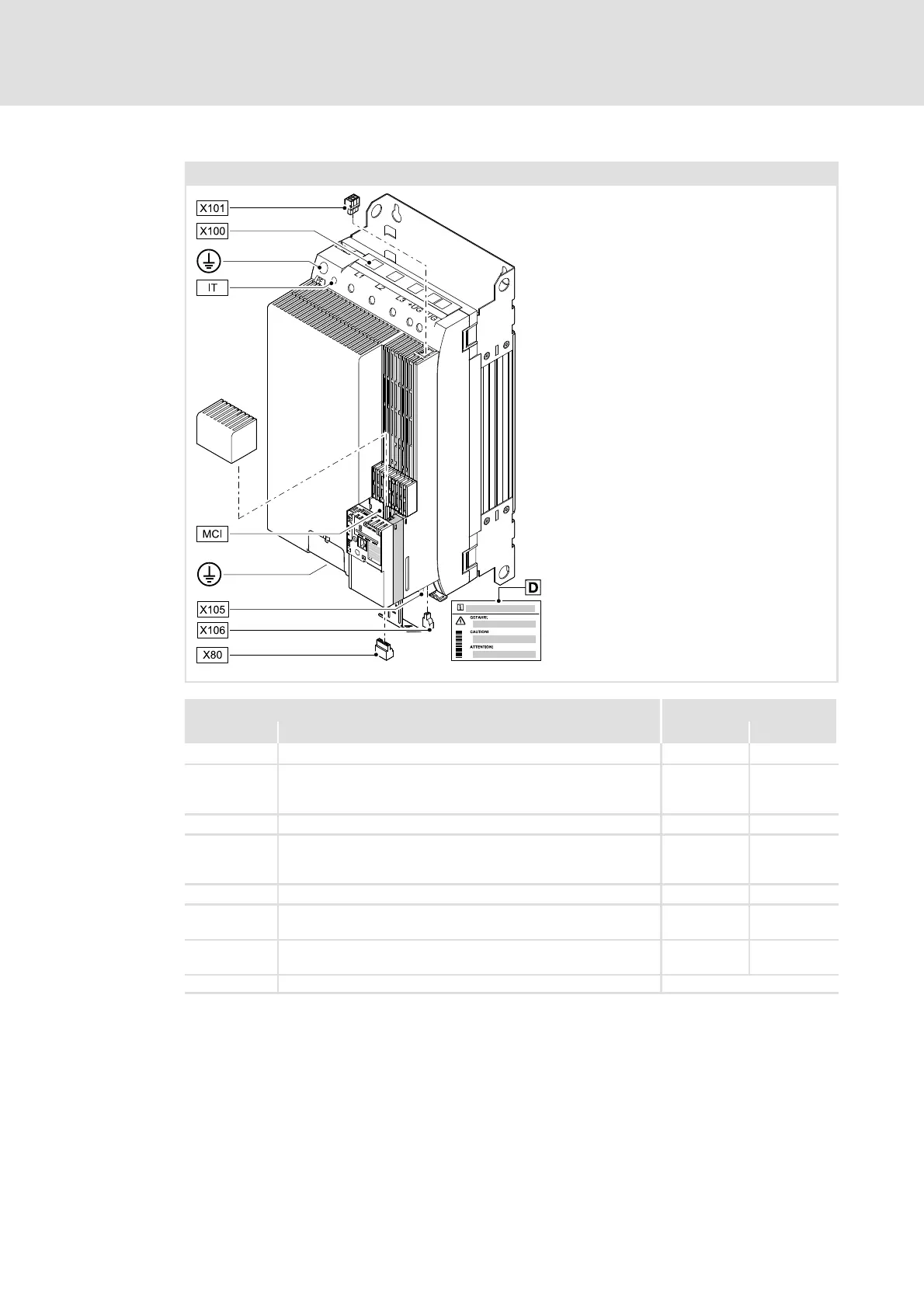

Standard device in device size GG 7
8400GG100
Connection Information
Pos. Description 230 V 400 V
X80 Terminal strip for the integrated safety unit -  272
X100 Mains/DC-bus voltage (for 400 V devices)
– For devices of device size 7 (30 ... 45 kW) this terminal strip is
not pluggable.
-  204
X101 Relay output -  221
X105 Motor/external brake resistor
– For devices of device size 7 (30 ... 45 kW) this terminal strip is
not pluggable.
-  208
X106 Motor temperature monitoring -  209
IT Contact screw for interference suppression (on the supply
side/on the motor side)
-  206
MCI Slot for communication module (Module Communication
Interface)
-  296
 Sticker with w arning -
