6.6.3 Connection of relay output
X101
NC
COM
X101
NO
8400GG009 8400GG010

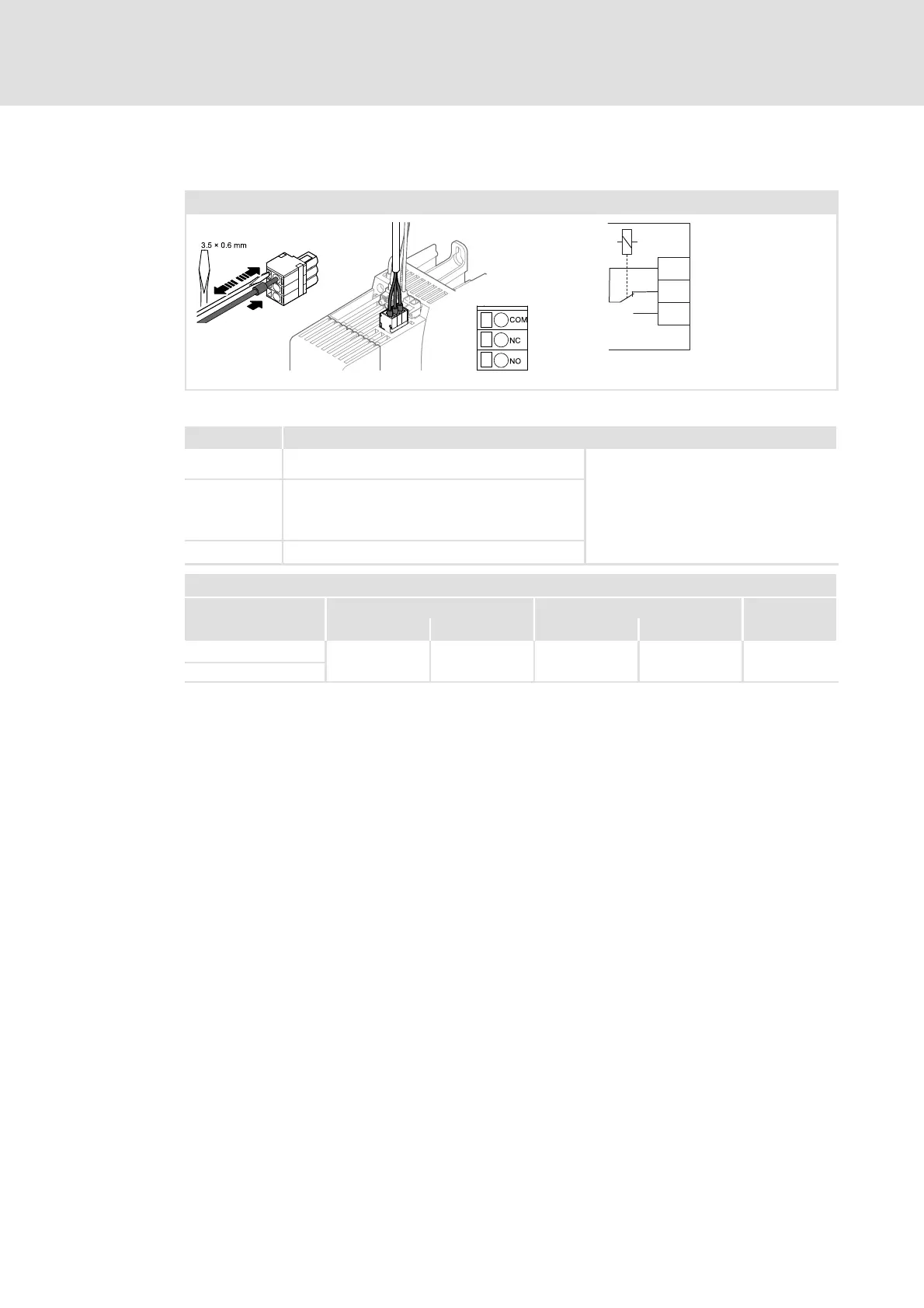

Fig. 6-32 Wiring of the relay outputs
Labelling Description
COM Central contact of relay
AC 250 V, 3 A
DC 24V, 2A
DC 240 V, 0.16 A
 According to UL508C:
– 3 A, 250 V AC (general purpose)
– 2 A, 24 V DC (resistive)
– 0.16 A, 240 V DC (general purpose)
NC Relay output NC (normally closed)
Position is displayed via TRIP software message
(Lenze setting)
NO Relay output NO (normally open)
Terminal data
Conductor cross-section Tightening torque

[mm
2
] [AWG] [Nm] [lb-in]
flexible
0.2 ... 1.5
24 ... 16 - - 3.5 x 0.6
with wire end ferrule
