Technical data
Terminal description
Overview
4

74
EDS84ASC552 EN 10.0

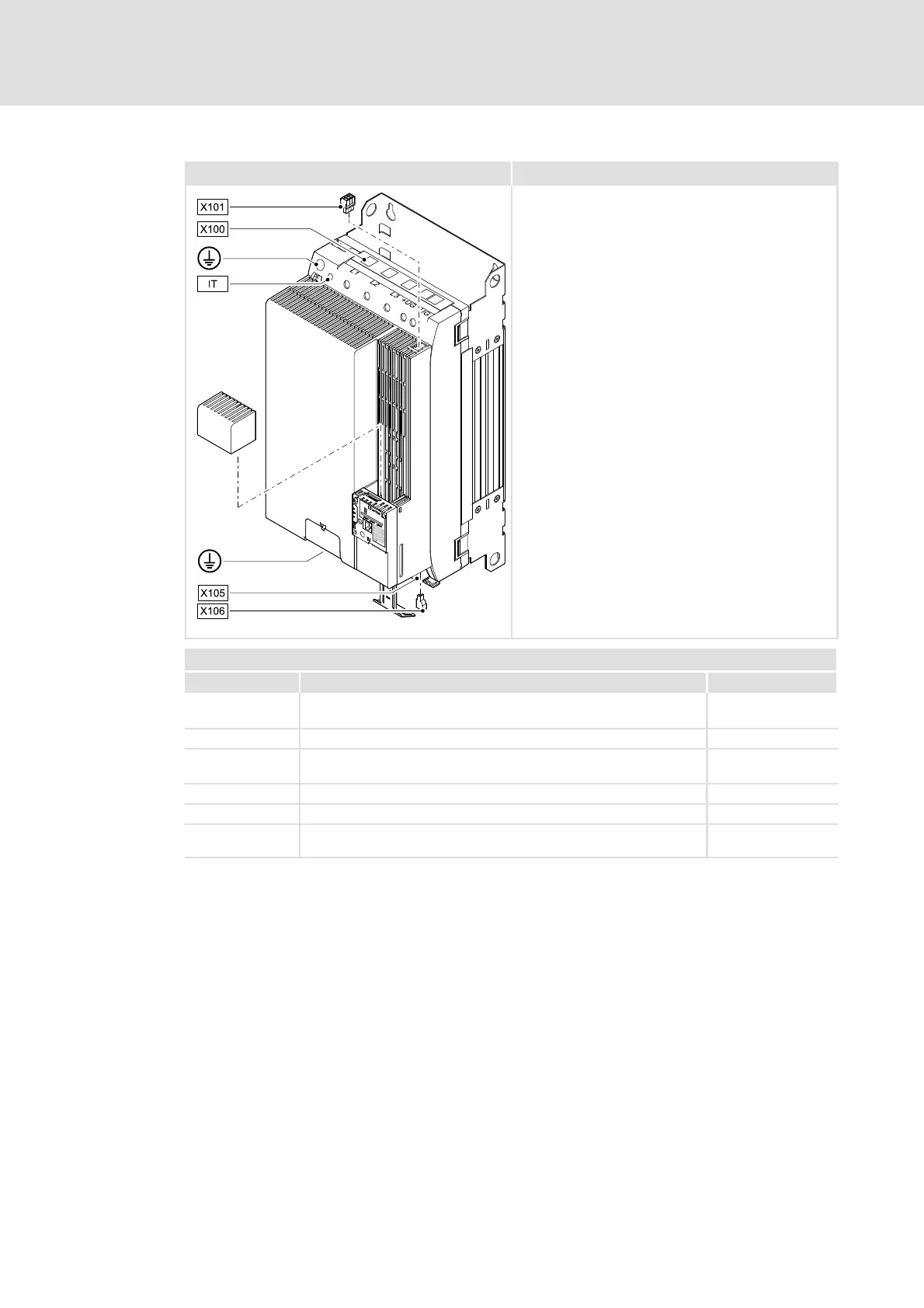

Standard device in device size GG 7
8400GG101
Connection
Pos. Description Number
X100
Mains/DC-bus voltage
– n on-pluggable.
1
X101 Relay output 1
X105
Motor/external brake resistor
– n on-pluggable.
1
X106 Motor temperature monitoring 1
 PE conductor (on the supply side/on the motor side) 2
IT
Contact screw for interference suppression (on the supply side/on the
motor side)
2
