Mechanical installation
Standard devices in t he power range 3 ... 22 kW
Filter mounting variant
5
119
EDS84ASC552 EN 10.0
Filter mounting variant
The mounting location and material must ensure a durable mechanical connection.
ƒ Screw and washer assemblies or hexagon socket screws with washers are
recommended..
Tip!
The scope of supply of the filter comprises mounting instructions. They
describe technical data and information on mechanical and electrical
mounting of this accessory part.
Assignment
RFI filter
Type SD LD LL
E84AVxxx3024xx0
E84AZESR5524SD
E84AZESR5524LD -
E84AVxxx4024
E84AVxxx5524
E84AVxxx7524
E84AZESR1534SD E84AZESR1534LD -
E84AVxxx1134
E84AVxxx1534
E84AVxxx1834 - E84AZESR1834LD -
E84AVxxx2234 - E84AZESM2234LD -
1)
Mains filter (mains choke with RFI filter)
E84ZESR023

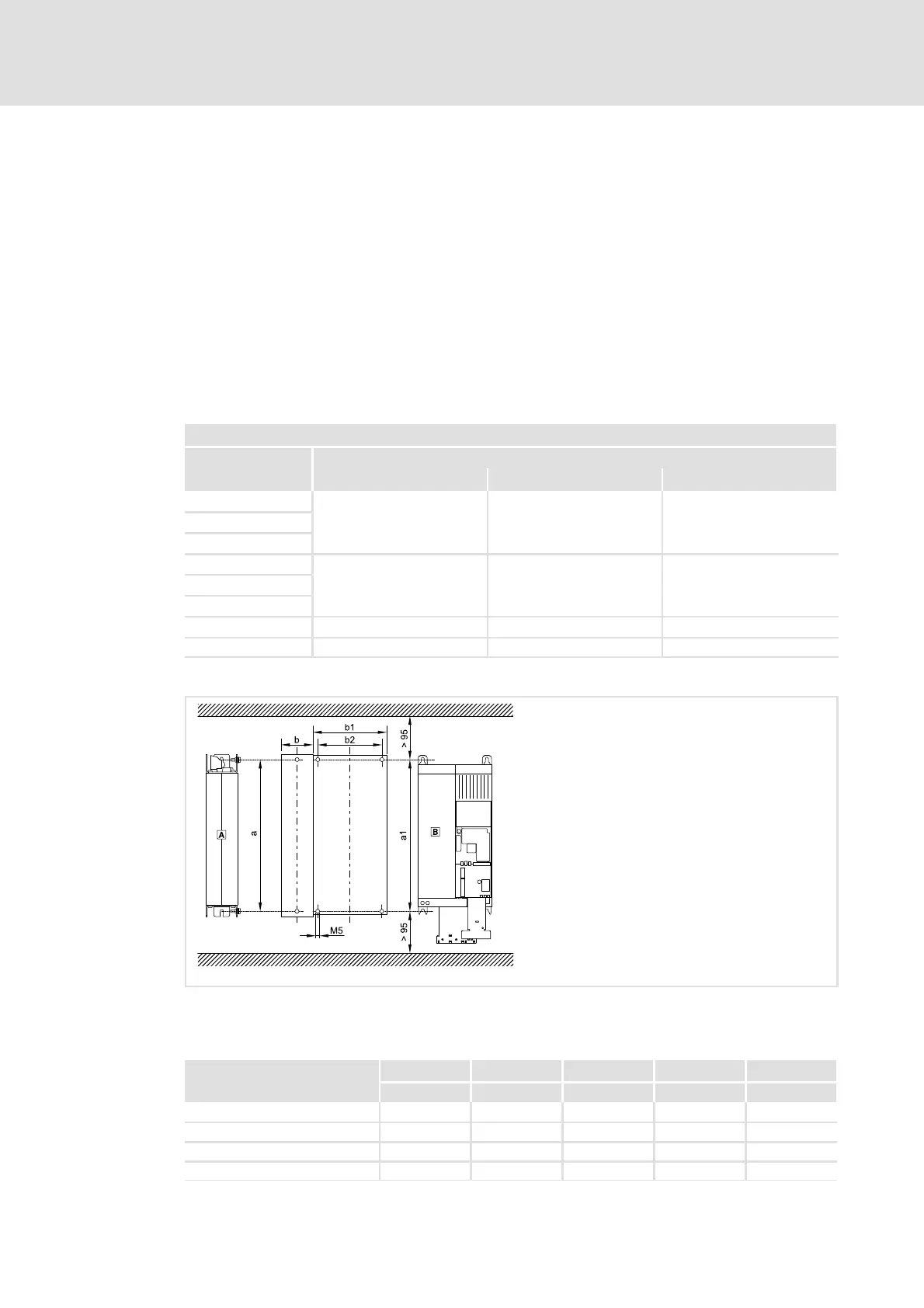

Side-by-side filter
Standard device
T
e
a a1 b b1 b2
[mm] [mm] [mm] [mm] [mm]
E84AZESR5524xx 285 285 60 140 120
E84AZESR1534xx 340 340 60 140 120
E84AZESM1834xx 415 340 90 205 180
E84AZESM2234xx 415 340 90 205 180
