Lenze L-force E84A Series - Page 144

Mechanical installation
Standard devices in a power range of 30 ... 45 kW

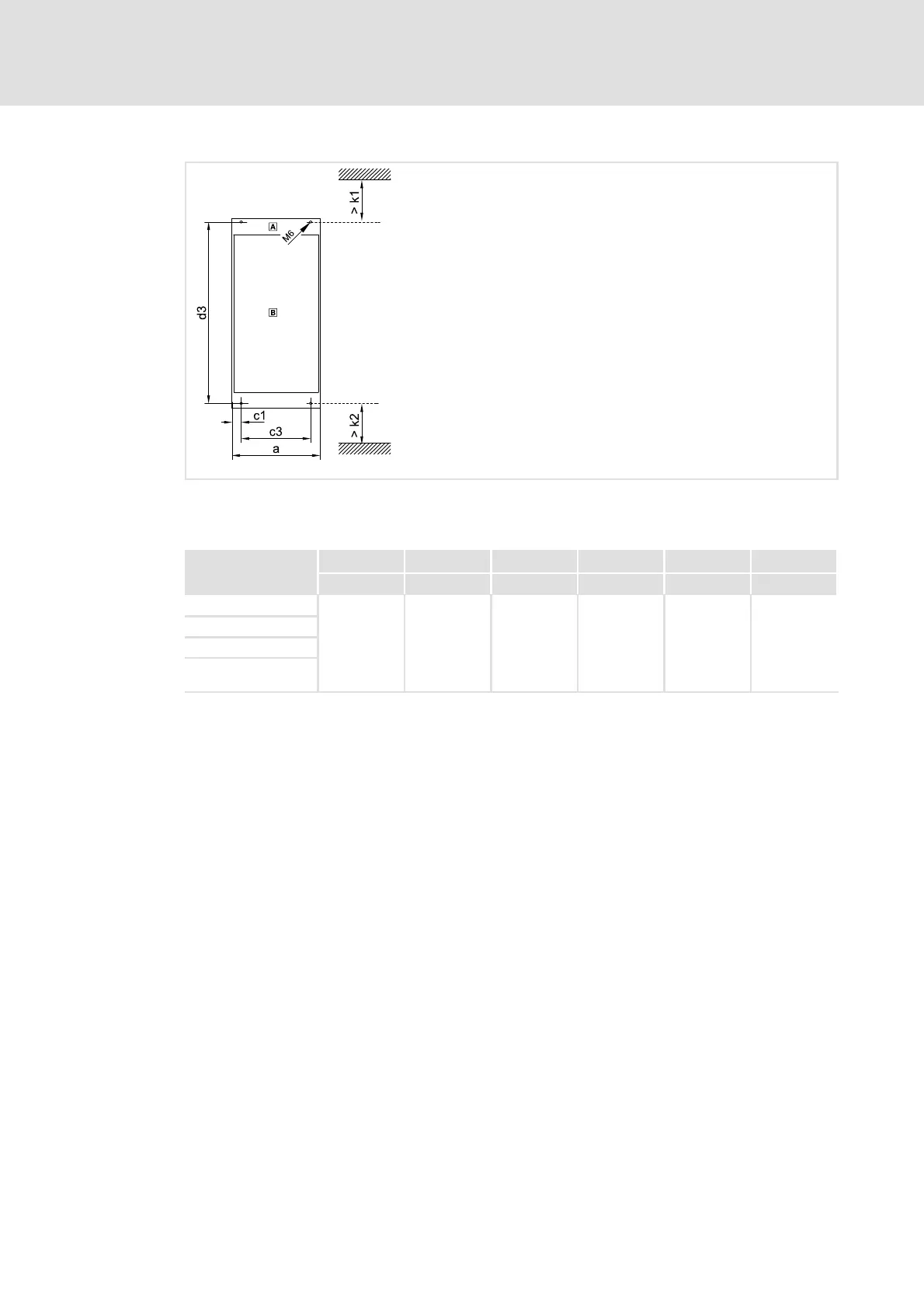

Filter mounting in ”standard” technique
5

144
EDS84ASC552 EN 10.0
E84AZESx003

Side-by-side filter

Standard device
a c1 c3 d3 k1 k2
[mm] [mm] [mm] [mm] [mm] [mm]
E84AZESM3034LD
250
20 210 570 55 60
E84AZESM3734LD
E84AZESM4534LD
E84AZESM4534LDN0
01
