Mechanical installation
Standard devices in a power range of 30 ... 45 kW
Mounting i n ”cold plate” technique
5

149
EDS84ASC552 EN 10.0
StateLine, HighLine
8400GG108b

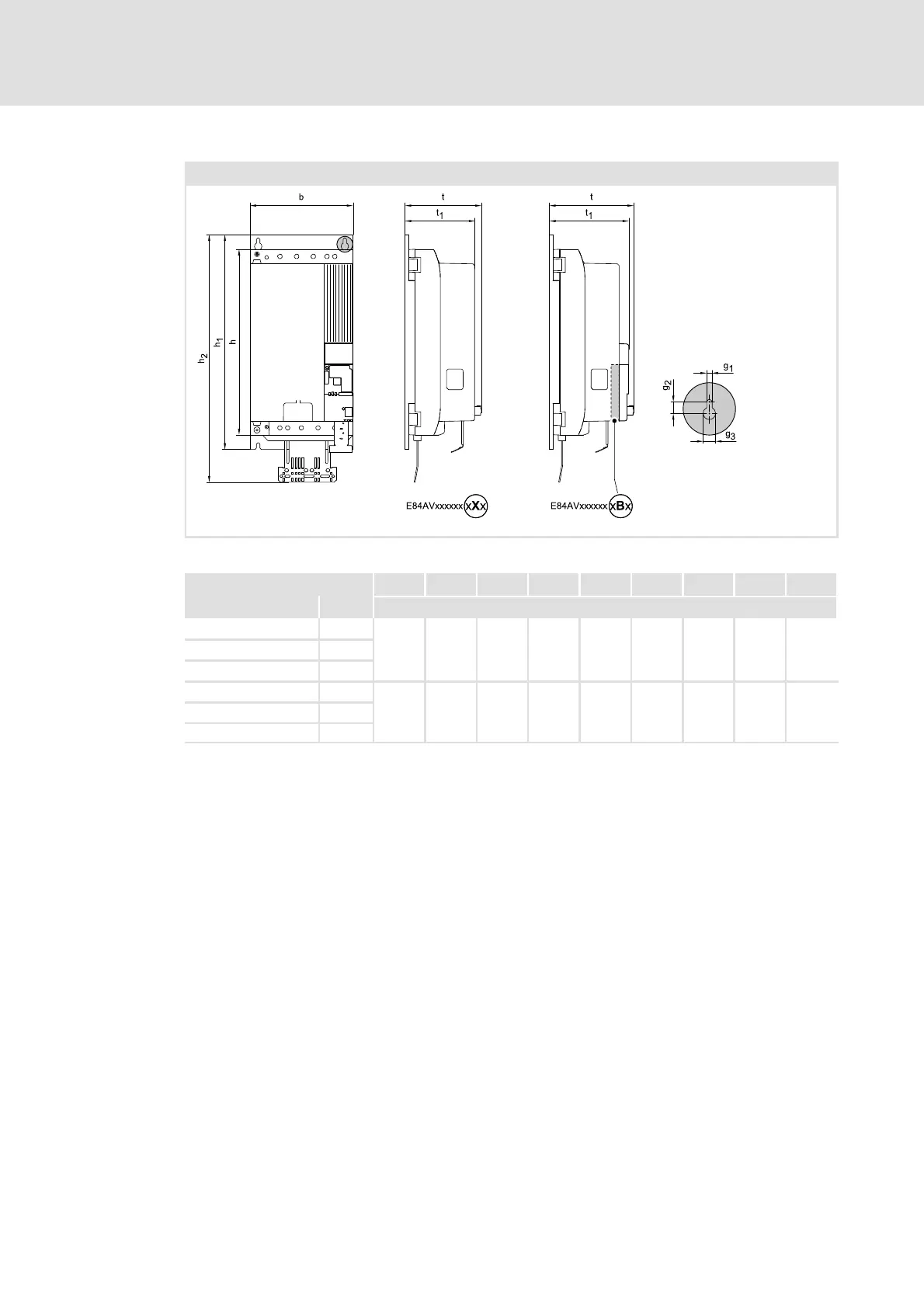

Fig. 5-45 Device dimensions
h b t h
1
h
2
t
1
g
1
g
2
g
3
[kW] [mm]
E84AVxxC3034xXx30
450 250 184 520 636 171 8.5 16 18
E84AVxxC3734xXx 37
E84AVxxC4534xXx 45
E84AVxxC3034xBx 30
450 250 204 520 636 191 8.5 16 18
E84AVxxC3734xBx 37
E84AVxxC4534xBx 45
